New Luxurious type Dongfeng 12000L water spray truck

Payment Type: L/C,T/T
Incoterm: FOB,CIF,EXW
Min. Order: 1 Set/Sets
Delivery Time: 20 Days

Basic Info

Model No.: CLW5161GSSD5

Transmission Type: Manual

Emission Standard: Euro 3

Sprinkling Area: >16m

Drive Wheel: 4×2

Certification: CCC, ISO9000

Engine Type: 4 Stroke

Fuel: Diesel

Condition: New

Volume: 10001 - 15000L

Engine Capacity: 4 - 6L

Payload: 30T

Chassis Brand: DONGFENG

Additional Info

Packaging: Nude packing,Waxing before shipping

Productivity: 30000sets/year

Brand: CLW

Transportation: Ocean,Land

Place of Origin: CHINA

Supply Ability: 3000sets/month

Certificate: SGS,ISO9001, CNAS,CCC

HS Code: 8705909990

Port: SHANGHAI PORT,CHINA

Product Description

New Luxurious type Dongfeng 12000Litres water spray truck

Water spray trucks are designed to transport and supply water, whatever industrial or agriculture water, widely used in construction engineering, farm irrigation, draught relief, etc,  with non-toxic treatment inside tank or tank made of stainless steel, the water tank truck can be suitable for transporting drinking water, called as potable water tanker, drinking water tanker, stainless steel water tanker, agua potavelsafe to human body.


Water trucks can also be equipped with special sprayers to achieve front flush, rear sprinkle, side spray, to sprinkle and clean the roads, streeets for environmental sanitation and protection, called as water sprinkler, water spray truck,
with rear working platform and high cannon, the Water lorry can also be used to water the plants, even high trees in virescence, called as watering truck.


Water delivery truck can be also equipped with pesticide spraying machine or fire pump, to be used to spray pesticide in agriculture pest control field or fire fighting in emergency rescue.


.What the right water spray truck can do for your business:

  • Dongfeng chassis, perfect performance
  • Chinese top engine, super powerful; reliable performance, no overhaul within 100,000km
  • High quality , nice shape, rational structure
  • Extremely reliable with reduced running cost
  • Full spare parts backup and after sales support



SPECIFICATIONS :

Dongfeng spray truck (12,000 litres)
General Vehicle Brand CLW
Chassis Brand DONGFENG
Overall Dimension 8400 * 2480 * 3200 mm
GVW / Kerb Weight 15,800 kg / 6,800kg
Cab Cab Capacity 3 persons allowed, with one sleeper
Air Conditioner W/ air conditioner
Engine Fuel Type Diesel
Engine Brand Cummins engine
Power 180 Hp (132 KW)
Displacement 5900 ml
Emission Standard Euro III or V
Chassis Drive Type 4X2, left or right hand drive
Transmission 6 speed gear box, no overhaul within 500,000km
Wheelbase/No. of axle 4700 mm / 2
Tyre Specification 10.00R20
Tyre Number 6 tyres and 1 spare tyre
Max Speed 90 km/h
Paint Metallic paint
Superstructure Tank Capacity 12,000 Litres ( About 3,600 gallons)
Tank Material Carbon steel
Flow Speed 1000 litres / min
Delivery Head 60 m
Suction Head 7 m
Hose High quality PVC hose, anti-aging
All other standard accessories: manhole, ladder, inlet, discharge--.
Optional ** Tank material could be stainless steel or carbon steel with non-toxic treatment for potable water, safe for human body.


DETAILS :

Dongfeng water spray truck in action

water spray truck  in action 1

water spray truck  in action 2

water spray truck  in action 3

water spray truck  in action 4


Dongfeng water spray truck parts' details

water spray truck details 1

water spray truck details 2

water spray truck details 3

water spray truck details

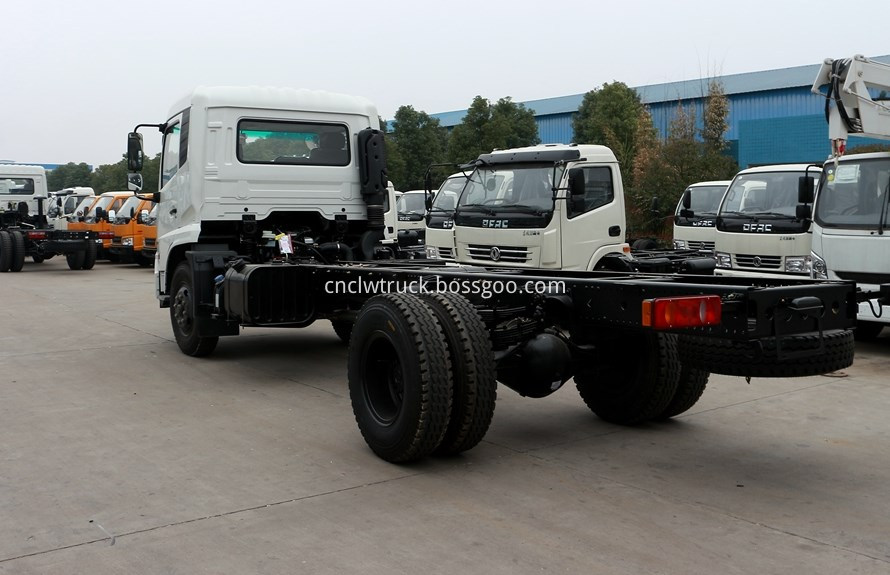

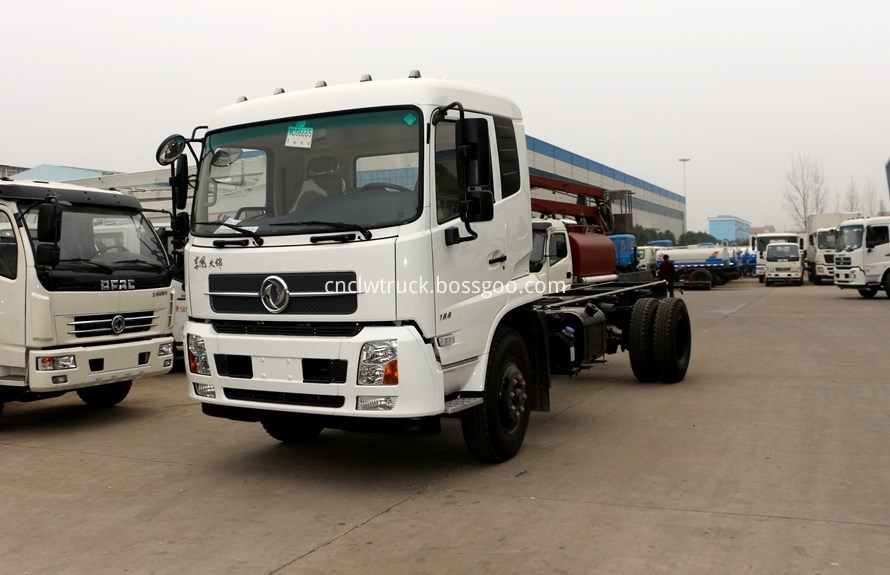

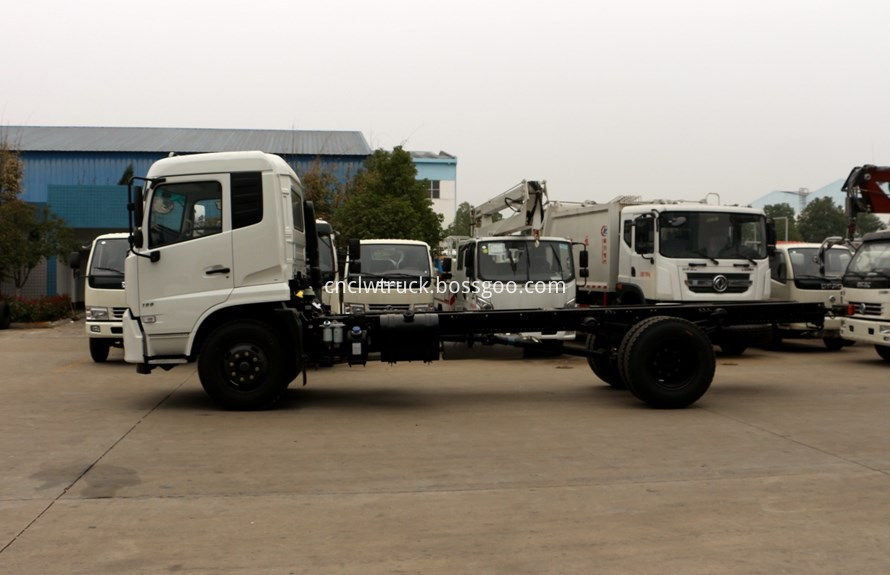

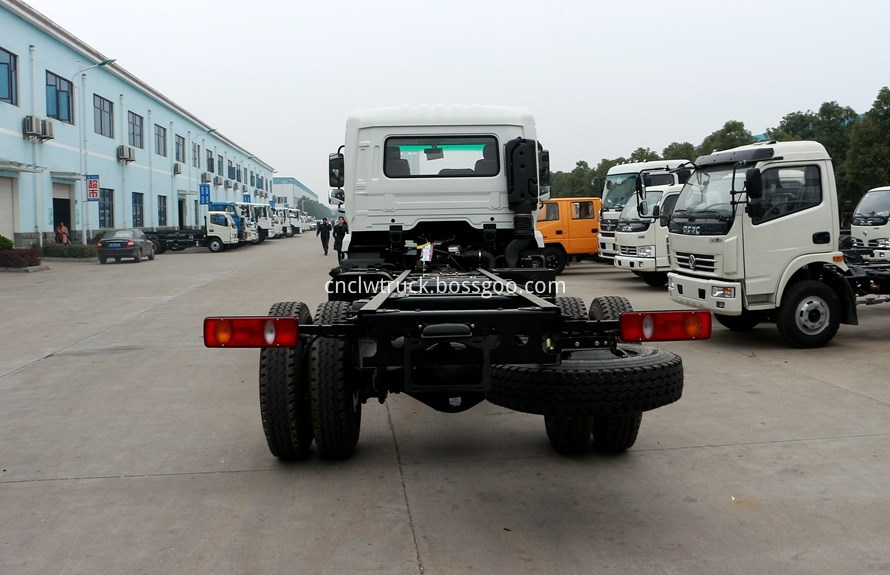

Dongfeng water spray truck chassis's pictures

water spray truck  chassis 1

water spray truck  chassis 2

water spray truck  chassis 3

water spray truck  chassis 4



Dongfeng water spray truck can be equipped with following options


optional equipments



Dongfeng water spray truck structural  composition

Water Truck Structure

Dongfeng water spray truck parts' details

Water Truck Body Spec



What we can supply for you:

  • Water truck
  • Pesticide spraying truck
  • Trash trucks
  • Fuel tanker, Semi trailer, LPG tanker, Chemical liquid tanker, Milk tanker...
  • Fire fighting trucks
  • Aerial working platform trucks
  • Road sweepers
  • Road wreckers
  • Crane trucks
  • Concrete mixer trucks
  • Refrigerated trucks
  • Van trucks
  • LED adversting trucks
  • Sewage vacuum trucks
  • All wheel drive trucks, 4X4 trucks, 6X6 trucks ....
  • any other special purpose vehicles..


We are chinese top one brand new special purpose trucks manufacturer, we have over 15 years production experiences and more than 8000 employees, export volume per year 60,000,000 dollars, 3000set/year.

Welcome to visit us and looking forward to bulid a long win-win business cooperation.
