| Payment Type: | L/C,T/T |
|---|---|
| Incoterm: | FOB,CIF,EXW |
| Min. Order: | 1 Set/Sets |
| Delivery Time: | 25 Days |
Basic Info
Model No.: CLW5250ZXXD4
Type: Roll Off
Certification: CCC, ISO9000
Volume: ＞15000L
Emission Standard: Euro 4
Transmission Type: Manual
Engine Type: 4 Stroke
Payload: 30T
Fuel: Diesel
Drive Wheel: 6×4
Brand: Dongfeng
Models: Large
Usage: Arm Type
Condition: New
Additional Info
Packaging: Nude packing,Waxing before shipping
Productivity: 30000sets/year
Brand: CLW
Transportation: Ocean,Land
Place of Origin: CHINA
Supply Ability: 300sets/month
Certificate: SGS
HS Code: 8705909990
Port: SHANGHAI PORT,CHINA
Product Description
HOT SALE Dongfeng 16cbm carriage removable garbage truck
Carriage removable garbage truck(also called roll-off garbage truck, roll on roll off truck, hook lifter truck, hook lift garbage truck, carriage removable / dismountable garbage truck, hook loader container truck, etc. ) is designed to collect and transport municipal solid waste, widely used in residence community, hospital, municipal environmental section, garbage transportation station etc.
CLW GROUP carriage removable garbage truck loading capacity ranges from 1ton, 2tons, 3tons, 5tons, 8tons, 14tons, 18tons, 20 tons etc.
SPECIFICATIONS :
| Carriage Removable Garbage Truck DONGFENG (16CBM) | ||
| General | Vehicle Brand | CLW |
| Chassis Brand | DONGFENG | |
| Overall Dimension | 8380 * 2500 * 3160 mm(L*W*H) | |
| GVW / Kerb Weight | 25000 kg / 13465 kg | |
| Cab | Cab Capacity | 3 persons allowed, with one sleeper |
| Air Conditioner | Air conditioner is equipped | |
| Engine | Fuel Type | Diesel |
| Engine Brand | CUMMINS | |
| Power | 198KW | |
| Displacement | 6700ml | |
| Emission Standard | V | |
| Chassis | Drive Type | 6X4, left-hand drive/ Right hand drive |
| Transmission | 8F,1R | |
| Wheelbase/No. of axle | 4350+1350 mm / 3 | |
| Tyre Specification | 11.00-20 | |
| Tyre Number | 10 tyres and 1 spare tyre | |
| Max Speed | 90 km/h | |
| Paint | Metallic paint | |
| Superstructure | Loading Capacity | 16 CBM |
| Dustbin Material | Anti-corrosive Steel | |
| Hydraulic System | Chinese top brand multi-way valve, cylinders | |
| Control Method | Manual Control, remote control as optional | |
| Self-discharging Incline Angle | 50° | |
| Lifting Time | ≤60S | |
| Unloading Time | ≤60S | |
| The hook loader consists of underframe, linkage frame, fixed arm, telescopic arm, hook arm, locking system, hydraulic system --.. | ||
| All other standard accessories: Tool kit, English manual-- | ||
MORE DETAILS :

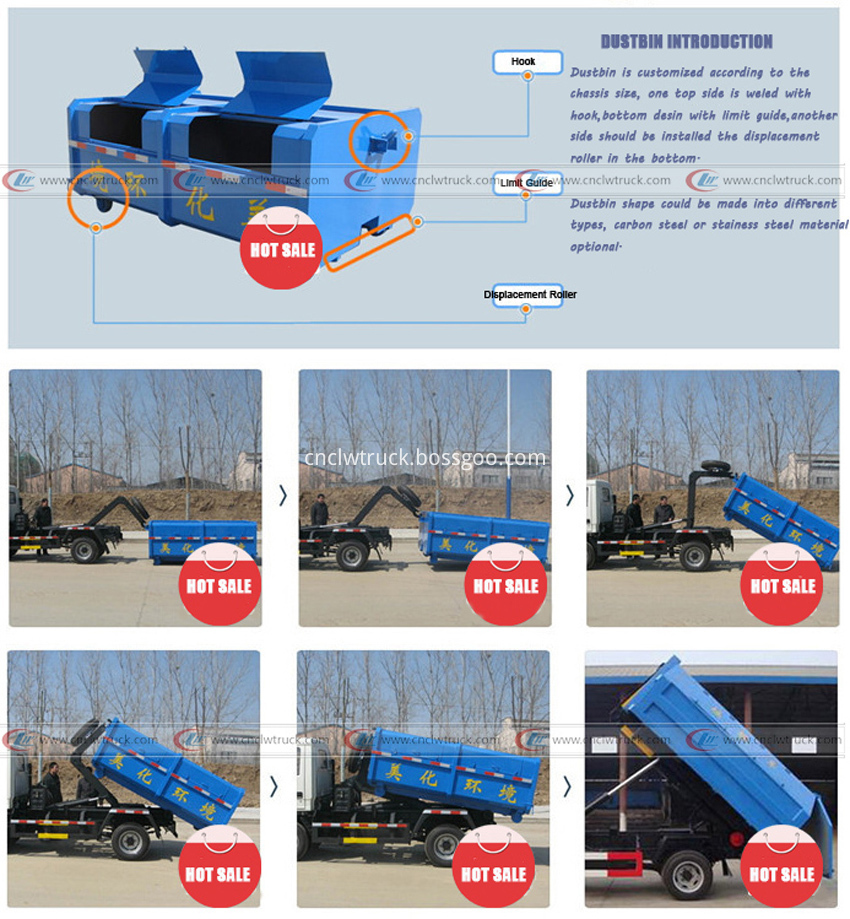

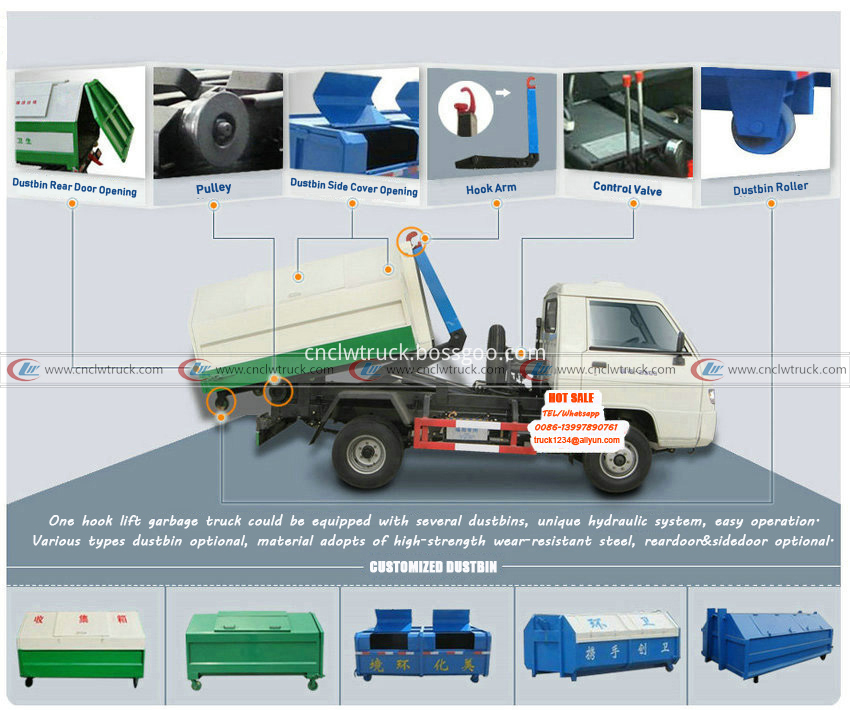

Carriage removable garbage truck structural diagram

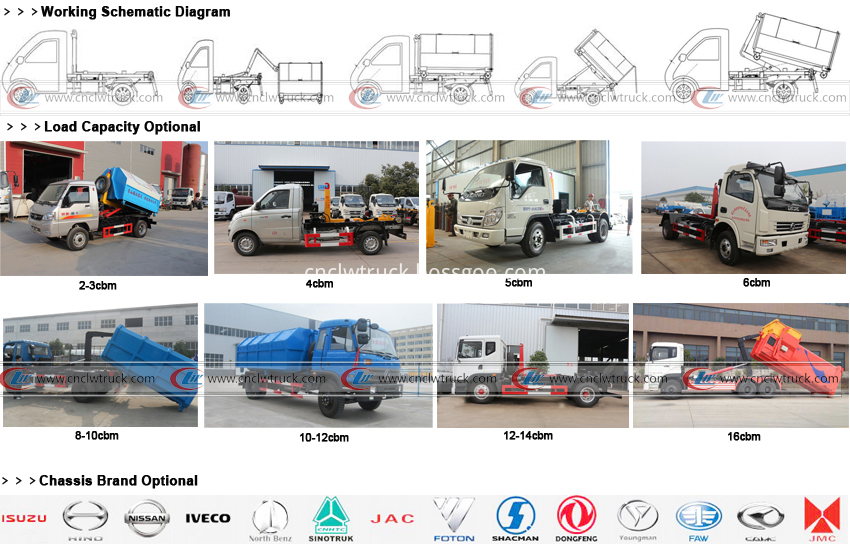

Carriage removable garbage truck working status
