| Payment Type: | L/C,T/T |
|---|---|
| Incoterm: | FOB,CIF,EXW |
| Min. Order: | 1 Set/Sets |
| Delivery Time: | 20 Days |
Basic Info
Model No.: CLW5161GSSE5
Transmission Type: Manual
Emission Standard: Euro 3
Sprinkling Area: ＞16m
Drive Wheel: 4×2
Certification: CCC, ISO9000
Engine Type: 4 Stroke
Fuel: Diesel
Condition: New
Volume: 10001 - 15000L
Engine Capacity: 4 - 6L
Payload: 30T
Chassis Brand: DONGFENG
Additional Info
Packaging: Nude packing,Waxing before shipping
Productivity: 30000sets/year
Brand: CLW
Transportation: Ocean,Land
Place of Origin: CHINAc
Supply Ability: 3000sets/month
Certificate: SGS,ISO9001, CNAS,CCC
HS Code: 8705909990
Port: SHANGHAI PORT,CHINA
Product Description
New Economical type Dongfeng 15000Litres water wagon
Water wagon is designed to transport and supply water, whatever industrial or agriculture water, widely used in construction engineering, farm irrigation, draught relief, etc, with non-toxic treatment inside tank or tank made of stainless steel, the water tank truck can be suitable for transporting drinking water, called as potable water tanker, drinking water tanker, stainless steel water tanker, agua potavel, safe to human body.
Water tank truck can also be equipped with special sprayers to achieve front flush, rear sprinkle, side spray, to sprinkle and clean the roads, streeets for environmental sanitation and protection, called as water sprinkler, water spray truck, with rear working platform and high cannon, the Water lorry can also be used to water the plants, even high trees in virescence, called as watering truck.
Water delivery truck can be also equipped with pesticide spraying machine or fire pump, to be used to spray pesticide in agriculture pest control field or fire fighting in emergency rescue.
.What the right dongfeng water wagon can do for your business:
SPECIFICATIONS :
| Dongfeng water wagon(15,000 litres) | ||
| General | Vehicle Brand | CLW |
| Chassis Brand | DONGFENG | |
| Overall Dimension | 8200 * 2480 * 3200 mm | |
| GVW / Kerb Weight | 15,800 kg / 6,750kg | |
| Cab | Cab Capacity | 3 persons allowed, with one sleeper |
| Air Conditioner | W/ air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | Cummins engine | |
| Power | 190 Hp (140 KW) | |
| Displacement | 5900 ml | |
| Emission Standard | Euro III | |
| Chassis | Drive Type | 4X2, left or right hand drive |
| Transmission | 6 speed gear box, no overhaul within 500,000km | |
| Wheelbase/No. of axle | 5100 mm / 2 | |
| Tyre Specification | 10.00-20 | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 90 km/h | |
| Paint | Metallic paint | |
| Superstructure | Tank Capacity | 15,000 Litres ( About 4,000 gallons) |
| Tank Material | Carbon steel | |
| Flow Speed | 1000 litres / min | |
| Delivery Head | 60 m | |
| Suction Head | 7 m | |
| Hose | High quality PVC hose, anti-aging | |
| All other standard accessories: manhole, ladder, inlet, discharge--. | ||
| Optional | ** Tank material could be stainless steel or carbon steel with non-toxic treatment for potable water, safe for human body. | |
DETAILS :
Dongfeng water wagon in action

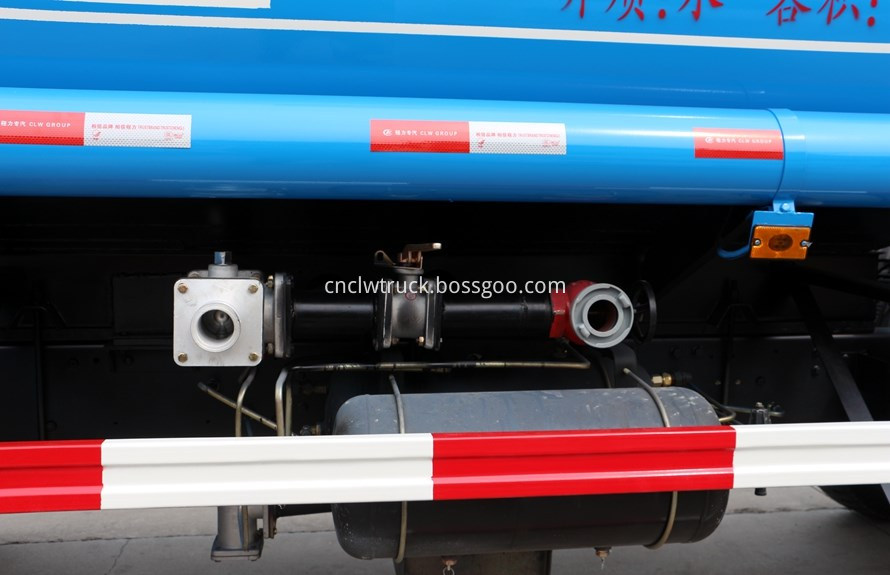

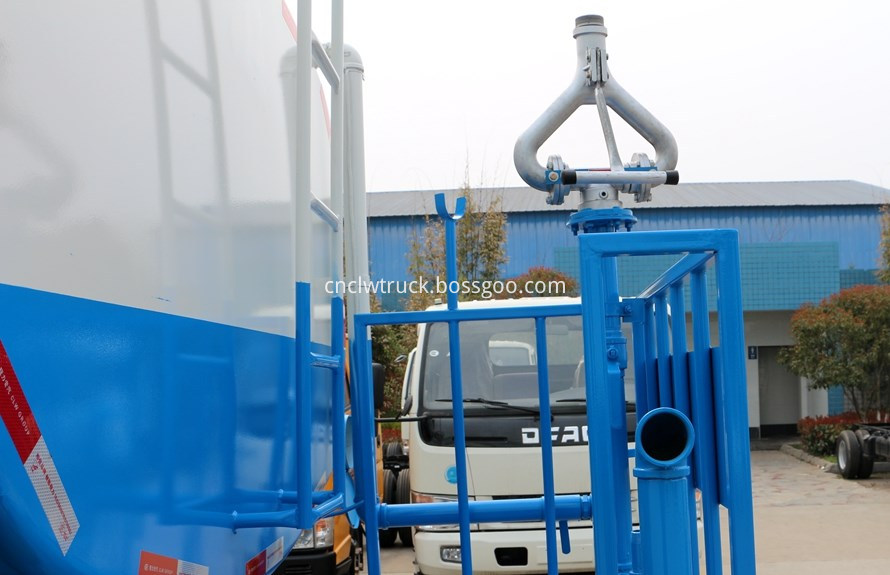

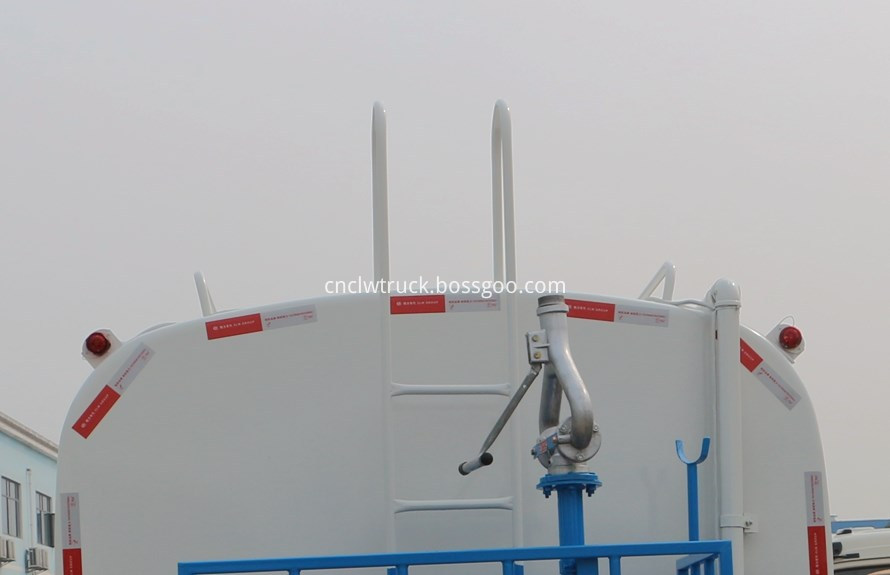

Dongfeng water wagon parts' details

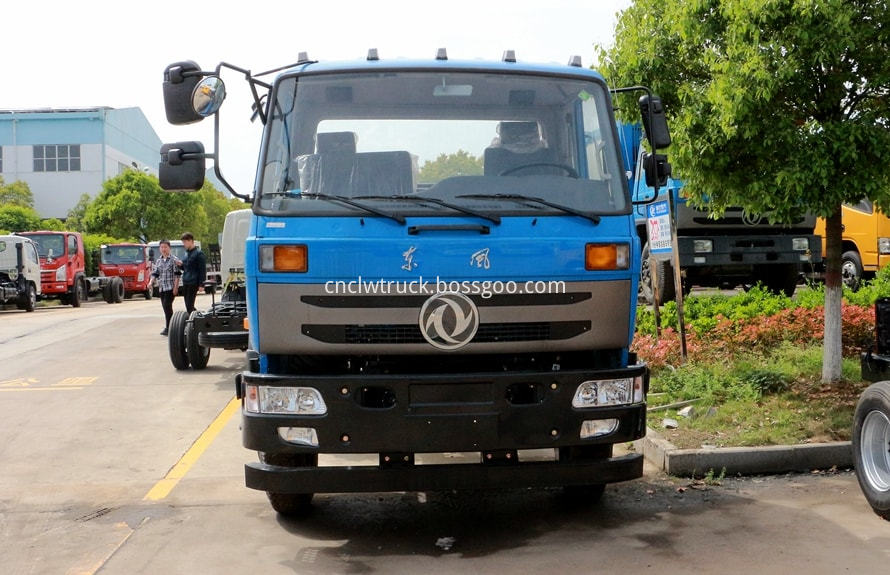

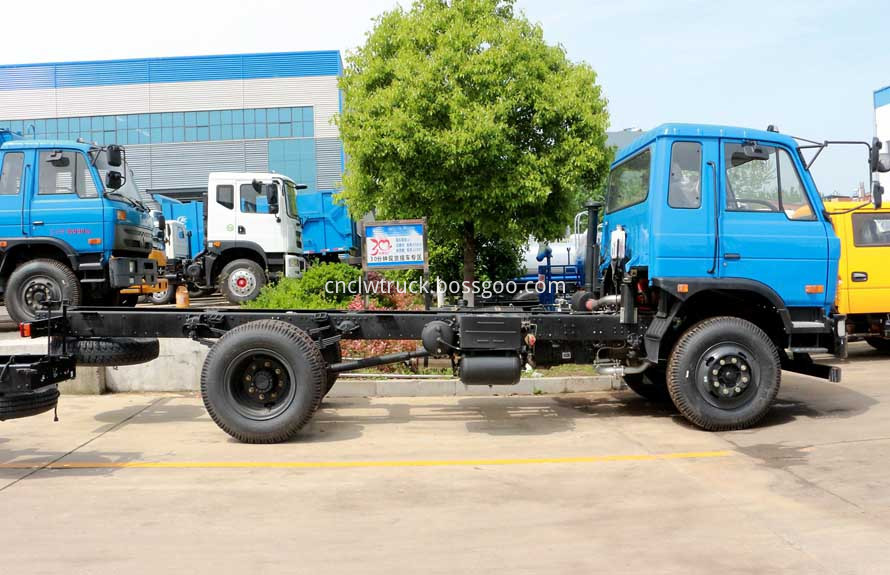

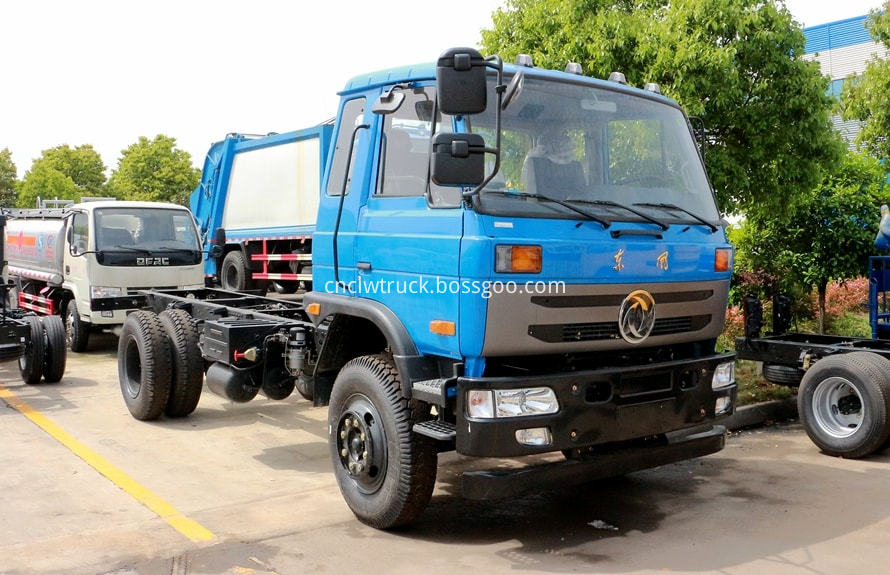

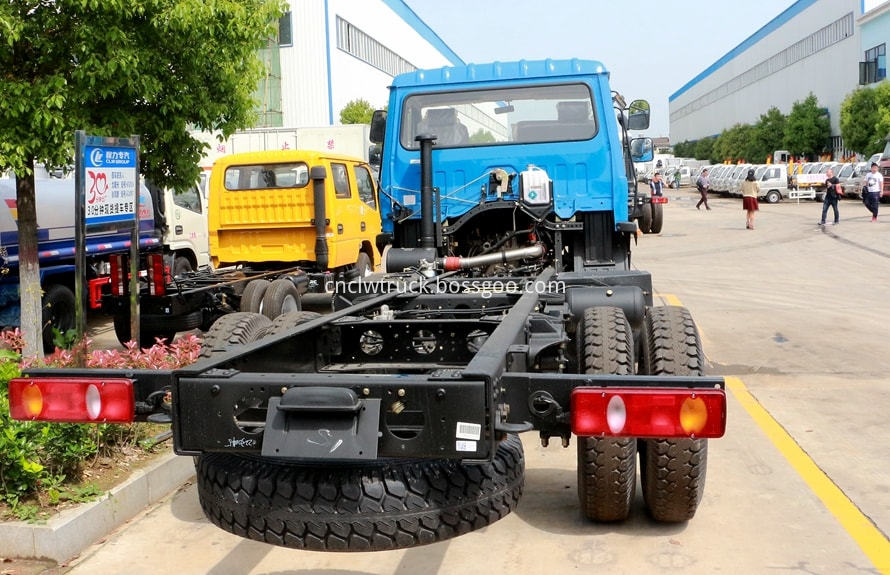

Dongfeng water wagon chassis's pictures
Dongfeng water wagon can be equipped with following options
Dongfeng water wagon structural composition
What we can supply for you:
We are chinese top one brand new special purpose trucks manufacturer, we have over 15 years production experiences and more than 8000 employees, export volume per year 60,000,000 dollars, 3000set/year.
Welcome to visit us and looking forward to bulid a long win-win business cooperation.
