| Payment Type: | L/C,T/T |
|---|---|
| Incoterm: | FOB,CIF,EXW |
| Min. Order: | 1 Set/Sets |
| Delivery Time: | 20 Days |
Basic Info
Model No.: CLW5168GLJ4
Emission Standard: Euro 3
Drive Wheel: 4x2
Tank Volume: 9000L, 6000-7000L
Transmission Type: Manual
horsepower: 150-250hp
Certification: CCC, ISO9000
Payload: 20T
Fuel: Diesel
Engine Type: 4 Stroke
Condition: New
Chassis Brand: DONGFENG
Additional Info
Packaging: Nude packing,Waxing before shipping
Productivity: 30000sets/year
Brand: CLW
Transportation: Ocean,Land
Place of Origin: CHINA
Supply Ability: 3000sets/month
Certificate: SGS,ISO9001, CNAS,CCC
HS Code: 8705909990
Port: SHANGHAI PORT,CHINA,ANY OTHER MAIN PORT IN CHINA
Product Description
Guaranteed 100% DFAC 8000litres High Pressure Water Jetting Truck
High Pressure Water Jetting Truck is designed for high pressure washing and sanitation of roads. It`s able to remove the stubborn stuff and reduce dust on the road.
The basic accessories for a road jetting truck are: front stainless steel high pressure washing beam, rear sprinkling nuzzles bar, sprayer, etc.
SPECIFICATIONS:
| High Pressure Water Jetting Truck (8,000 litres) | ||
| General | Vehicle Brand | CLW |
| Chassis Brand | Dongfeng | |
| Overall Dimension | 8980 * 2500 * 3200 mm | |
| GVW / Kerb Weight | 25,000 kg / 12,800 kg | |
| Cab | Cab Capacity | 3 persons` seat with 1 sleeper |
| Air Conditioner | Air conditioner eqiupped | |
| Engine | Fuel Type | Diesel |
| Engine Brand | Cummins engine (American brand) | |
| Power | 190 Hp (140 KW) | |
| Displacement | 6900 ml | |
| Emission Standard | Euro II | |
| Chassis | Drive Type | 4X2, left hand or right hand drive |
| Transmission | 6-speed forward, 1 reverse | |
| Wheelbase/No. of axle | 4500 mm / 2 | |
| Tyre Specification | 10.00-20 | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 90 km/h | |
| Paint | Automative metallic paint | |
| Superstructure | Tank Capacity | 8,000 Litres ( 2,400 gallons) |
| Tank Material | Carbon steel | |
| Plunge Pump | Imported Italian high pressure pump, 122L/min @ 2300 psi (160 bar), Highly powerful for cleaning jams in sewer and stubborn stains. | |
| Water Flow Speed | 500 – 8000 L/min | |
| Cleaning Speed | 2.5 - 3.5 m | |
| Cleaning Width | 6 m | |
| Auxiliary Engine |
Cummins engine (American brand), 170 HP (125 KW), super powerful |
|
| All standard accessories: hose, high pressure hose reel, high pressure water gun, ground hydrant wrench, basic tool kit, English manual-- | ||
| Optional |
** Stainless steel water tank. ** Elevating Platform. ** High cannon. |
|

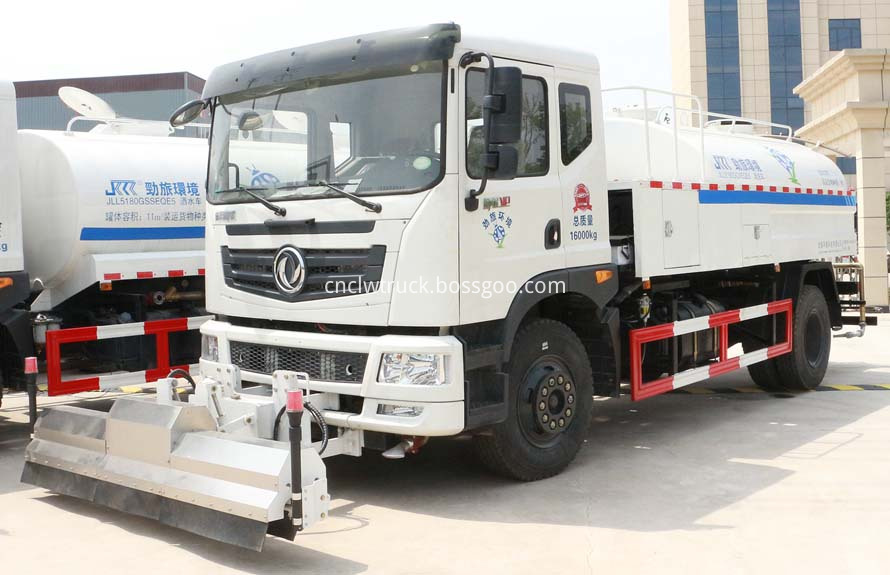

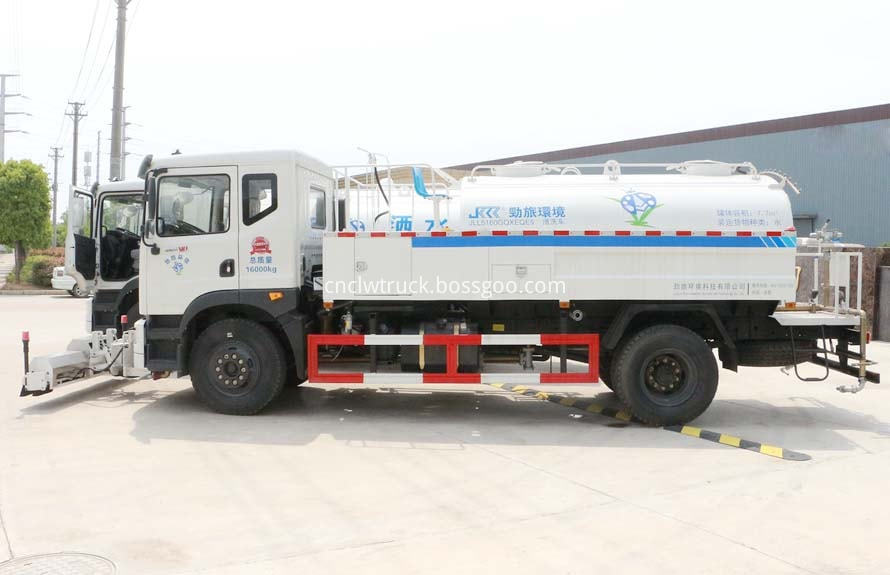

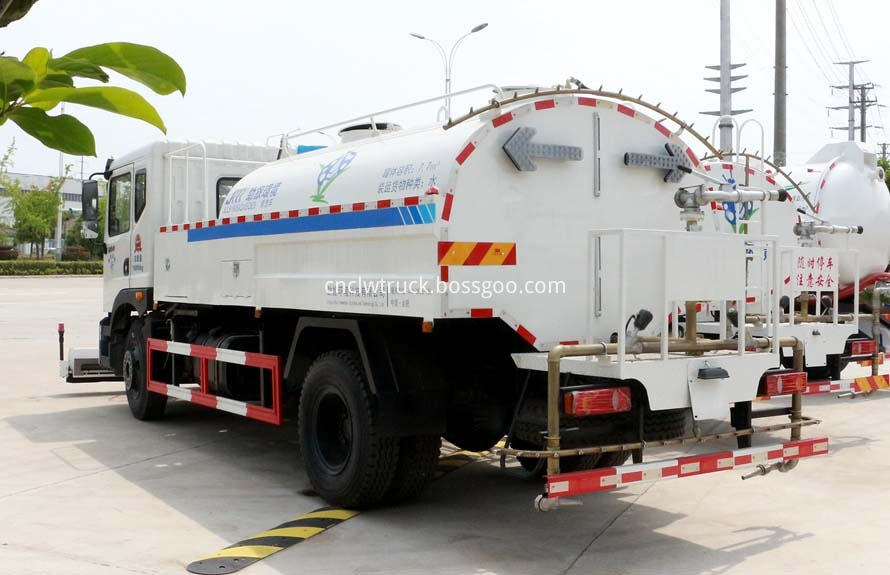

VEHICLE PICTURES:
Working Situation Of High Pressure Water Jetting Truck

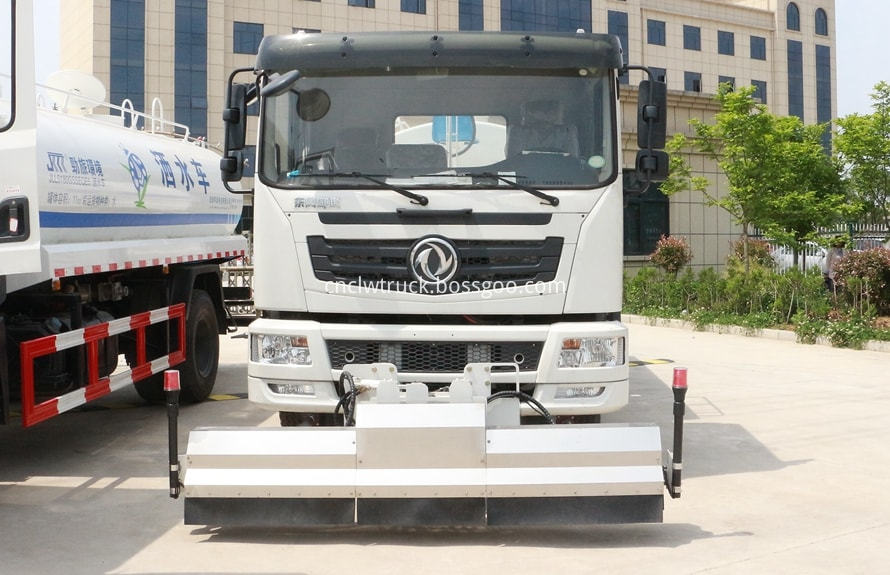

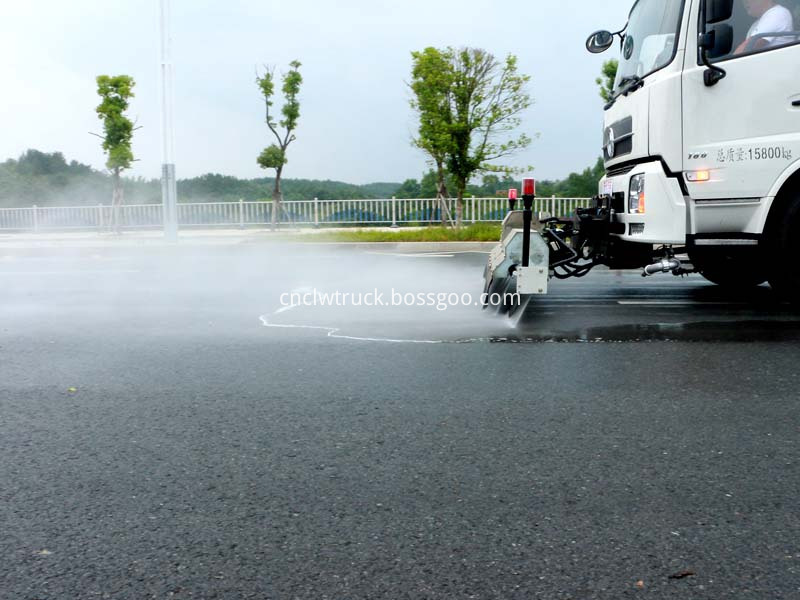

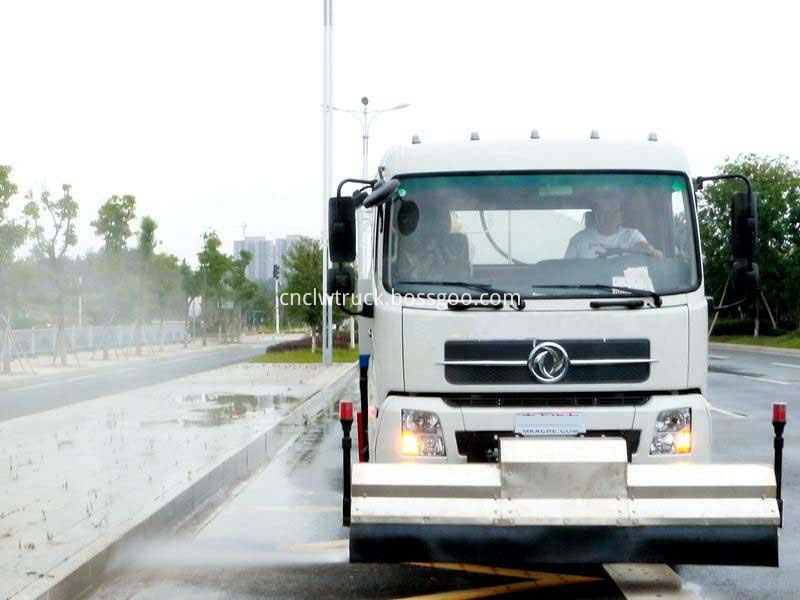

Dongfeng 8000 litres high pressure washing truck is in action: High Pressure Front Flushing

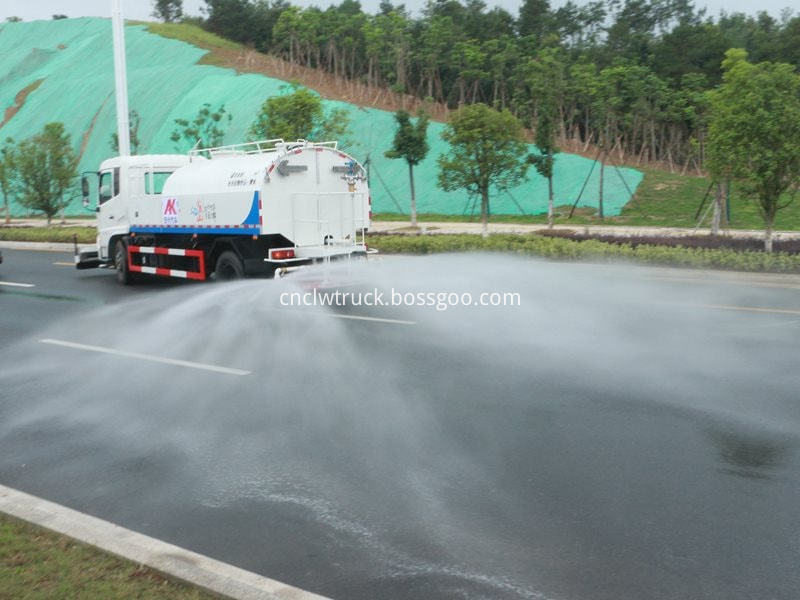

Dongfeng 8000 litres high pressure washing truck is in action: Side Spraying

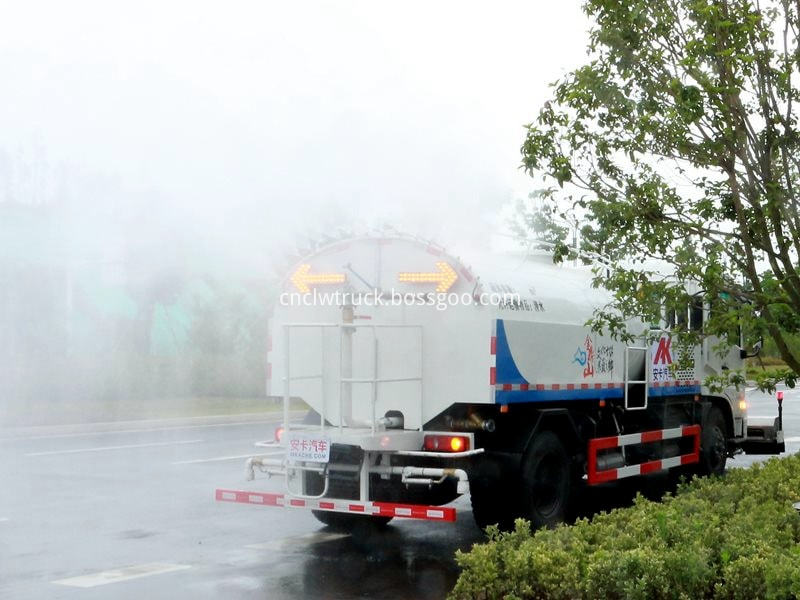

Dongfeng 8000 litres high pressure washing truck is in action: Rear Spraying

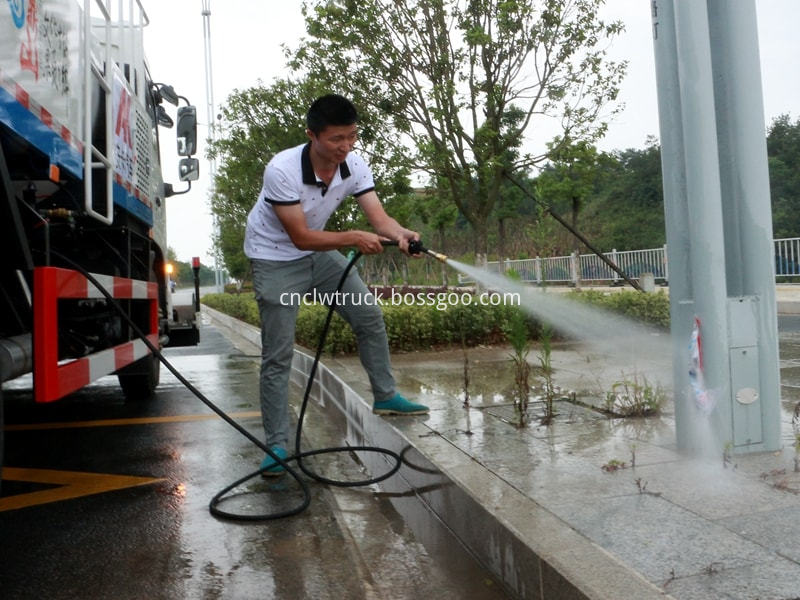

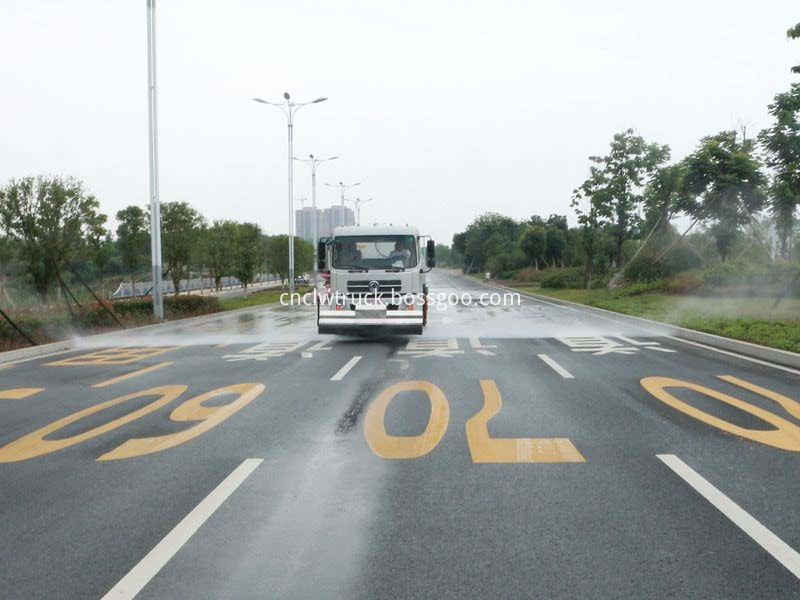

Dongfeng 8000 litres high pressure washing truck is in action: High Pressure Washing

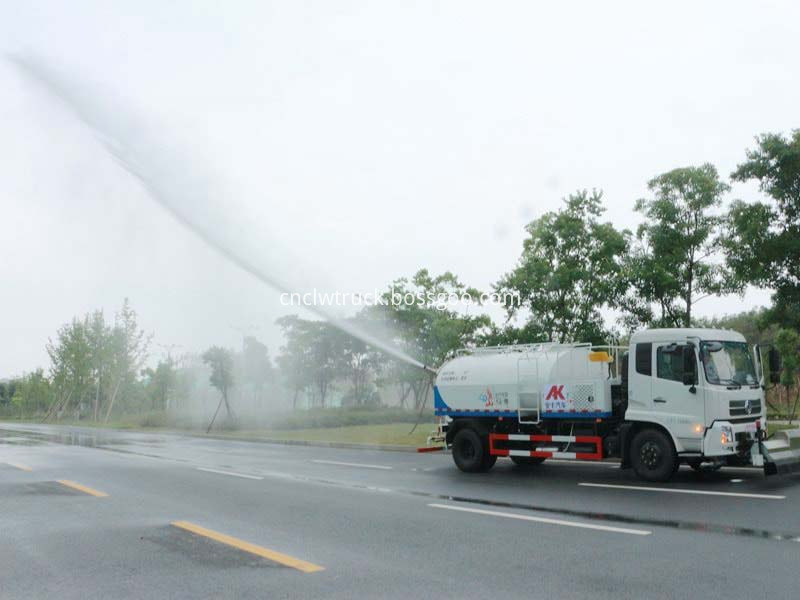

Dongfeng 8000 litres high pressure washing truck is in action: Water Cannon
Dongfeng 8000litres high pressure washing truck is in action: Side Flushing

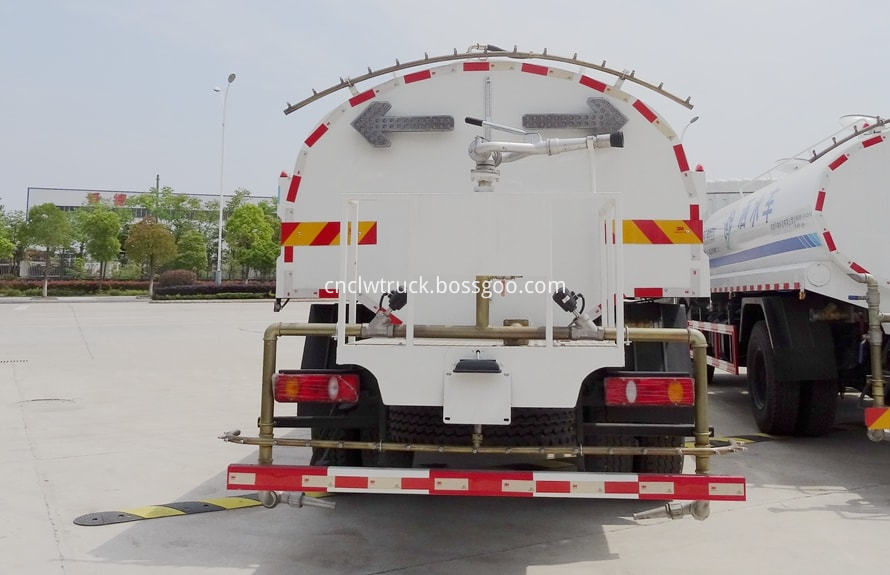

Dongfeng 8000 litres high pressure washing truck is in action: Rear Sprinkling
Need more details of our High Pressure Water Jetting Truck welcome to contact us at any time!
