| Payment Type: | L/C,T/T |
|---|---|
| Incoterm: | FOB,CIF,EXW |
| Min. Order: | 1 Set/Sets |
| Delivery Time: | 20 Days |
Basic Info
Model No.: CLW5163GQWD4
Emission Standard: Euro 3
Drive Wheel: 4x2
Transmission Type: Manual
horsepower: 150-250hp
Certification: CCC, ISO9000
Payload: 20T
Fuel: Diesel
Engine Type: 4 Stroke
Condition: New
Tank Volume: 9000L
Chassis Brand: DONGFENG
Additional Info
Packaging: Nude packing,Waxing before shipping
Productivity: 30000sets/year
Brand: CLW
Transportation: Ocean,Land
Place of Origin: CHINA
Supply Ability: 3000sets/month
Certificate: SGS,ISO9001, CNAS,CCC
HS Code: 8705909990
Port: SHANGHAI PORT,CHINA,ANY OTHER MAIN PORT IN CHINA
Product Description
Guaranteed 100% Brand New DFAC 8000litres Combination Vacuum Jetting Truck
Combined jet suction truck is a vehicle that is designed to clear any blockage with jetting nozzles moving in sewage pipes under high pressure, and clear sewerage lines by means of a powerful vacuum suction to suck all water plus mud from sewer main hole. The truck is widely used in environment and sanitation field.
SPECIFICATIONS:
Combination Vacuum Jetting Truck (8,000 litres)
General
Vehicle Brand
CLW
Chassis Brand
DONGFENG
Overall Dimension
8700 * 2420 * 3680 mm
GVW / Kerb Weight
16,000 kg / 9,800 kg
Cab
Cab Capacity
3 persons allowed
Air Conditioner
Air conditioner is optional
Engine
Fuel Type
Diesel
Engine Brand
CUMMINS ENGINE(American Brand)
Power
190 Hp (140 KW)
Displacement
6900 ml
Emission Standard
Euro III
Chassis
Drive Type
4X2, left hand drive or right hand drive
Transmission
6-speed front, 1 reverse
Wheelbase
4700 mm
Number of axle
2
Tyre Specification
9.00-20
Tyre Number
6 tyres and 1 spare tyre
Max Speed
90 km/h
Paint
Metallic paint
Superstructure
Water Tank
Tank Capacity
4,000 Litres (about 1,000 gals)
Tank Material
Carbon steel
High Pressure Pump
Italy Imported brand / 16Mpa
Flow Speed
125 L/min
High Pressure Hose
60m
Suction Head
6 m
Nozzles
A cluster of nozzles included
Sewer Tank
Tank Capacity
4,000 Litres (about 1,000 gals)
Tank Material
Carbon steel
Vacuum Pump
Highly efficient, vacuum rate 93%, quick suction and discharge, suction lift 6m.
Rear door can be hydraulic opened for complete discharge of solid stuff.
All standard accessories: manhole, tool kit, English manual--..
Optional
** Tank material could be stainless steel.
** High pressure hose length could be customized.

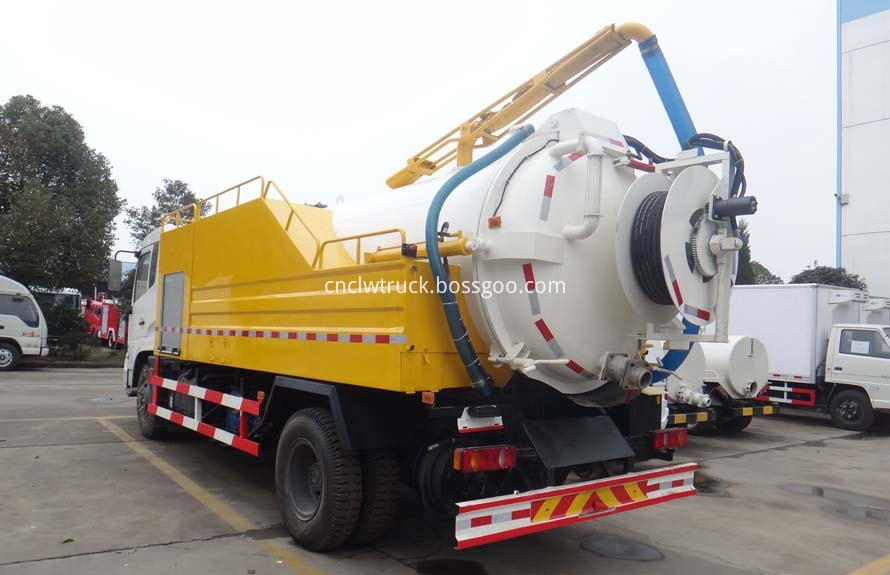

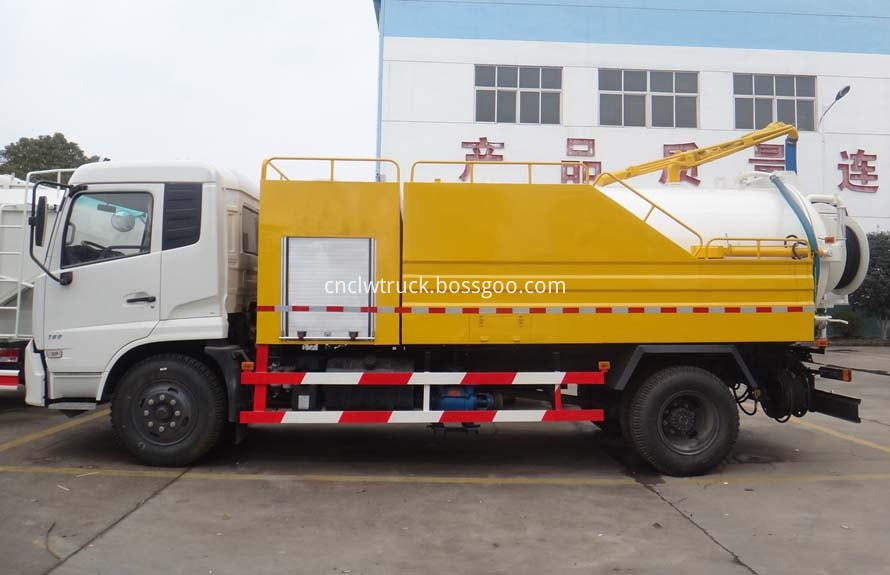

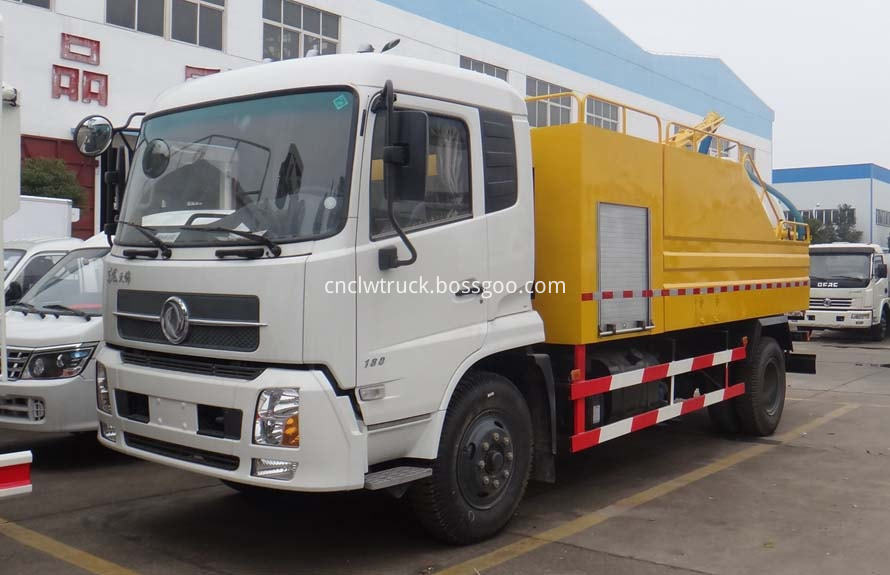

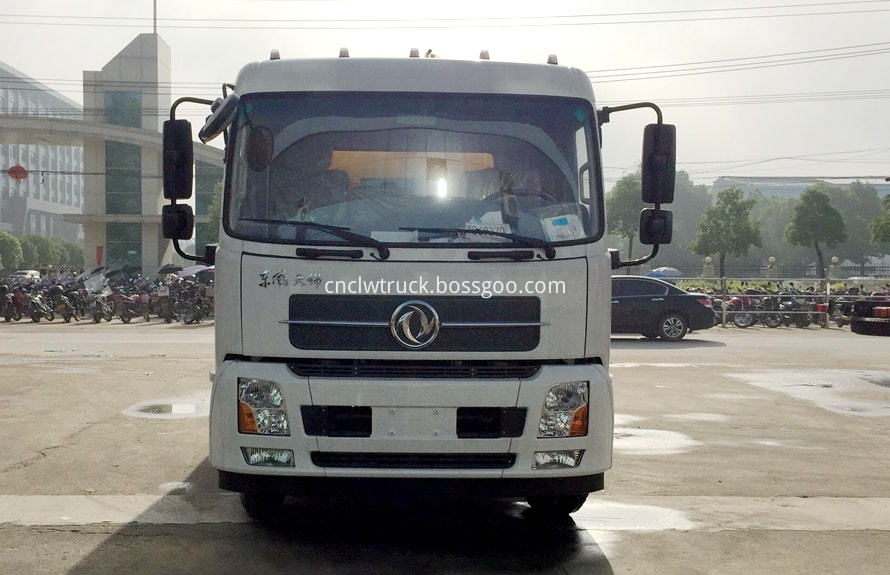

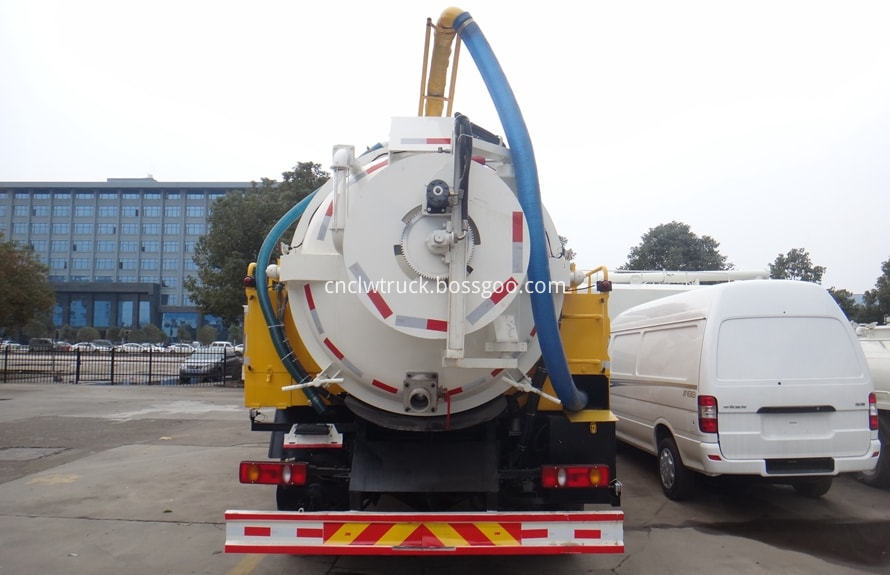

VEHICLE PICTURES:
Detailed Configuration Of Combination Vacuum Jetting Truck
Working Situation Of Combination Vacuum Jetting Truck
Need more details of our Combination Vacuum Jetting Truck welcome to contact us at any time!
WHY CHOOS US:
1. We are manufacturer supply the cheapest price, guaranteed quality & best after sale services.
2. Accept site training if client project is needed.
3. All operate directions in English version(standard), any other languages are available.
4. Professional export experiences over 15years, we supply one-stop services include production, payment, delivery, customs clearance & shipping..
