Basic Info
Model No.: CLW5070TXCQL5
Type: Wet-type
Payload: 20T
Transmission Type: Manual
Engine Type: 4 Stroke
Fuel: Diesel
Emission Standard: Euro 4
Certification: CCC, ISO9000
Condition: New
Chassis Brand: ISUZU
Additional Info
Packaging: Nude packing,Waxing before shipping
Productivity: 30000sets/year
Brand: CLW
Transportation: Ocean,Land
Place of Origin: CHINA
Supply Ability: 300sets/month
Certificate: SGS,ISO9001, CNAS,CCC
HS Code: 8705909990
Port: SHANGHAI PORT,CHINA,Any Other Port in China
Product Description
Brand New HOT JMC 5cbm city sweeper truck
ISUZU sweeper truck is suitable for brushing, suction and transportation of dusts, leaves, mud, soil, sand, stone chips, gravels and other small particles on the ground of city roads and areas. This unit shall be suitable for dry type cleaning job as well as dust suppression with water spray in the road side and narrow lanes.
The ISUZU dust suction truck is composed by chassis, auxiliary engine, air blower, magnetic valve, debris bin, water bin, sweeping system, suction system, water sprinkling system, hydraulic system, electrical control system, etc.
Four brooms Sweeping system and suction system combine working, high efficient. Water sprinklers equipped on brooms, suction nozzle, effective dust suppression.
SPECIFICATIONS :
Chassis specifications: chassis model QL1070A5HAY, 5 speeds gearbox, with power steering, A/C, automatically air-cut brake, tire spec 7.00R16, wheelbase 3360mm, with ABS, ISUZU engine 130hp .
Body specifications: Square body, aluminium alloy water tank capacity 1cbm, aluminium alloy dustbin capacity 5cbm, auxiliary diesel engine ISUZU brand 75hp, maintenance-free fan, disconnect-type clutch, with four sweepers, Schneider control switch, tail LED arrow light, manual pump emergency system, famous brand pulse gauge & pulse valve.
Optional configurations:
1. Cambered body
2. Snow shovel
3. Dustbin self-cleaning function
4. Water cannon
Files with vehicle: basic tool & accessories , english vesion manual book, operation vedio..
VEHICLE PARAMETERS :
|
Road Sweeper Truck ISUZU ( 5CBM dustbin & 1 CBM water tank ) |
||
| General | Vehicle Brand | CLW |
| Chassis Brand | ISUZU | |
| Overall Dimension | 6190 * 1990 * 2590 mm | |
| GVW / Kerb Weight | 7200kg / 4880kg | |
| Cab | Cab Capacity | 2 persons allowed |
| Air Conditioner | W/ air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU | |
| Power | 130Ps (96KW) | |
| Displacement | 2999 ml | |
| Emission Standard | Euro V | |
| Chassis | Drive Type | 4X2, left or right hand drive |
| Transmission | 5 speed gear box, no overhaul within 500,000km | |
| Wheelbase/No. of axle | 3360 mm / 2 | |
| Tyre Specification | 7.00R16 | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 99 km/h | |
| Paint | Metallic paint | |
| Superstructure | Water Tank | Aluminium alloy |
| Dustbin Capacity | 5CBM | |
| Dustbin Material | Aluminium alloy | |
| Water Tank Capacity | 1000 Litres (About 300gallons) | |
| Sweeping Capacity | 50,000 m³/h-100,000m³/h | |
| Sweeping Speed | 3-15 km/h | |
| Max Sweeping Width | 3500mm | |
| Brooms | 2 sets at each side | |
| Rear water sprinklers | 12pcs | |
| Auxiliary Engine |
ISUZU engine 75HP (50KW), super powerful |
|
| All standard accessories: Warning lights, music alarm, basic tool kit, English manual-- | ||
| Optional |
** Backup alarm can be equipped. ** Camera can be equipped. ** Air blower can be of stainless steel. |
|
VEHICLE PICTURES :

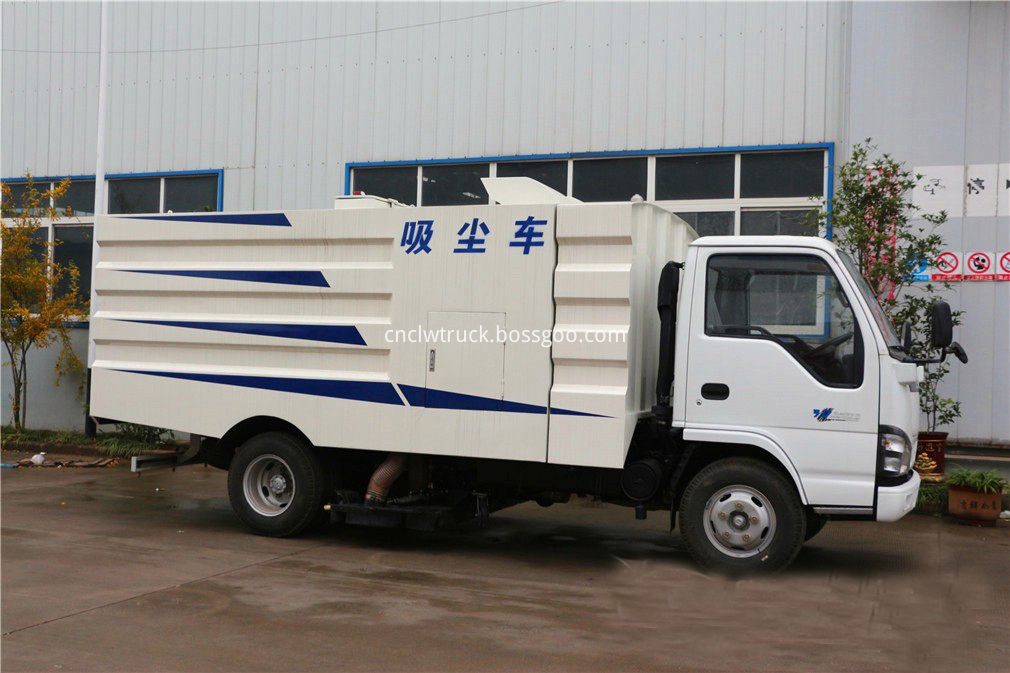

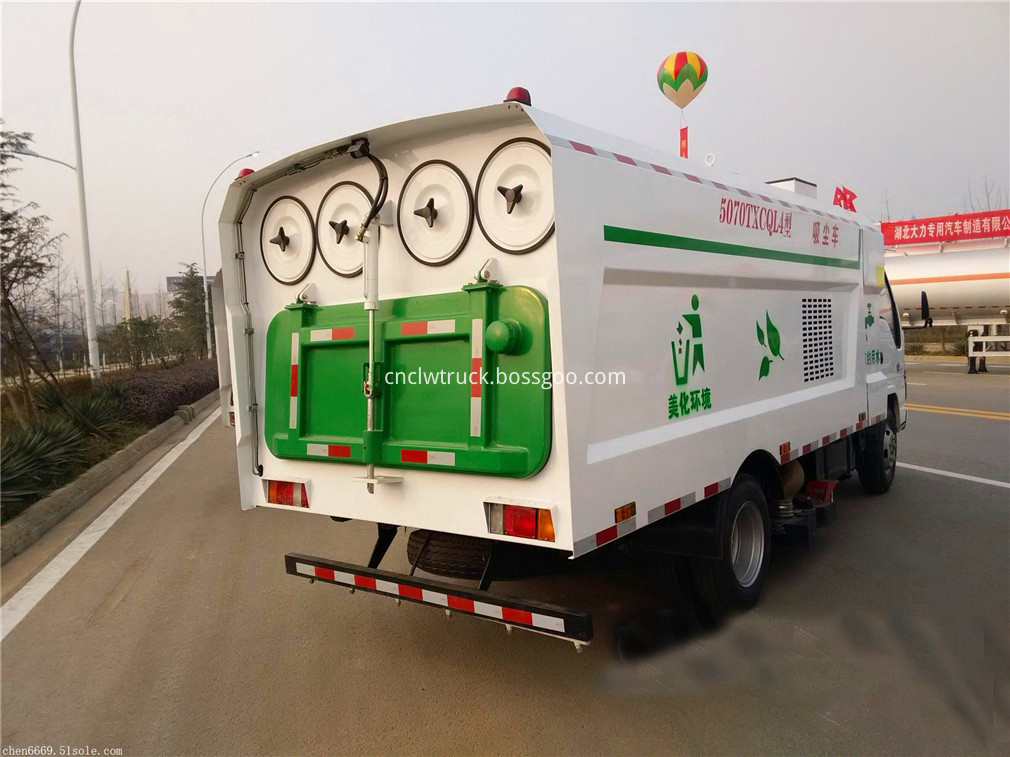

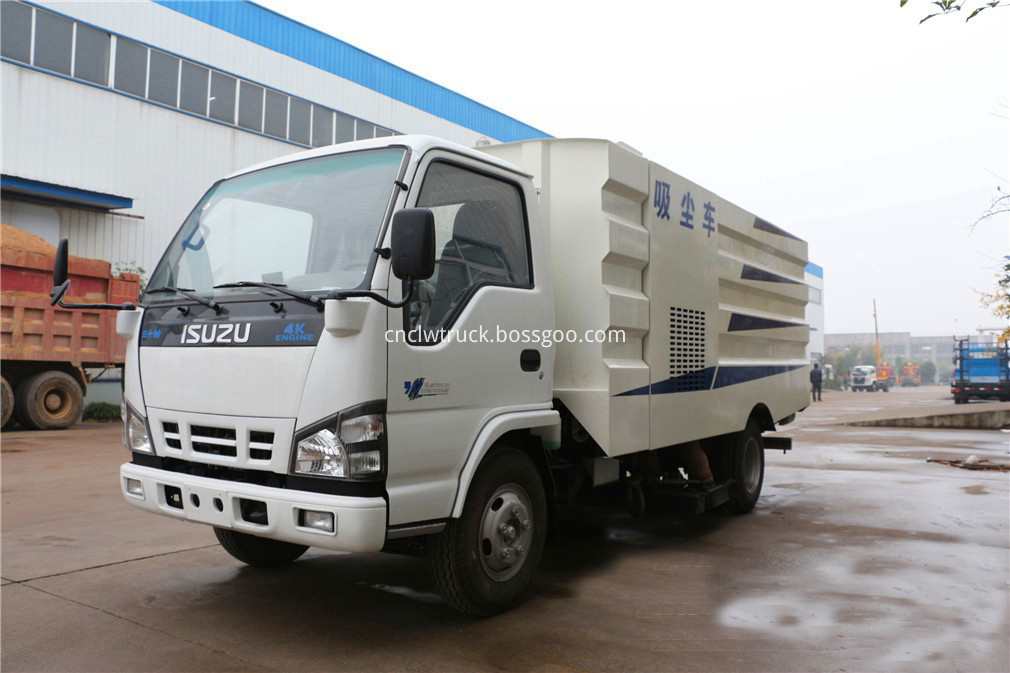

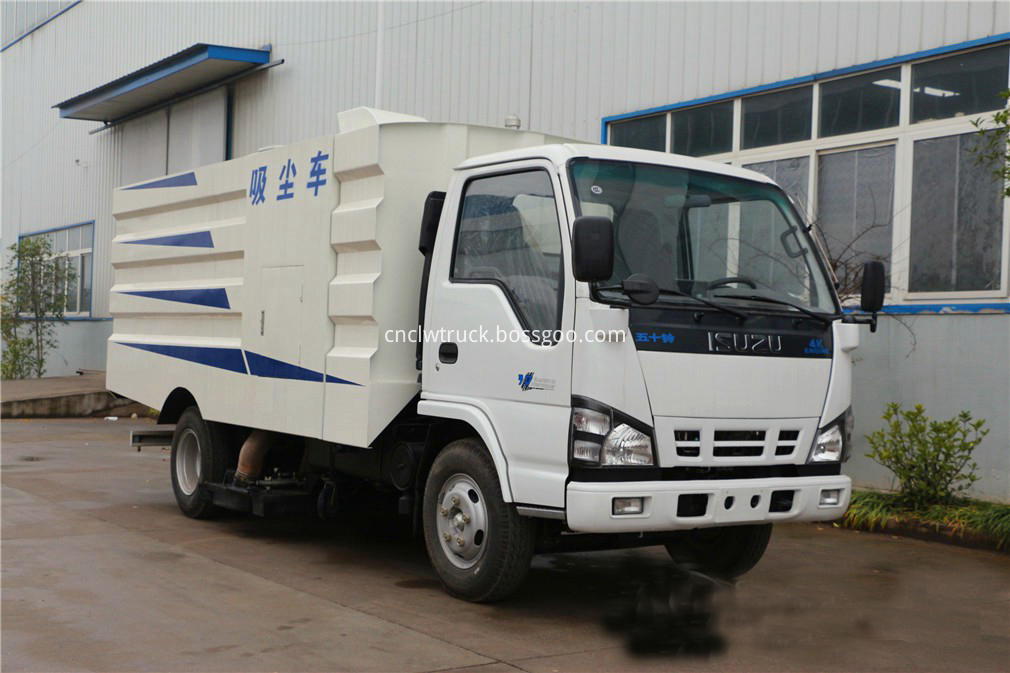

Pictures of ISUZU sweeper truck

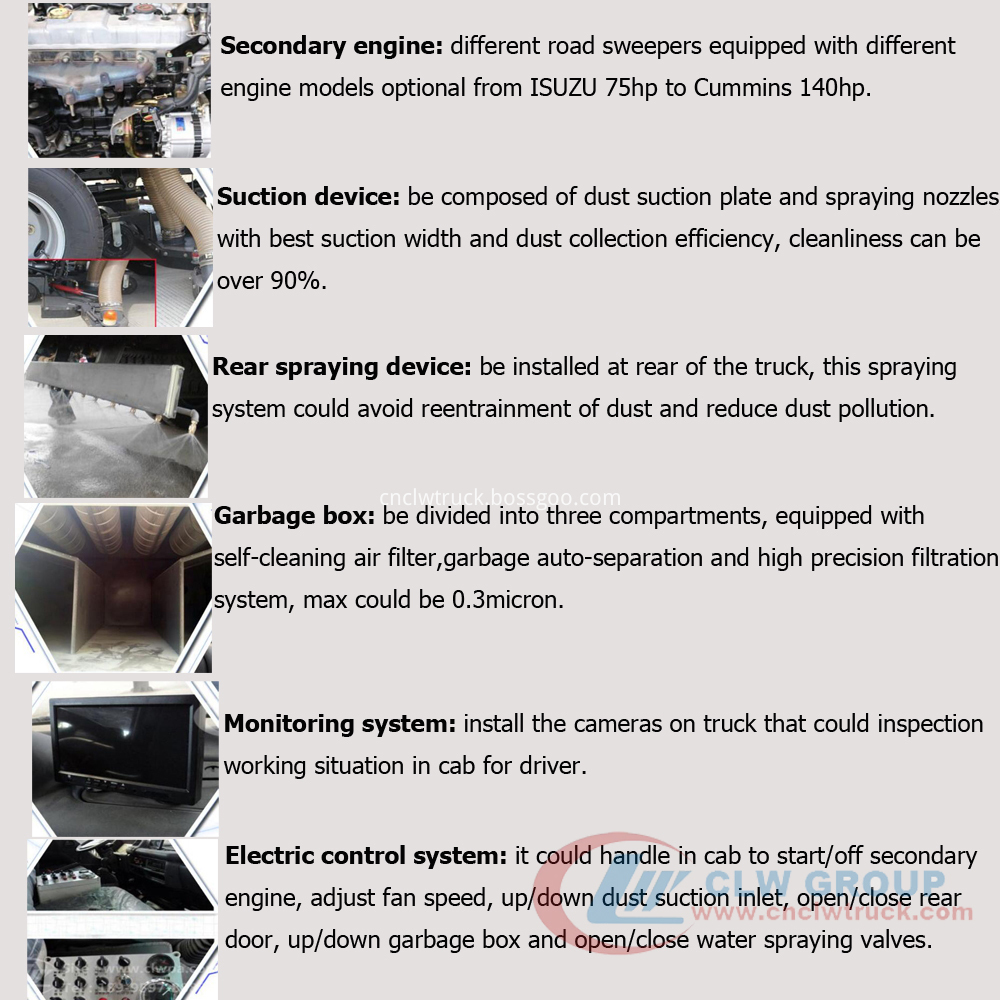

Advantages of Our City Sweeper truck
City Sweeper Truck in action :

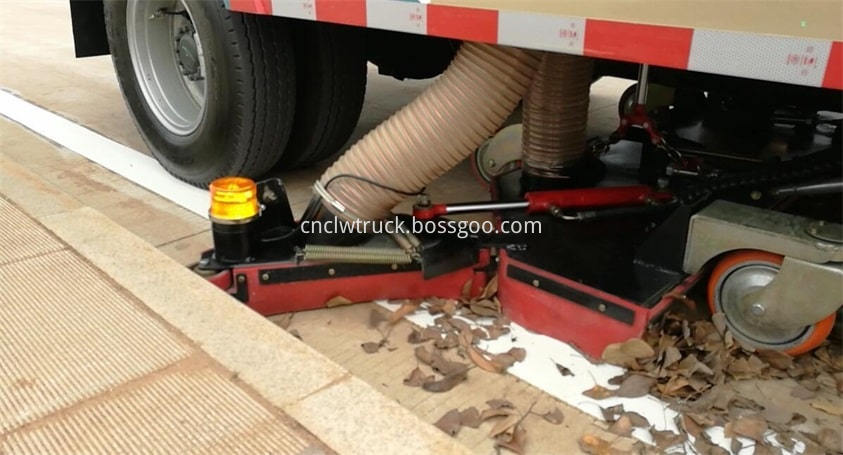

(City Sweeper Truck clean leaves 1)
(City Sweeper Truck clean leaves 2)

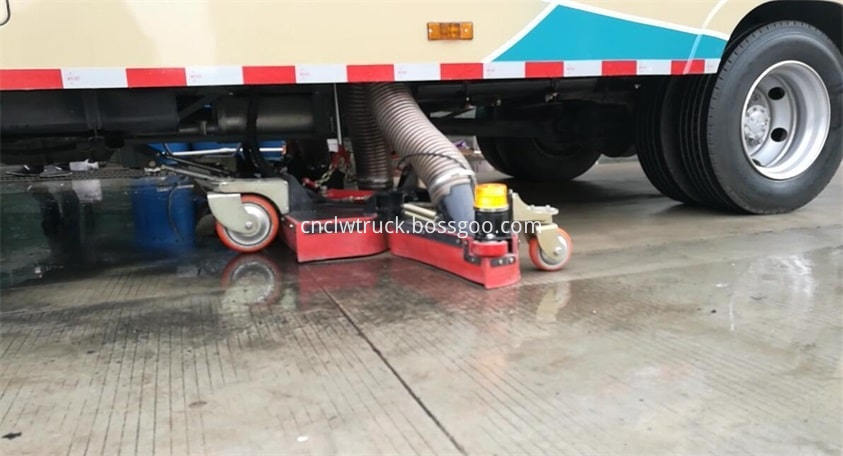

(City Sweeper Truck suction water)

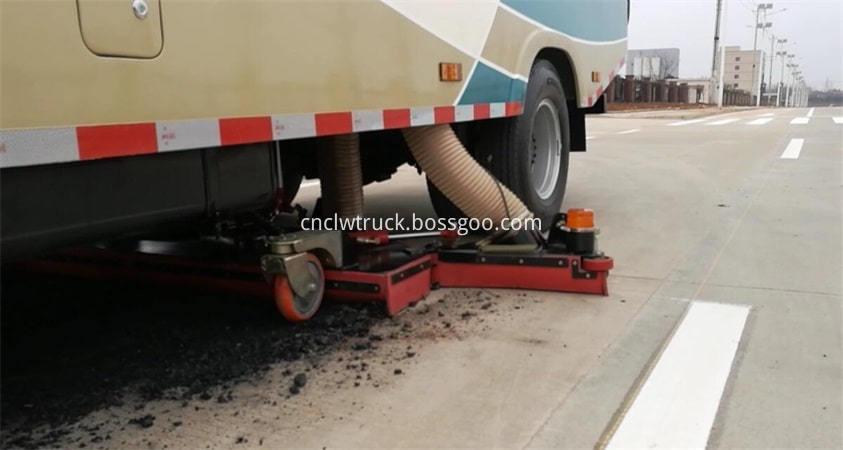

(road sweeper trucks suction coal cinder)

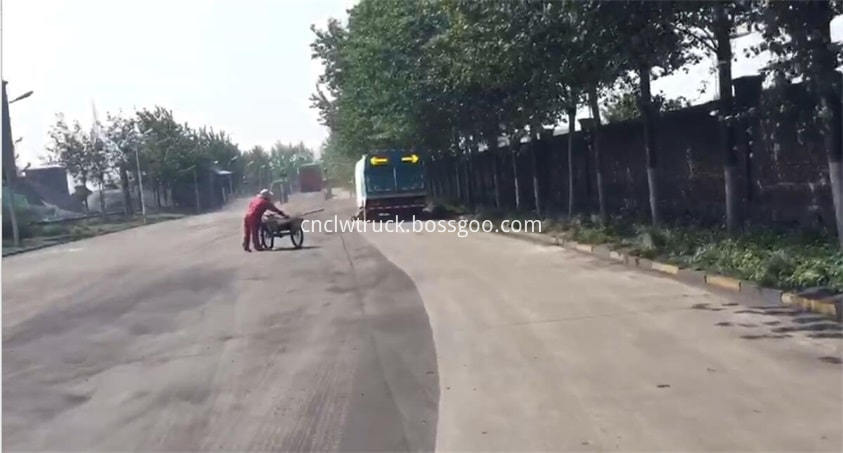

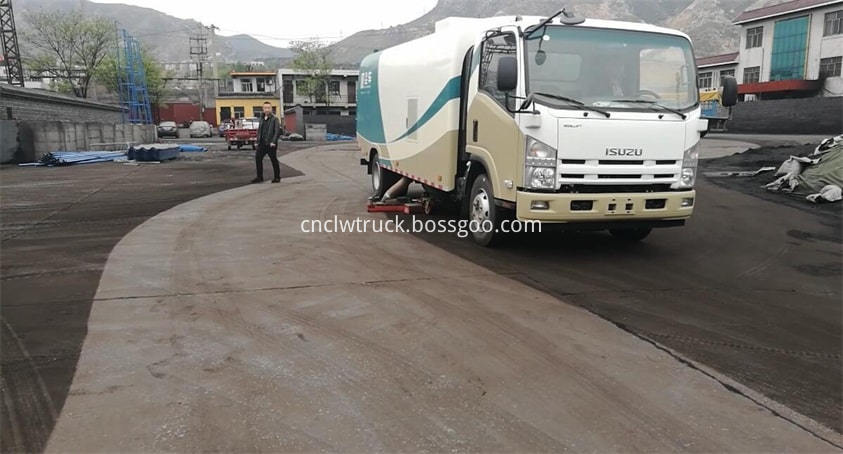

(road sweeper trucks works on road)
(road sweeper trucks work in construction site)

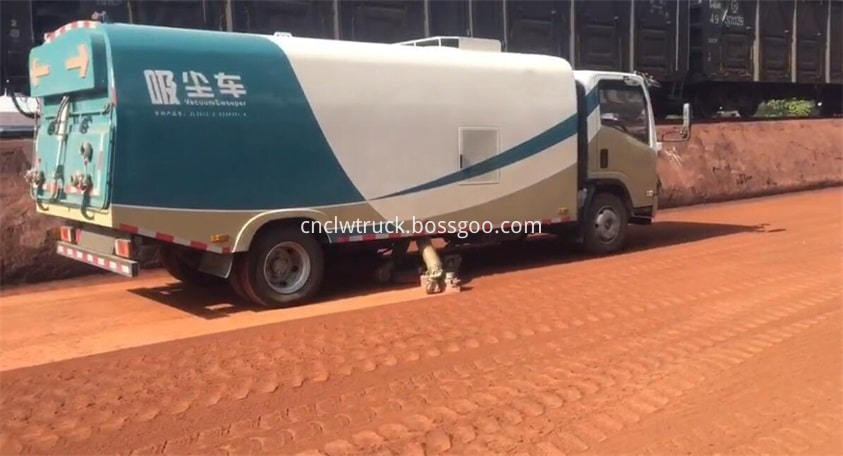

(road sweeper trucks work in coal yard)
We are chinese top one brand new special purpose trucks manufacturer, we have over 15 years production experiences and more than 8000 employees, export volume per year 60,000,000 dollars, 3000set/year.
Welcome to visit us and looking forward to bulid a long win-win business cooperation with u!
