Brand New HOT JMC 5cbm city sweeper truck

Payment Type: L/C,T/T
Incoterm: FOB,CIF,EXW
Min. Order: 1 Set/Sets
Delivery Time: 30 Days

Basic Info

Model No.: CLW5060TXCJX

Type: Wet-type

Payload: 20T

Transmission Type: Manual

Engine Type: 4 Stroke

Fuel: Diesel

Emission Standard: Euro 4

Certification: CCC, ISO9000

Condition: New

Chassis Brand: JMC

Additional Info

Packaging: Nude packing,Waxing before shipping

Productivity: 30000sets/year

Brand: CLW

Transportation: Ocean,Land

Place of Origin: CHINA

Supply Ability: 300sets/month

Certificate: SGS,ISO9001, CNAS,CCC

HS Code: 8705909990

Port: SHANGHAI PORT,CHINA,Any Other Port in China

Product Description

Brand New HOT JMC 5cbm city sweeper truck

City sweeper truck is suitable for brushing, suction and transportation of dusts, leaves, mud, soil, sand, stone chips, gravels and other small particles on the ground of city roads and areas. This unit shall be suitable for dry type cleaning job as well as dust suppression with water spray in the road side and narrow lanes.

The JMC dust suction truck is composed by chassis, auxiliary engine, air blower, magnetic valve, debris bin, water bin, sweeping system, suction system, water sprinkling system, hydraulic system, electrical control system, etc.

Four brooms Sweeping system and suction system combine working, high efficient. Water sprinklers equipped on brooms, suction nozzle, effective dust suppression.


SPECIFICATIONS :

Chassis specifications:  chassis model JX1061TG25, 5 speeds gearbox, with power steering, A/C, automatically air-cut brake, tire spec 7.00R16, wheelbase 3360mm, with ABS,  JMC engine 115hp .

Body specifications: Square body, aluminium alloy water tank capacity 1cbm,  aluminium alloy dustbin capacity 5cbm, auxiliary  diesel engine ISUZU brand 75hp, maintenance-free fan, disconnect-type clutch,  with four sweepers,  Schneider control switch,  tail LED arrow light, manual pump emergency system, famous brand pulse gauge & pulse valve.

Optional configurations:

1. Cambered body

2. Snow shovel

3. Dustbin self-cleaning function

4. Water cannon

Files with vehicle:  basic tool & accessories , english vesion manual book, operation vedio..


VEHICLE  PARAMETERS  :

City Sweeper Truck JMC

( 5CBM dustbin & 1 CBM water tank )

General Vehicle Brand CLW
Chassis Brand JMC
Overall Dimension 6230 * 2000 * 2420 mm
GVW / Kerb Weight 5880kg / 5300kg
Cab Cab Capacity 2 persons allowed
Air Conditioner W/ air conditioner
Engine Fuel Type Diesel
Engine Brand JMC
Power 115Ps (85KW)
Displacement 2771 ml
Emission Standard Euro V
Chassis Drive Type 4X2, left or right hand drive
Transmission 5 speed  gear box, no overhaul within 500,000km
Wheelbase/No. of axle 3360 mm / 2
Tyre Specification 7.00R16
Tyre Number 6 tyres and 1 spare tyre
Max Speed 99 km/h
Paint Metallic paint
Superstructure Water Tank Aluminium alloy
Dustbin Capacity 5CBM
Dustbin Material Aluminium alloy
Water Tank Capacity 1000 Litres (About 300gallons)
Sweeping Capacity 50,000 m³/h-100,000m³/h
Sweeping Speed 3-15 km/h
Max Sweeping Width 3500mm
Brooms 2 sets at each side
Rear water sprinklers 12pcs
Auxiliary Engine ISUZU  engine
75HP (50KW), super powerful
All standard accessories: Warning lights, music alarm, basic tool kit, English manual--
Optional ** Backup alarm can be equipped.
** Camera can be equipped.
** Air blower can be of stainless steel.


VEHICLE PICTURES  :

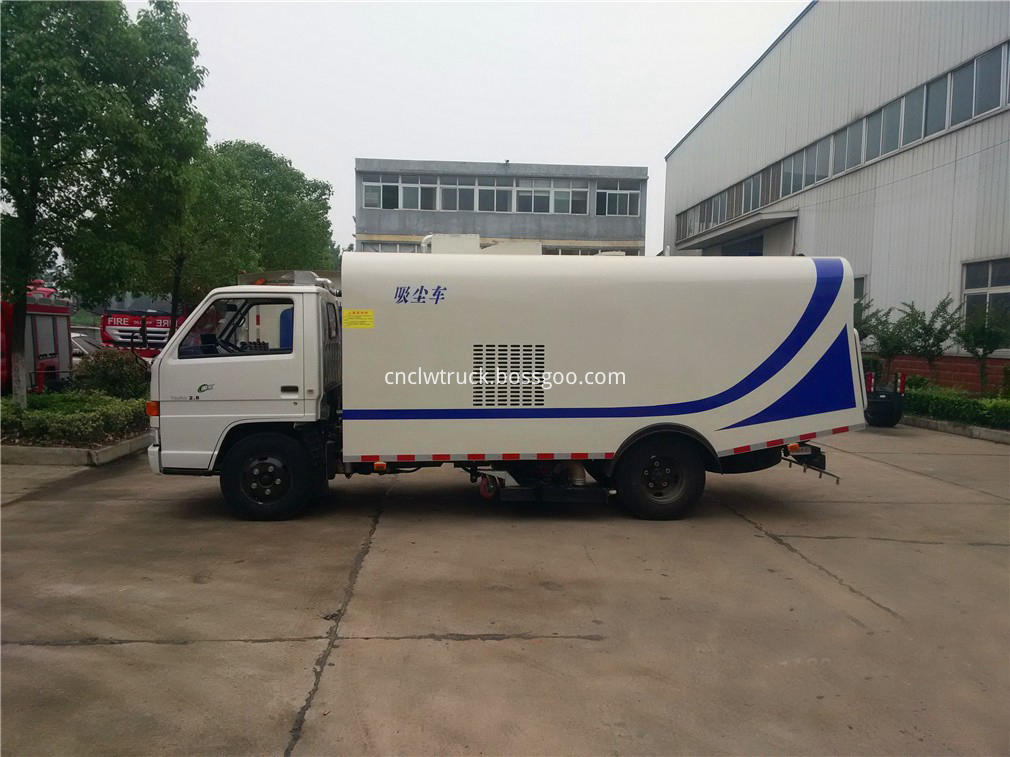

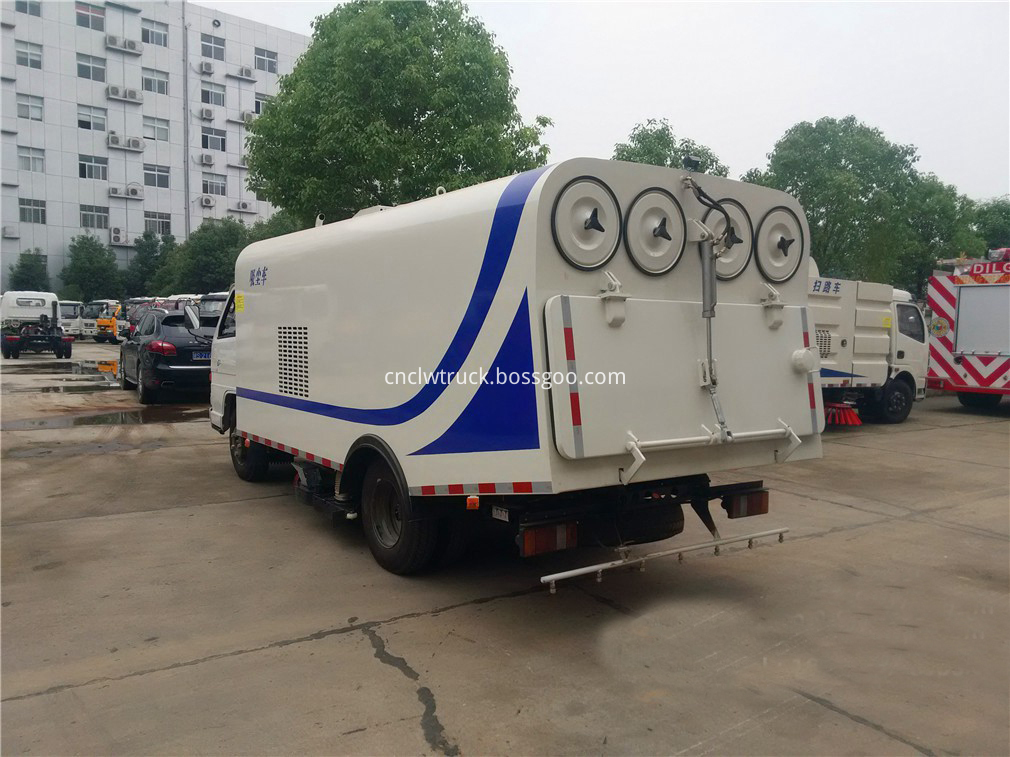

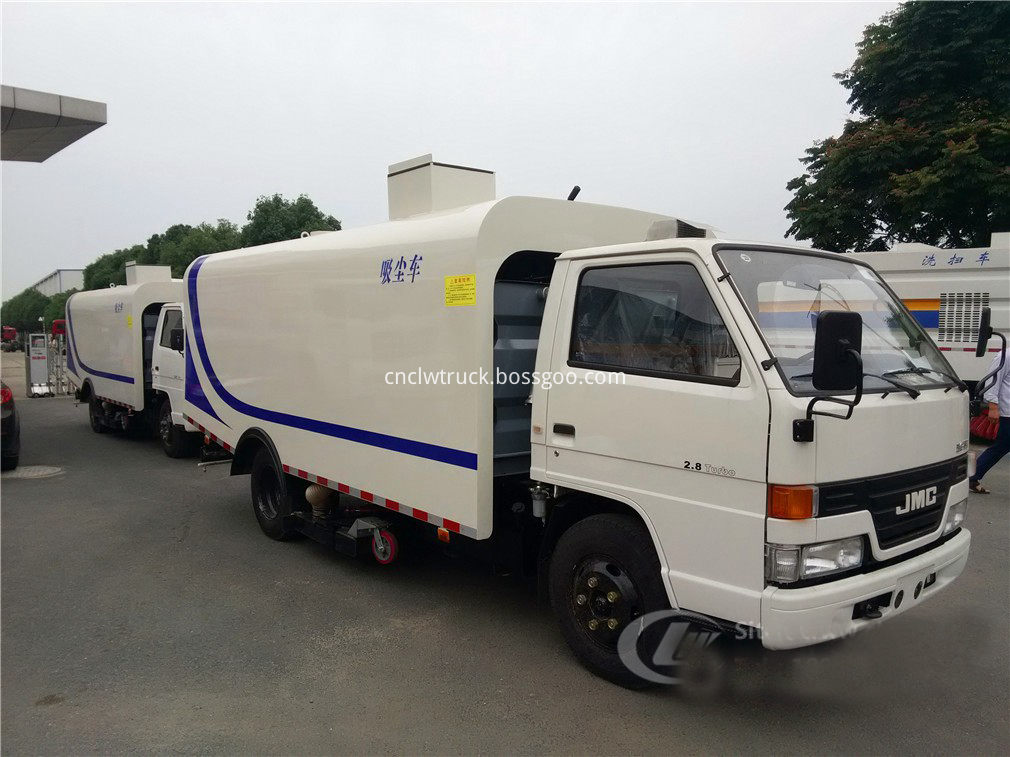

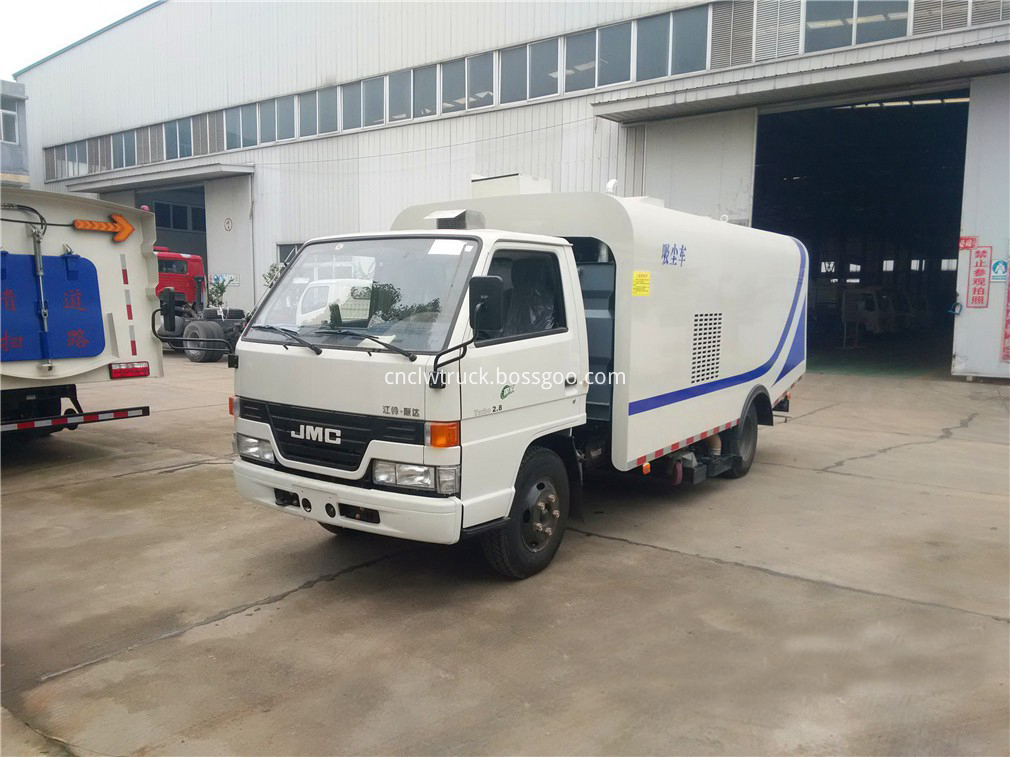

Pictures of  JMC City Sweeper Truck

sweeper truck in china 5

sweeper truck in china 1

sweeper truck in china 4

sweeper truck in china 3


Advantages of  Our City Sweeper truck

road sweeper features LOGO


City Sweeper Truck in action :


road sweep truck clean leaves 2

(City Sweeper Truck clean leaves 1)

Road Sweep Truck Clean Leaves

(City Sweeper Truck clean leaves 2)

road sweep truck suction water

(City Sweeper Truck suction water)

road sweep truck suction coal cinder

(road sweeper trucks suction coal  cinder)

road sweep truck works on road

(road sweeper trucks works on road)

road sweep truck works in construction site

(road sweeper trucks work in construction site)

road sweep truck works in coal yard

(road sweeper trucks  work in coal yard)

We are chinese top one brand new special purpose trucks manufacturer, we have over 15 years production experiences and more than 8000 employees, export volume per year 60,000,000 dollars, 3000set/year.

Welcome to visit us and looking forward to bulid a long win-win business cooperation with u!
