| Payment Type: | L/C,T/T |
|---|---|
| Incoterm: | FOB,CIF,EXW |
| Min. Order: | 1 Set/Sets |
| Delivery Time: | 30 Days |
Basic Info
Model No.: CLW5081P71K1C5ZV
Type: Wet-type
Payload: 20T
Transmission Type: Manual
Engine Type: 4 Stroke
Fuel: Diesel
Emission Standard: Euro 4
Certification: CCC, ISO9000
Condition: New
Chassis Brand: JAC
Additional Info
Packaging: Nude packing,Waxing before shipping
Productivity: 30000sets/year
Brand: CLW
Transportation: Ocean,Land
Place of Origin: CHINA
Supply Ability: 300sets/month
Certificate: SGS,ISO9001, CNAS,CCC
HS Code: 8705909990
Port: SHANGHAI PORT,CHINA,Any Other Port in China
Product Description
Brand New HOT JAC 6cbm sweeper road truck
Sweeper road truck is suitable for brushing, suction and transportation of dusts, leaves, mud, soil, sand, stone chips, gravels and other small particles on the ground of city roads and areas. This unit shall be suitable for dry type cleaning job as well as dust suppression with water spray in the road side and narrow lanes.
The JAC dust suction truck is composed by chassis, auxiliary engine, air blower, magnetic valve, debris bin, water bin, sweeping system, suction system, water sprinkling system, hydraulic system, electrical control system, etc.
Four brooms Sweeping system and suction system combine working, high efficient. Water sprinklers equipped on brooms, suction nozzle, effective dust suppression.
SPECIFICATIONS :
Chassis specifications: chassis model HFC1081P71K, 5 speeds gearbox, with power steering, A/C, automatically air-cut brake, tire spec 7.00R16, wheelbase 3308mm, with ABS, CHAOCHAI engine 117hp .
Body specifications: Square body, aluminium alloy water tank capacity 1cbm, aluminium alloy dustbin capacity 5cbm, auxiliary diesel engine ISUZU brand 75hp, maintenance-free fan, disconnect-type clutch, with four sweepers, Schneider control switch, tail LED arrow light, manual pump emergency system, famous brand pulse gauge & pulse valve.
Optional configurations:
1. Cambered body
2. Snow shovel
3. Dustbin self-cleaning function
4. Water cannon
Files with vehicle: basic tool & accessories , english vesion manual book, operation vedio..
VEHICLE PARAMETERS :
Sweeper Road Truck JAC
( 5CBM dustbin & 1 CBM water tank )
General
Vehicle Brand
CLW
Chassis Brand
JAC
Overall Dimension
6680 * 2120 * 2570 mm
GVW / Kerb Weight
8280kg / 6520kg
Cab
Cab Capacity
2 persons allowed
Air Conditioner
W/ air conditioner
Engine
Fuel Type
Diesel
Engine Brand
WEICHAI
Power
130Ps (96KW)
Displacement
2970 ml
Emission Standard
Euro V
Chassis
Drive Type
4X2, left or right hand drive
Transmission
5 speed gear box, no overhaul within 500,000km
Wheelbase/No. of axle
3308 mm / 2
Tyre Specification
7.00R16
Tyre Number
6 tyres and 1 spare tyre
Max Speed
99 km/h
Paint
Metallic paint
Superstructure
Water Tank
Aluminium alloy
Dustbin Capacity
5CBM
Dustbin Material
Aluminium alloy
Water Tank Capacity
1000 Litres (About 300gallons)
Sweeping Capacity
50,000 m³/h-100,000m³/h
Sweeping Speed
3-15 km/h
Max Sweeping Width
3500mm
Brooms
2 sets at each side
Rear water sprinklers
12pcs
Auxiliary Engine
ISUZU engine
75HP (50KW), super powerful
All standard accessories: Warning lights, music alarm, basic tool kit, English manual--
Optional
** Backup alarm can be equipped.
** Camera can be equipped.
** Air blower can be of stainless steel.
VEHICLE PICTURES :

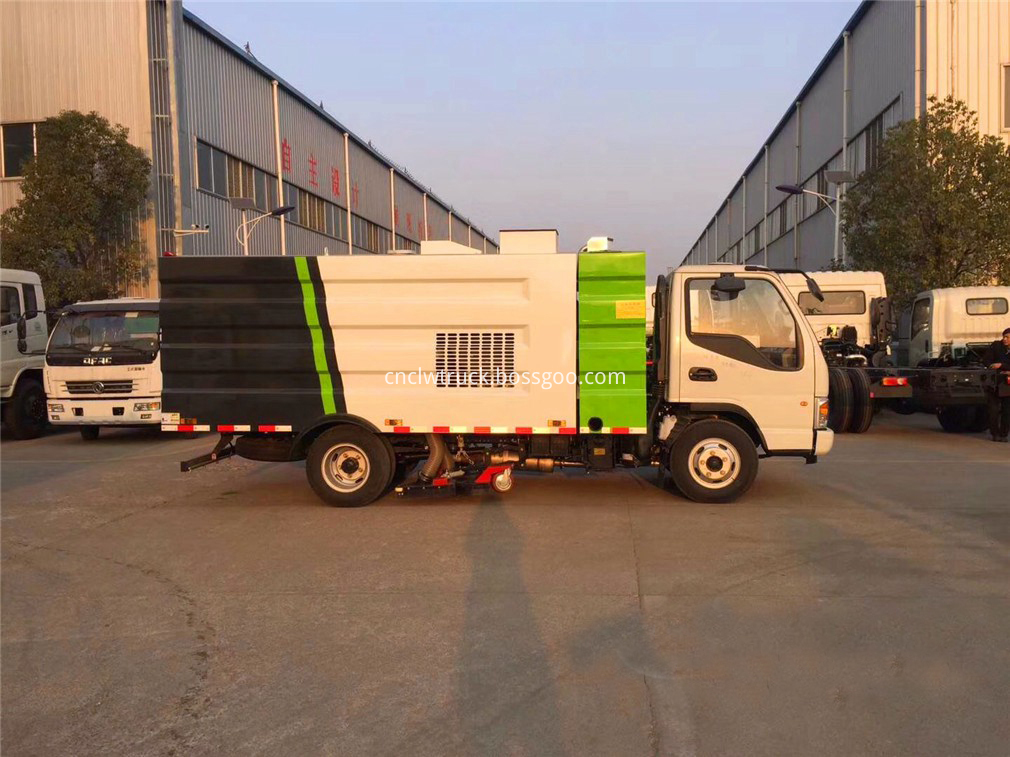

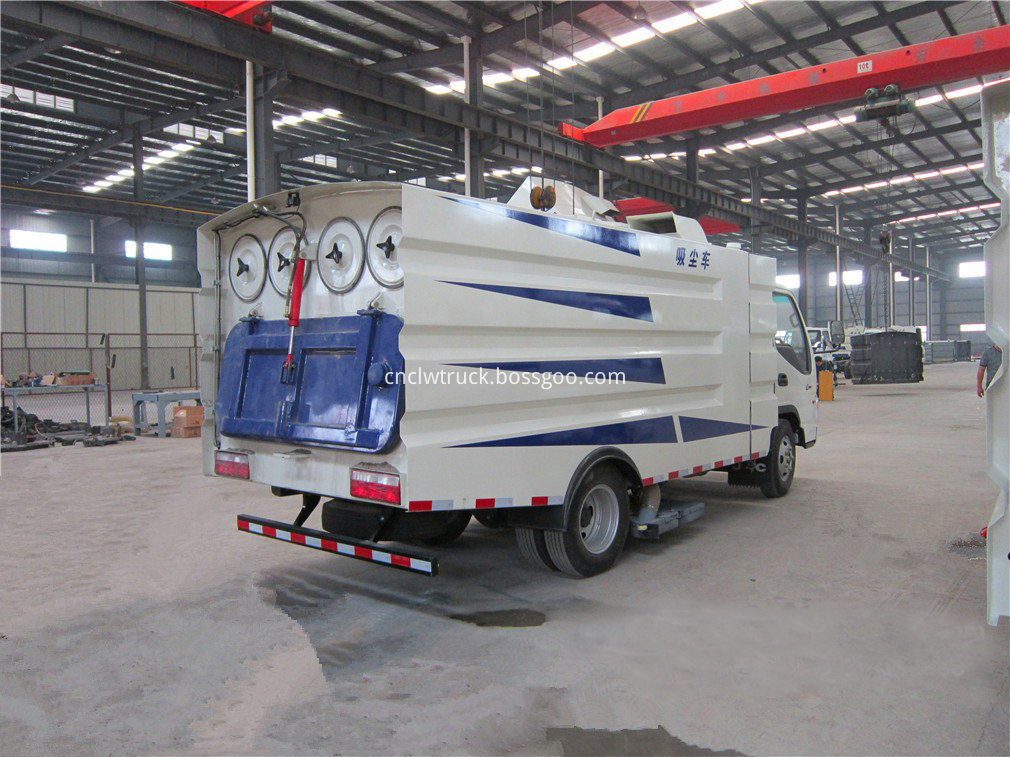

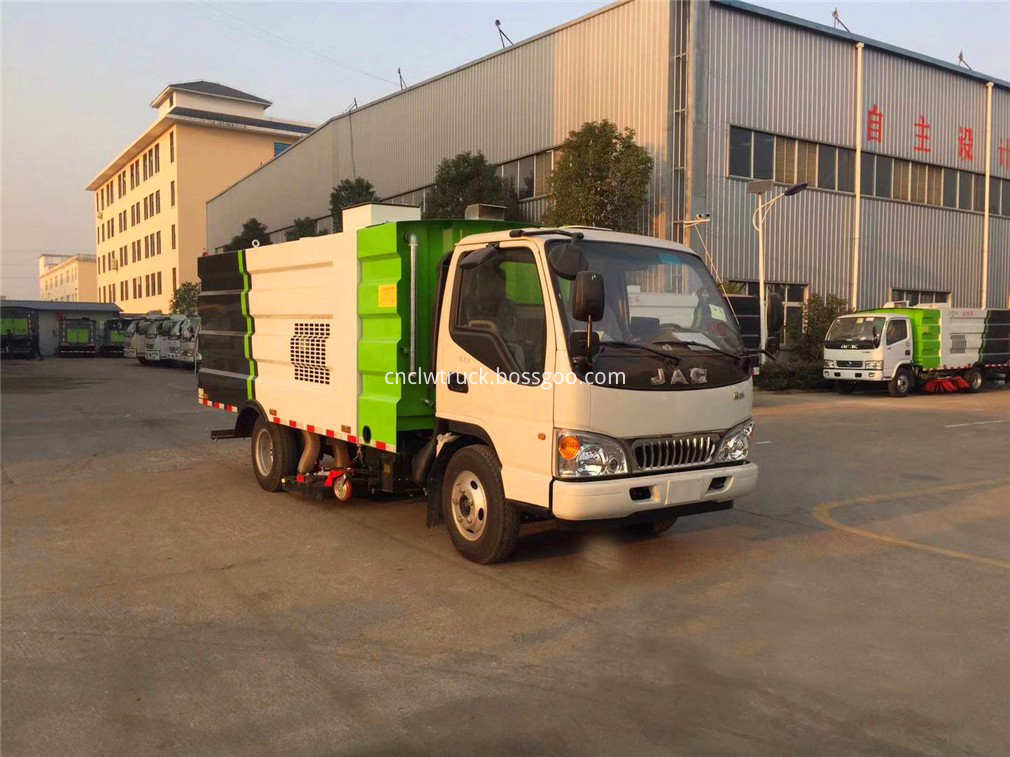

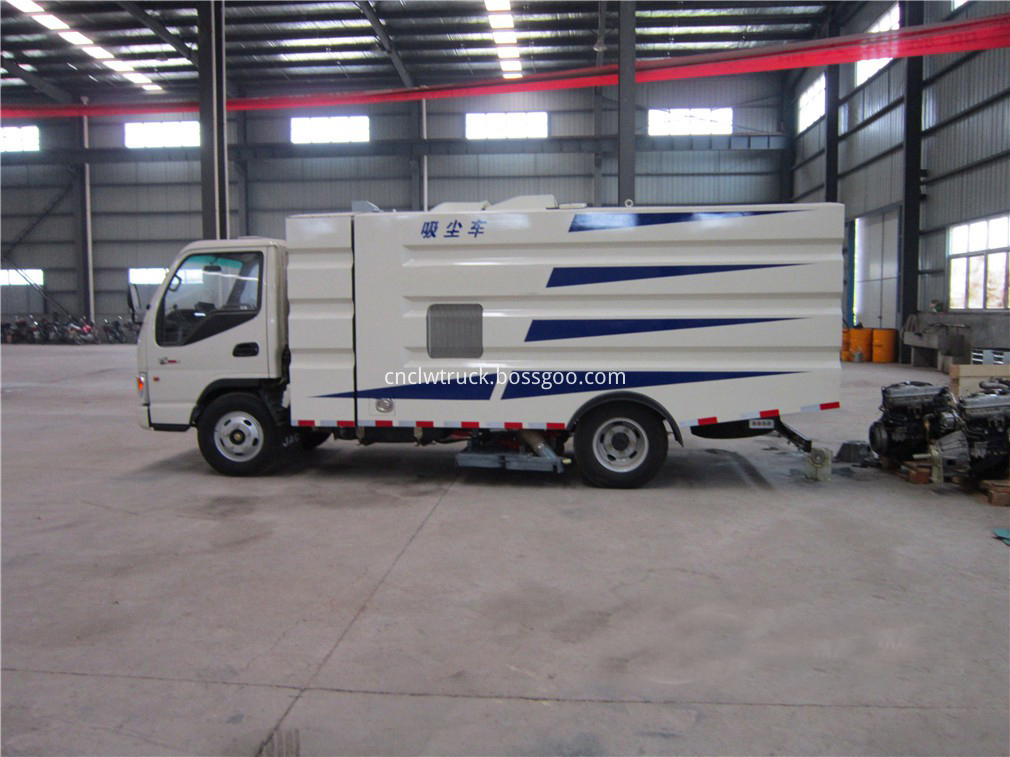

Pictures of JAC Sweeper Road Truck
DETAILS :
Advantages of Our Commercial road sweeper truck
Street sweeper truck in action :
(Commercial road sweeper truck clean leaves 1)
(Commercial road sweeper truck clean leaves 2)
(road sweeper trucks suction water)
(road sweeper trucks suction coal cinder)
(road sweeper trucks works on road)
(road sweeper trucks work in construction site)
(road sweeper trucks work in coal yard)
We are chinese top one brand new special purpose trucks manufacturer, we have over 15 years production experiences and more than 8000 employees, export volume per year 60,000,000 dollars, 3000set/year.
Welcome to visit us and looking forward to bulid a long win-win business cooperation with u!
