| Payment Type: | L/C,T/T |
|---|---|
| Incoterm: | FOB,CIF,EXW |
| Min. Order: | 1 Set/Sets |
| Delivery Time: | 30 Days |
Basic Info
Model No.: CLW5160TXC5
Type: Wet-type
Payload: 30T
Transmission Type: Manual
Engine Type: 4 Stroke
Fuel: Diesel
Emission Standard: Euro 4
Certification: CCC, ISO9000
Condition: New
Chassis Brand: DONGFENG
Additional Info
Packaging: Nude packing,Waxing before shipping
Productivity: 30000sets/year
Brand: CLW
Transportation: Ocean,Land
Place of Origin: CHINA
Supply Ability: 300sets/month
Certificate: SGS,ISO9001, CNAS,CCC
HS Code: 8705909990
Port: SHANGHAI PORT,CHINA,Any Other Port in China
Product Description
Brand New Dongfeng tianjin 12cbm dust sweeper truck
Dust Sweeper Truck is suitable for brushing, suction and transportation of dusts, leaves, mud, soil, sand, stone chips, gravels and other small particles on the ground of city roads and areas. This unit shall be suitable for dry type cleaning job as well as dust suppression with water spray in the road side and narrow lanes.
The dust suction truck is composed by chassis, auxiliary engine, air blower, magnetic valve, debris bin, water bin, sweeping system, suction system, water sprinkling system, hydraulic system, electrical control system, etc.
Four brooms Sweeping system and suction system combine working, high efficient. Water sprinklers equipped on brooms, suction nozzle, effective dust suppression.
SPECIFICATIONS :
Chassis specifications: chassis model DFL1160BX1V , 6 speeds gearbox, with power steering, A/C, automatically air-cut brake, tire spec 9.00-20, wheelbase 4700mm, with ABS, Cummins engine 180hp
Body specifications: Square body, aluminium alloy water tank capacity 2.5cbm, aluminium alloy dustbin capacity 8cbm, auxiliary diesel engine Cummins brand 140hp, maintenance-free fan, disconnect-type clutch, with four sweepers, Schneider control switch, tail LED arrow light, manual pump emergency system, famous brand pulse gauge & pulse valve.
Optional configurations:
1. Cambered body
2. Snow shovel
3. Dustbin self-cleaning function
4. Water cannon
Files with vehicle: basic tool & accessories , english vesion manual book, operation vedio..
VEHICLE PARAMETERS :
Dust Sweeper Truck Dongfeng
( 8 CBM dustbin & 2.5 CBM water tank )
General
Vehicle Brand
CLW
Chassis Brand
Dongfeng
Overall Dimension
7930 * 2500 * 3120 mm
GVW / Kerb Weight
15800kg / 8900kg
Cab
Cab Capacity
3 persons allowed, with one sleeper
Air Conditioner
W/ air conditioner
Engine
Fuel Type
Diesel
Engine Brand
CUMMINS
Power
180Ps (132KW)
Displacement
4500 ml
Emission Standard
Euro V
Chassis
Drive Type
4X2, left or right hand drive
Transmission
6 speed gear box, no overhaul within 500,000km
Wheelbase/No. of axle
4500 mm / 2
Tyre Specification
9.00-20
Tyre Number
6 tyres and 1 spare tyre
Max Speed
99 km/h
Paint
Metallic paint
Superstructure
Water Tank
Aluminium alloy
Dustbin Capacity
8 CBM
Dustbin Material
Aluminium alloy
Water Tank Capacity
2500 Litres (About 750gallons)
Sweeping Capacity
50,000 m³/h-100,000m³/h
Sweeping Speed
3-15 km/h
Max Sweeping Width
3500mm
Brooms
2 sets at each side
Rear water sprinklers
12pcs
Auxiliary Engine
cummins engine
140HP (102KW), super powerful
All standard accessories: Warning lights, music alarm, basic tool kit, English manual--
Optional
** Backup alarm can be equipped.
** Camera can be equipped.
** Air blower can be of stainless steel.
VEHICLE PICTURES :

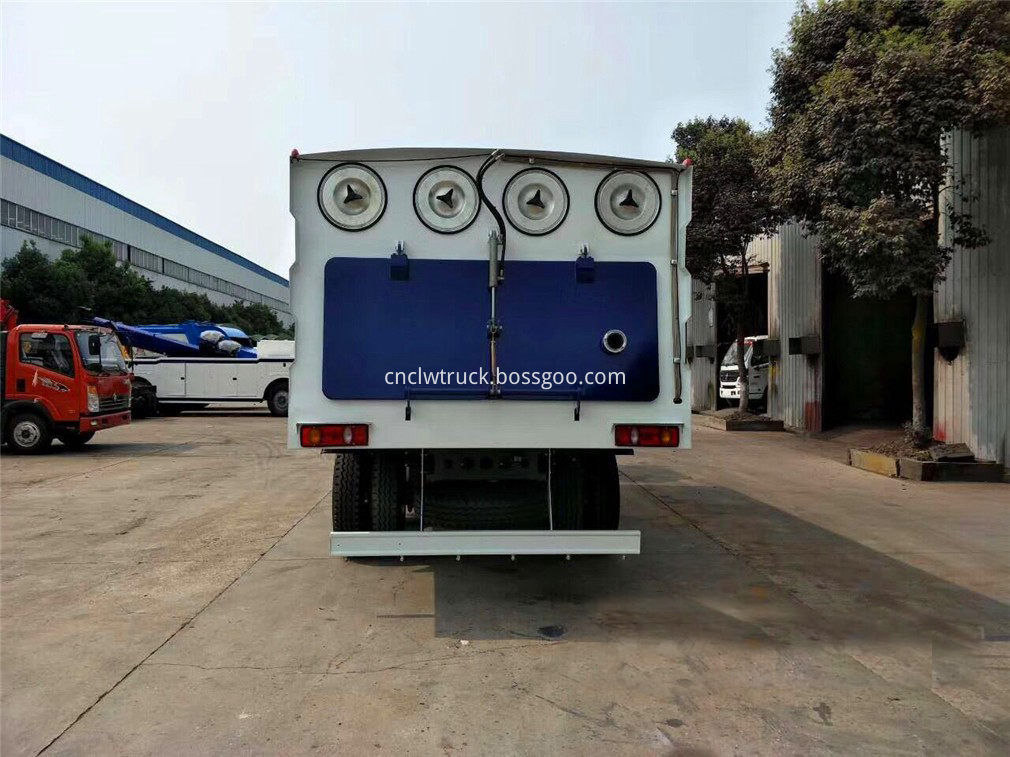

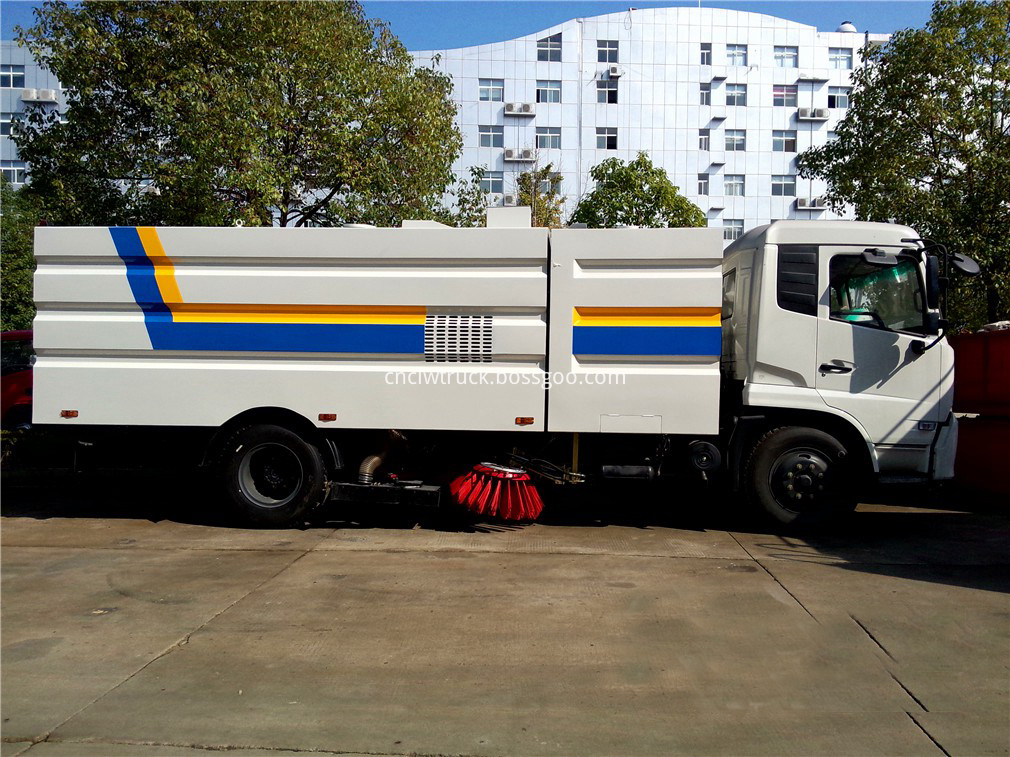

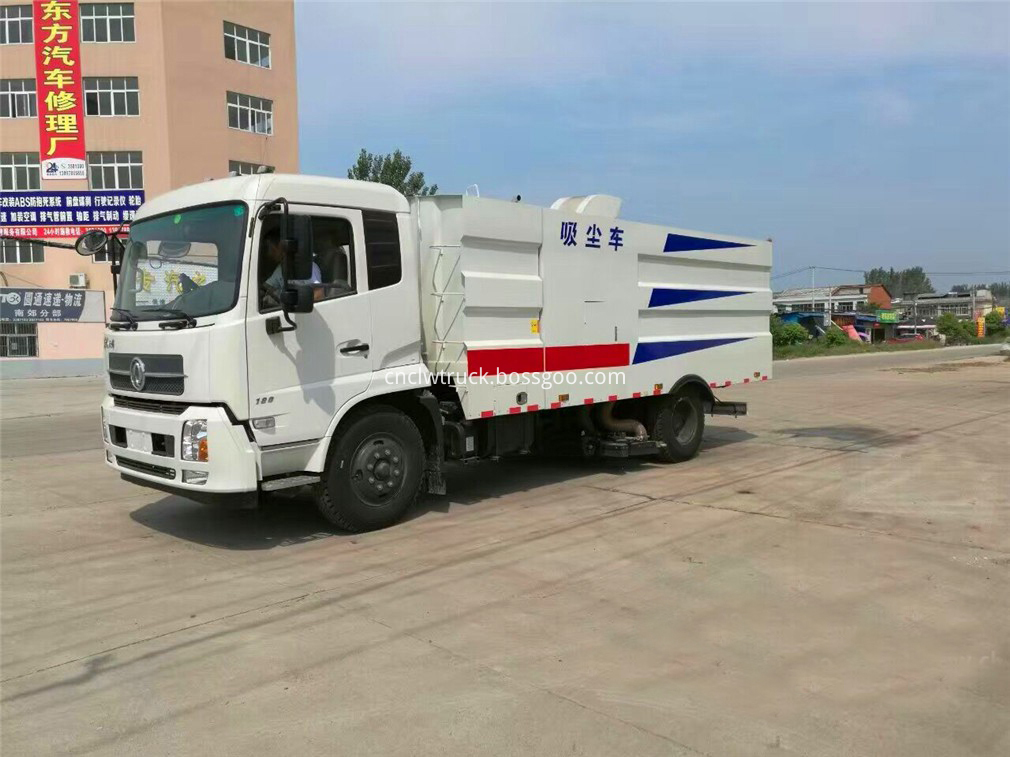

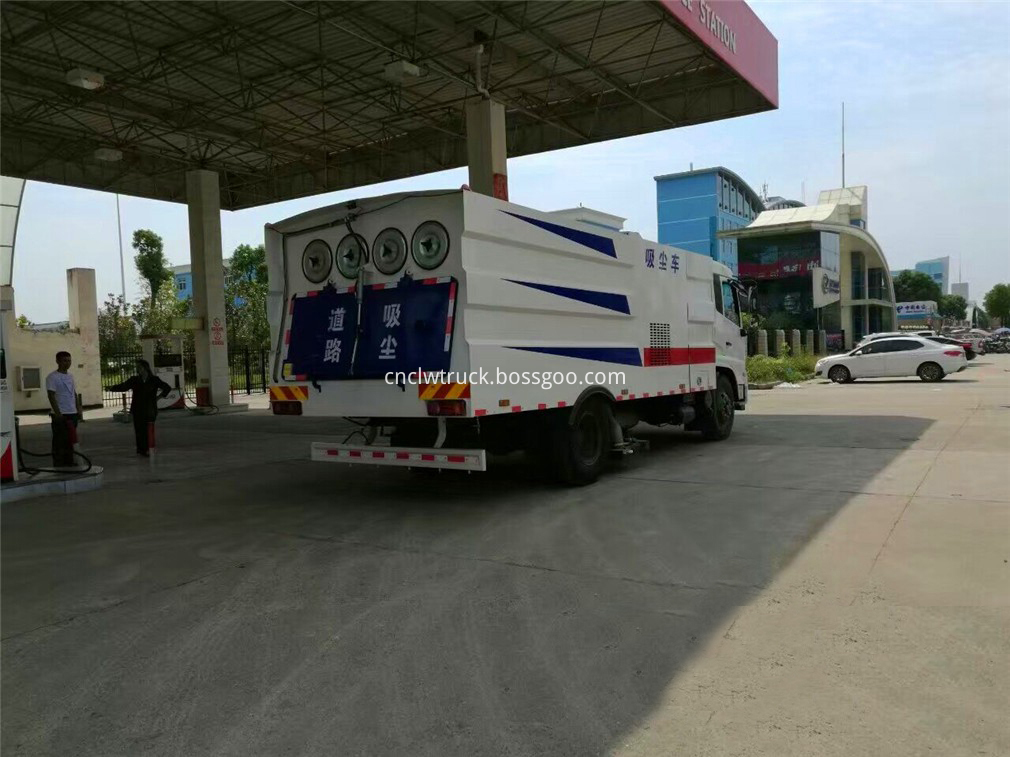

Pictures of Dongfeng Dust Sweeper Truck
DETAILS :
Advantages of Our dust sweeper truck
Street sweeper truck in action :
(Commercial road sweeper truck clean leaves 1)
(Commercial road sweeper truck clean leaves 2)
(road sweeper trucks suction water)
(road sweeper trucks suction coal cinder)
(road sweeper trucks works on road)
(road sweeper trucks work in construction site)
(road sweeper trucks work in coal yard)
We are chinese top one brand new special purpose trucks manufacturer, we have over 15 years production experiences and more than 8000 employees, export volume per year 60,000,000 dollars, 3000set/year.
Welcome to visit us and looking forward to bulid a long win-win business cooperation with u!
