SINOTRUCK Biggest Truck Mounted 16Tons Crane

Incoterm: FOB,CIF,EXW
Min. Order: 1 Set/Sets
Delivery Time: 20 Days

Basic Info

Model No.: CLW5326TMC

Fuel: Diesel

Certification: ISO9000, CCC

Emission Standard: Euro 4

Condition: New

CRANE BRAND: XCMG, SANY, Palfinger,Unic,Tadano Etc...

Additional Info

Packaging: Nude packing,Waxing before shipping

Productivity: 30000sets/year

Brand: CLW

Transportation: Ocean,Land

Place of Origin: CHINA

Supply Ability: 3000sets/month

Certificate: SGS,ISO9001, CNAS,CCC

HS Code: 8704223000

Port: SHANGHAI PORT,CHINA,ANY MAIN PORT IN CHINA

Product Description

Guaranteed 100% SINOTRUCK Biggest Truck Mounted 16Tons Crane for Sale

A Biggest Truck Mounted Crane is a hydraulic crane mounted on a truck which can do loading & unloading work without need of any external crane and manpower. It is an integrated solution for loading, transportation and unloading of the goods.

There are telescopic boom cranes and knuckle boom cranes, covering a wide range of capacities as follows:

Telescopic Boom Crane: 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Ton

Knuckle Boom Crane: 1Ton, 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Ton.

Heavy Duty Crane:50Ton, 80Ton, 120Ton.

The cranes can be of famous brands as Palfinger (Canada), Unic (Japan), Tadano (Japan), XCMG (China top brand), Zoomlion, Sany, etc.


VEHICLE PICTURES :

biggest truck mounted crane

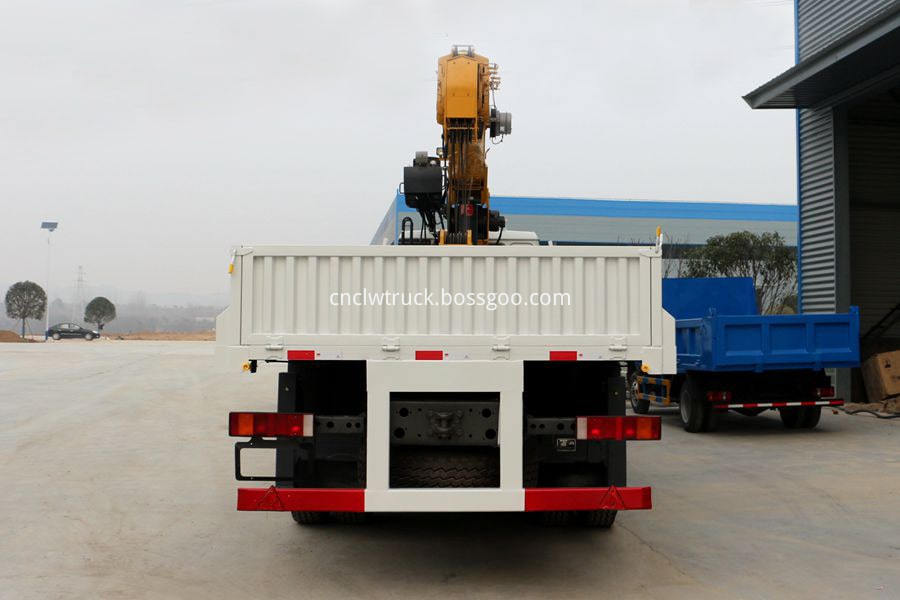

SINOTRUCK Biggest Truck Mounted 16Tons Crane Picture 1

biggest truck mounted crane 3

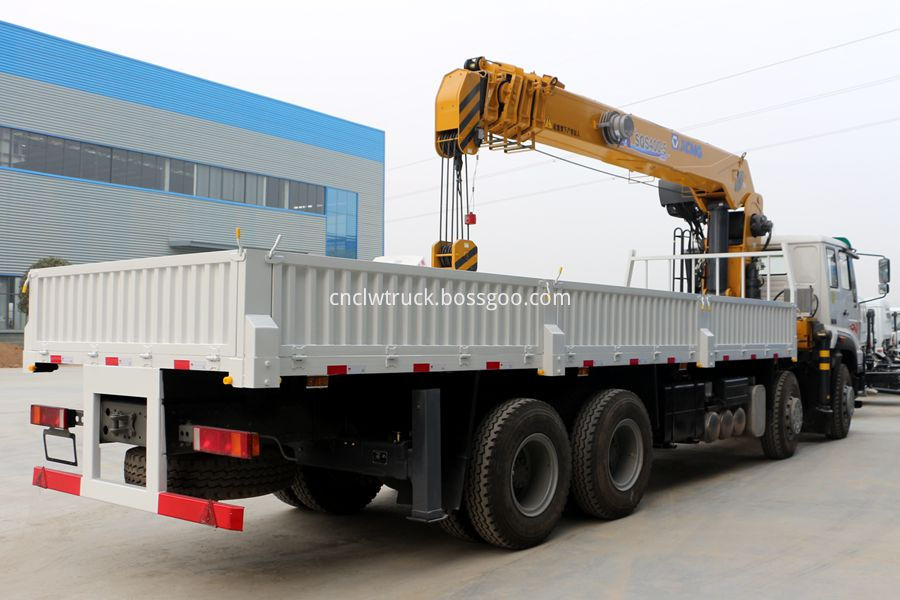

SINOTRUCK Biggest Truck Mounted 16Tons Crane Picture 2

biggest truck mounted crane 1

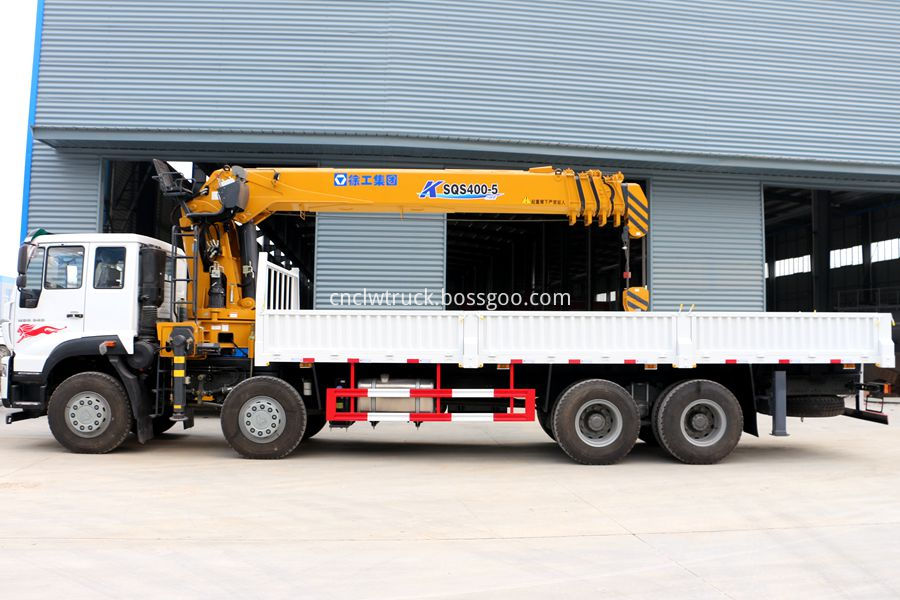

SINOTRUCK Biggest Truck Mounted 16Tons Crane Picture 3

biggest truck mounted crane 4

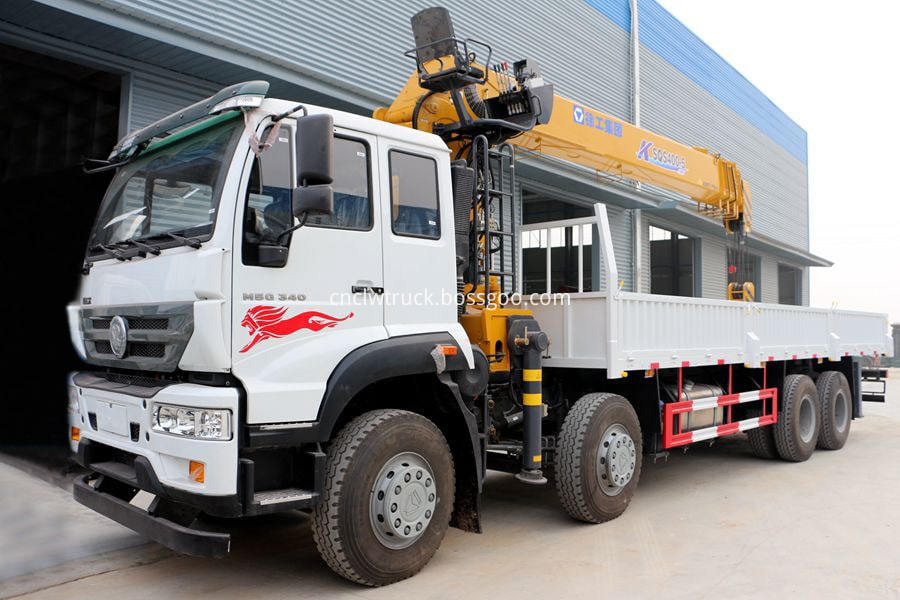

SINOTRUCK Biggest Truck Mounted 16Tons Crane Picture 4

biggest truck mounted crane 2

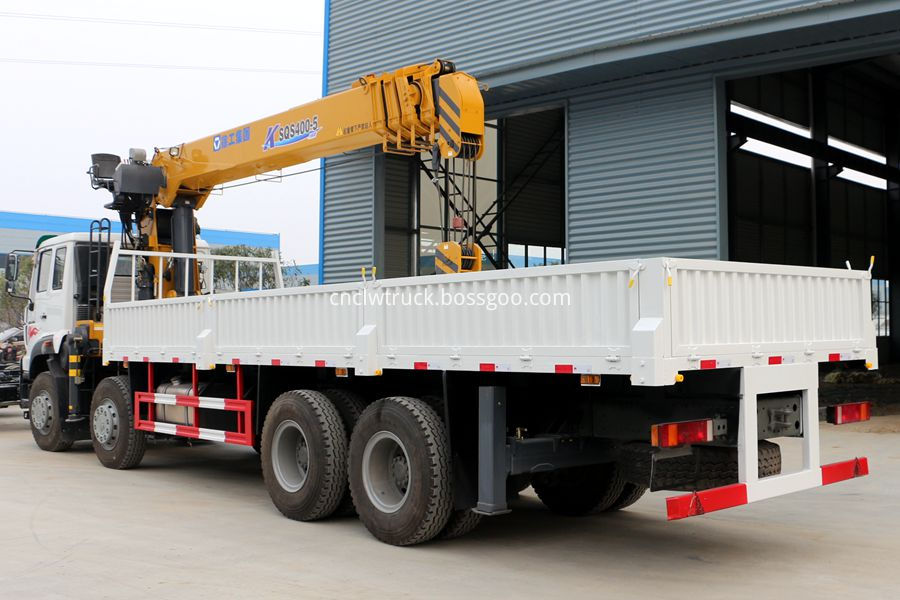

SINOTRUCK Biggest Truck Mounted 16Tons Crane Picture 5




VEHICLE PARAMETERS :

VEHICLE  PARAMETERS

Chassis Brand

SINO Styre

Condition

Brand New

Crane Capacity

14T/16T

Crane Brand

XCMG/SANY

Remote Control

Arm Type

Folding/Telescopic

Cab

M5G

Engine Power/displacement

310HP/6870ml

Gearbox

6 Speed

Overall Size

11.99X2.55X3.98/m

GVW

31000kg

Cargo Size

8.35X2.35X0.6/m

Curb Weight

18800kg

Vehicle Frame

300mm crossbeam

Tire Spec.

11.00R20

Rear Axle Load

10T

Brake System

Air Brake

Wheelbase

2300+4200+1350mm

Allow Passengers

3

Max Speed

90km/h

Drive Model

8*4, LHD/RHD

CRANE  PARAMETERS

XCMG 14T Telescopic Arms

XCMG 16T Telescopic Arms

Max Lifting Capacity(kg)

14000

16000

Min Lifting Capacity(kg)

1200

1000

Working Radius(m)

15.8

18.5

Lifting Height(m)

17.8

20

Crane Weight(kg)

4845

6455

Outriggers Span(mm)

2351-5531

2323-7023

Rotation Angle

360 Degree

360 Degree



CRANE DIAGRAM :


XCMG 16T Crane Parameters


Chassis Configurations: SINOTRUCK M5G Chassis, Single-row Cab , SINO Diesel 310HP Engine, 10 Speed Transmission, 5T Rront Axle, 10T double Rear Axle, 300mm Crossbeam, 11.00R20 Tire, ABS, Air Brake, Power Steering , A/C, Electric Windows


Crane Configurations:

Telescopic boom type, simplex pump or double pump optional,  lifting capacity 16000kg, length of arm5.6m(not extend)-18.5m(full extend), front outriggers ,360 degree rotation; Working radius 18.5m,  lifting height 20m.


Cargo Configurations:

Cargo Size:8350*2350*600/L*W*H/mm, cargo bottom thickness is 5mm/4mm, side thickness is 3mm.


Biggest Truck Mounted Crane Advantages :

1.  Diesel fuel type, power engine,perfect driving performance

2. Wide and high-speed rotary, easy operation, strong load capacity.

3. Unique design, prolonged service life.

4. Wide application range, suitable for landscaping,electric power, petro-chemical industry, advertisement installation, construction site, narrow road, underground garage, service station, 4S shop, field rescue, factory workshop transportation, etc.

customer visit


FAQ

CHENGLI SPECIAL AUTOMOBILE CO

Need more details of our Biggest Truck Mounted Crane welcome to contact us at any time!
