New DFAC HOT Buy Truck Mounted 5tons Crane

Incoterm: FOB,CIF,EXW
Min. Order: 1 Set/Sets
Delivery Time: 20 Days

Basic Info

Model No.: CLW5038TCM

Fuel: Diesel

Certification: ISO9000, CCC

Emission Standard: Euro 4

Condition: New

CRANE BRAND: XCMG, SANY, Palfinger,Unic,Tadano Etc...

Additional Info

Packaging: Nude packing,Waxing before shipping

Productivity: 30000sets/year

Brand: CLW

Transportation: Ocean,Land

Place of Origin: CHINA

Supply Ability: 3000sets/month

Certificate: SGS,ISO9001, CNAS,CCC

HS Code: 8704223000

Port: SHANGHAI PORT,CHINA,ANY MAIN PORT IN CHINA

Product Description

Guaranteed 100% New DFAC HOT Buy Truck Mounted 5tons Crane for Sale

A Truck Mounted Crane is a hydraulic crane mounted on a truck which can do loading & unloading work without need of any external crane and manpower. It is an integrated solution for loading, transportation and unloading of the goods.

There are telescopic boom cranes and knuckle boom cranes, covering a wide range of capacities as follows:

Telescopic Boom Crane: 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Ton

Knuckle Boom Crane: 1Ton, 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Ton.

Heavy Duty Crane:50Ton, 80Ton, 120Ton.

The cranes can be of famous brands as Palfinger (Canada), Unic (Japan), Tadano (Japan), XCMG (China top brand), Zoomlion, Sany, etc.


VEHICLE PICTURES :

buy truck mounted crane

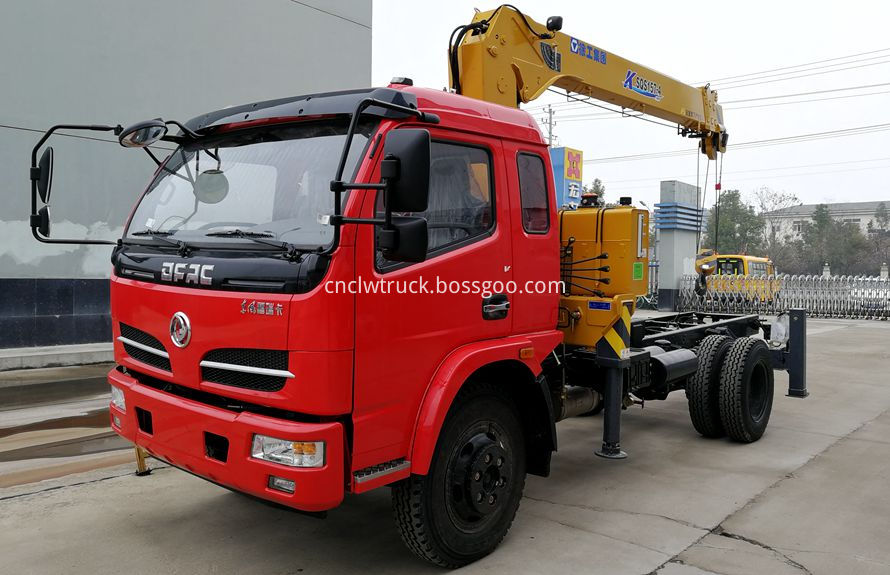

 DFAC HOT Buy Truck Mounted 5tons Crane Picture 1

buy truck mounted crane 1

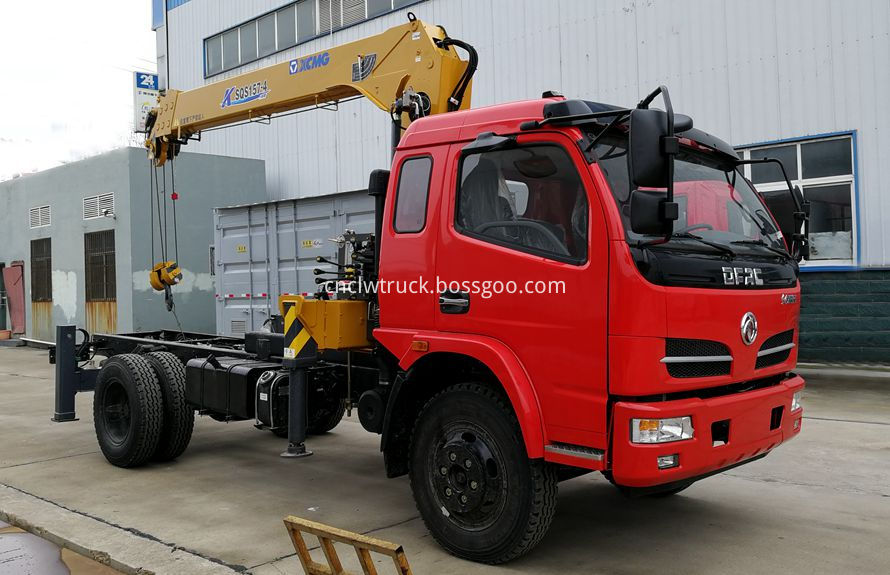

 DFAC HOT Buy Truck Mounted 5tons Crane Picture 2

buy truck mounted crane 2

 DFAC HOT Buy Truck Mounted 5tons Crane Picture 3

buy truck mounted crane 3

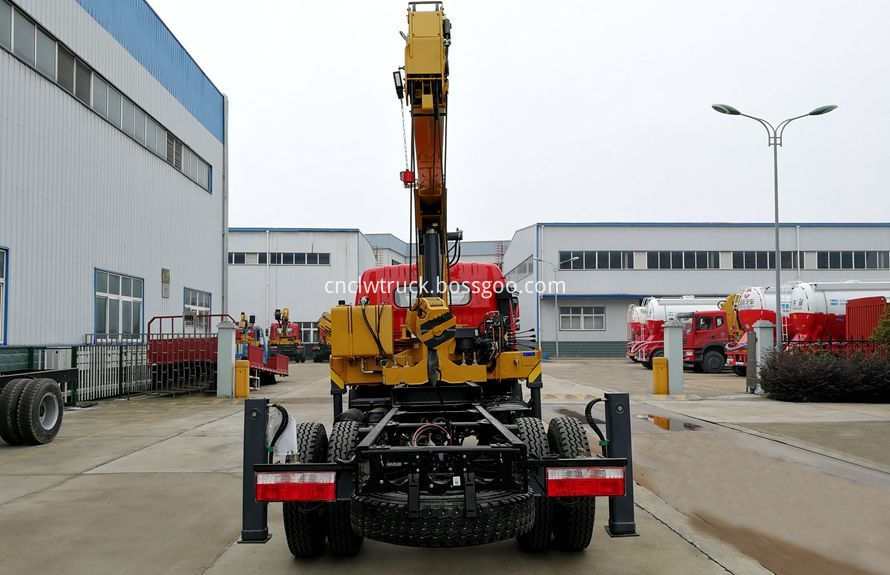

 DFAC HOT Buy Truck Mounted 5tons Crane Picture 4

buy truck mounted crane 4

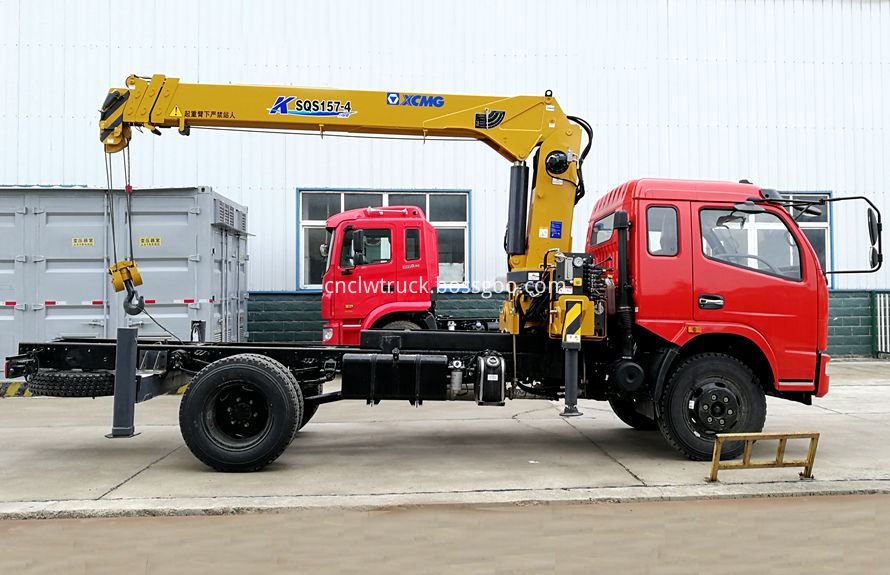

 DFAC HOT Buy Truck Mounted 5tons Crane Picture 5


VEHICLE PARAMETERS :

VEHICLE  PARAMETERS

Chassis Brand

DFAC

Condition

Brand New

Crane Capacity

5T/6.3T

Crane Brand

XCMG/SANY

Remote Control

Arm Type

Folding/Telescopic

Cab

FRK

Engine Power/displacement

140HP/3857ml

Gearbox

5 Speed

Overall Size

7.735X2.475X3.6/m

GVW

14060kg

Cargo Size

4.8X2.3X0.6/m

Curb Weight

6265kg

Vehicle Frame

230mm crossbeam

Tire Spec.

8.25R20

Rear Axle Load

7T

Brake System

Air Brake

Wheelbase

4050mm

Allow Passengers

3

Max Speed

103km/h

Drive Model

4X2, LHD/RHD

CRANE  PARAMETERS

XCMG 5T Telescopic Arms

XCMG 6.3T Telescopic Arms

Max Lifting Capacity(kg)

5000

6300

Min Lifting Capacity(kg)

1050

1200

Working Radius(m)

8.6

8.8

Lifting Height(m)

9.8

9.8

Crane Weight(kg)

2120

2160

Outriggers Span(mm)

2280-5100

2280-5100

Rotation Angle

360 Degree

360 Degree

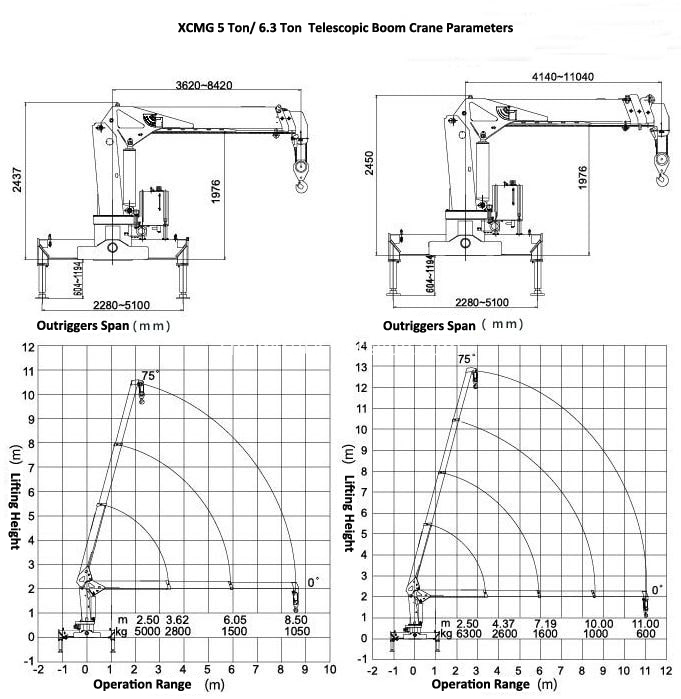

CRANE DIAGRAM :


XCMG 5T 6.3T Crane Parameters


Chassis Configurations: DFAC frk Chassis, Single-row Cab, Xichai Diesel 140HP Engine, 5Speed Transmission, 5T Front Axle 7T Rear Axle, 230mm Crossbeam, 8.25R20 Tire, ABS, Air Brake, Power Steering , A/C, Electric Windows


Crane Configurations:

Telescopic boom type, simplex pump or double pump optional,  lifting capacity 5000kg, length of arm3.62m(not extend)-8.5m(full extend), front outriggers ,360 degree rotation; Working radius 8.6m,  lifting height 9.8m.


Cargo Configurations:

Cargo Size:4800*2300*600/L*W*H/mm, cargo bottom thickness is 5mm/4mm, side thickness is 2mm.


Buy Truck Mounted Crane Advantages :

1.  Diesel fuel type, power engine,perfect driving performance

2. Wide and high-speed rotary, easy operation, strong load capacity.

3. Unique design, prolonged service life.

4. Wide application range, suitable for landscaping,electric power, petro-chemical industry, advertisement installation, construction site, narrow road, underground garage, service station, 4S shop, field rescue, factory workshop transportation, etc.

customer visit


FAQ

CHENGLI SPECIAL AUTOMOBILE CO

Need more details of our Buy Truck Mounted Crane welcome to contact us at any time!
