JAC refrigerator van truck for meat and fish

Basic Info

Model No.: CLW5310XLC5D

Transmission Type: Manual

Emission Standard: Euro 5

Power: Diesel

Load Capacity: 41-50t

Drive Wheel: 8×4

Shape: Double Bridge

Seats: ≤5

Horsepower: 351-450hp

Engine Capacity: ＞8L

Heat Preservation Type: Aluminum Plate

Tire Type: Solid Tire

Tire Certification: ISO, GCC

Condition: New

Chassis Brand: JAC

Additional Info

Packaging: Nude packing,Waxing before shipping

Productivity: 30000sets/year

Brand: CLW

Transportation: Ocean,Land

Place of Origin: CHINA

Supply Ability: 3000sets/month

Certificate: SGS,ISO9001, CNAS,CCC

HS Code: 8704223000

Port: SHANGHAI PORT,CHINA,ANY MAIN PORT IN CHINA

Product Description

Guaranteed 100% 2019 JAC refrigerator van truck for meat and fish for Sale

 Refrigerator van truck for meat and fish is used to carry perishable stuff such as meat, fishes, chicken, ice cream,beef, mutton etc. at specific temperatures.
The cooling device could be of famous brand such as Carrier, Thermoking..
There are two types of power driving ways: one is powered by vehicle engine through PTO, the other is driven by a separately carried power unit.
According to the transport stuff category (fresh or frozen), there are two main lowest temperature unit (-5°and -16°) for your option.
We use high quality van body for temperature reservation. The box surface material could be fiberglass,aluminum or stainless steel. The padding material is polyurethane foam that has super temperature preservation ability with varieties of thickness options.

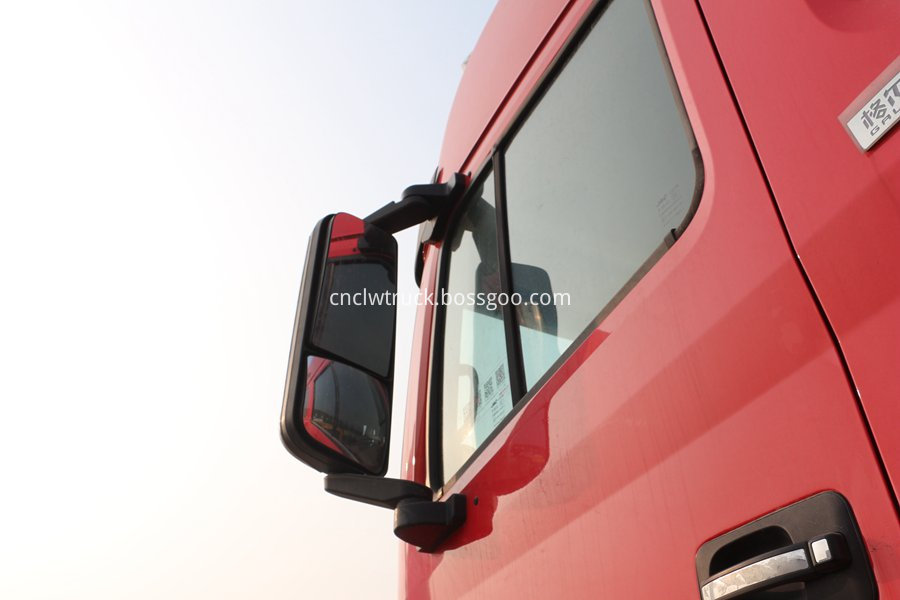

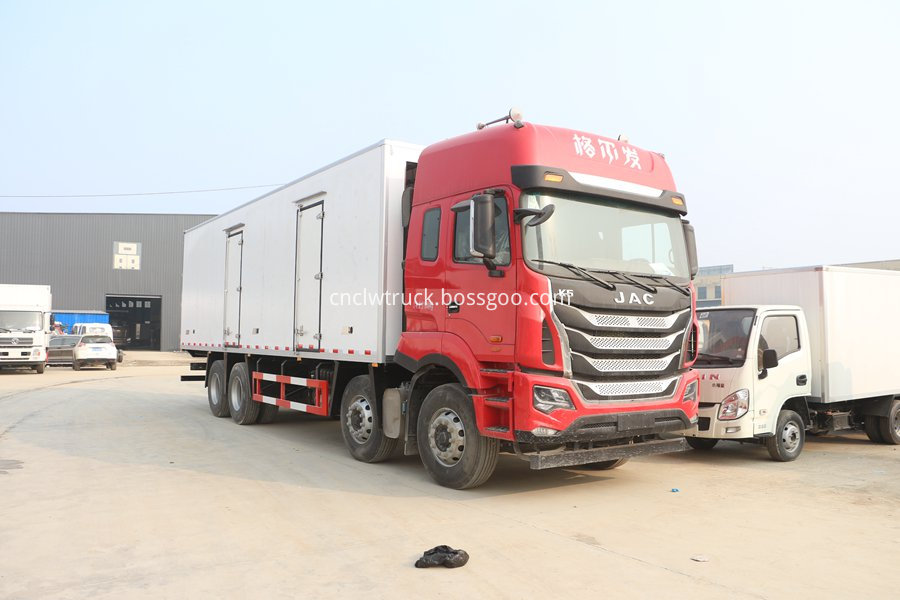

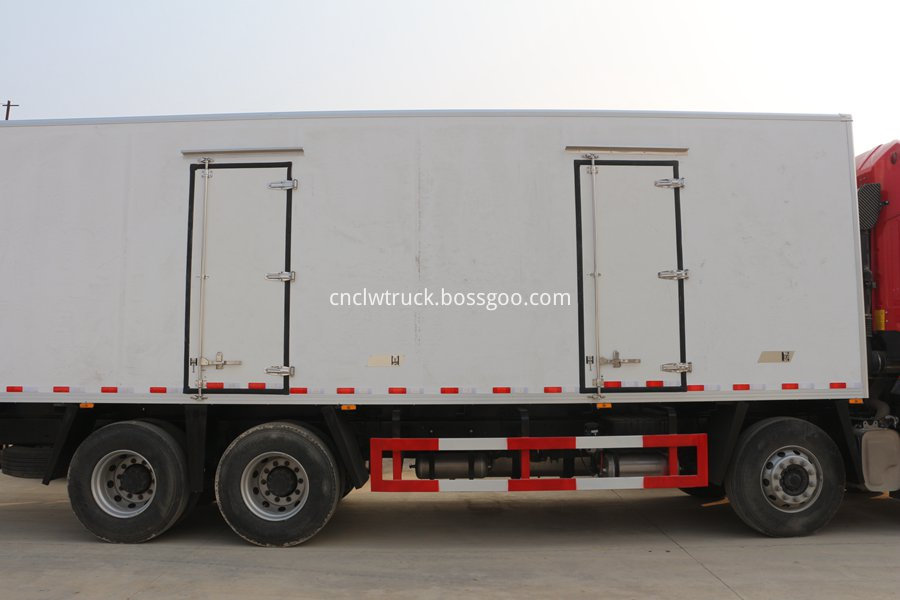

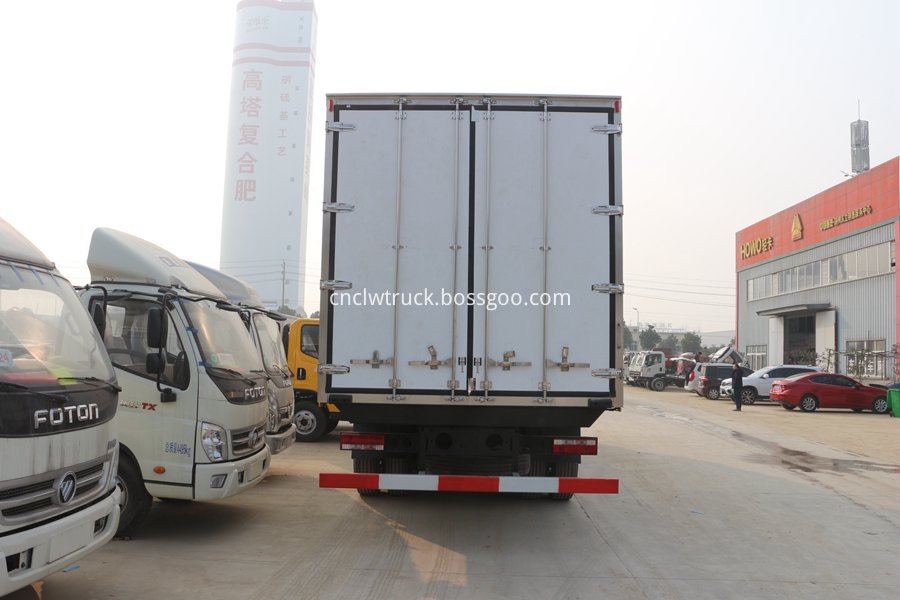

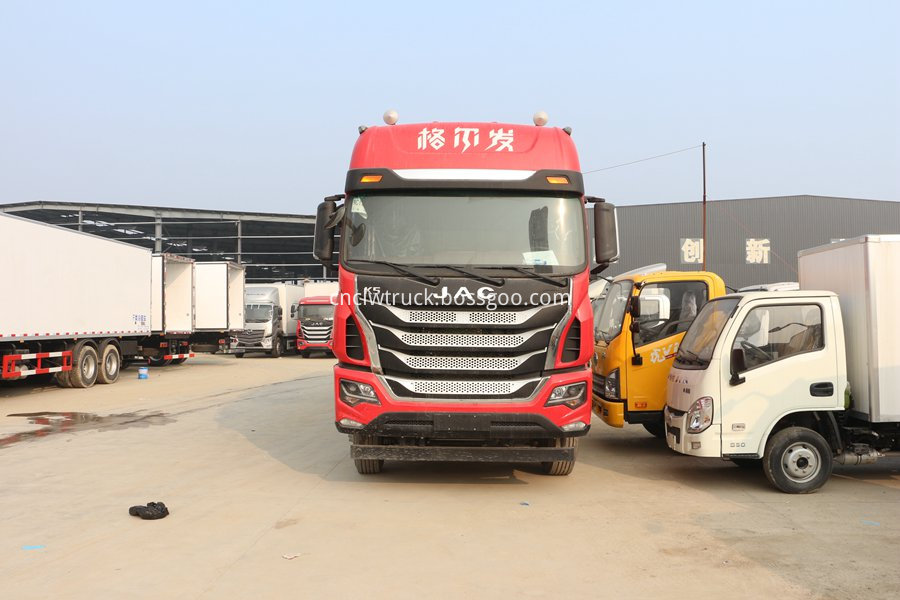

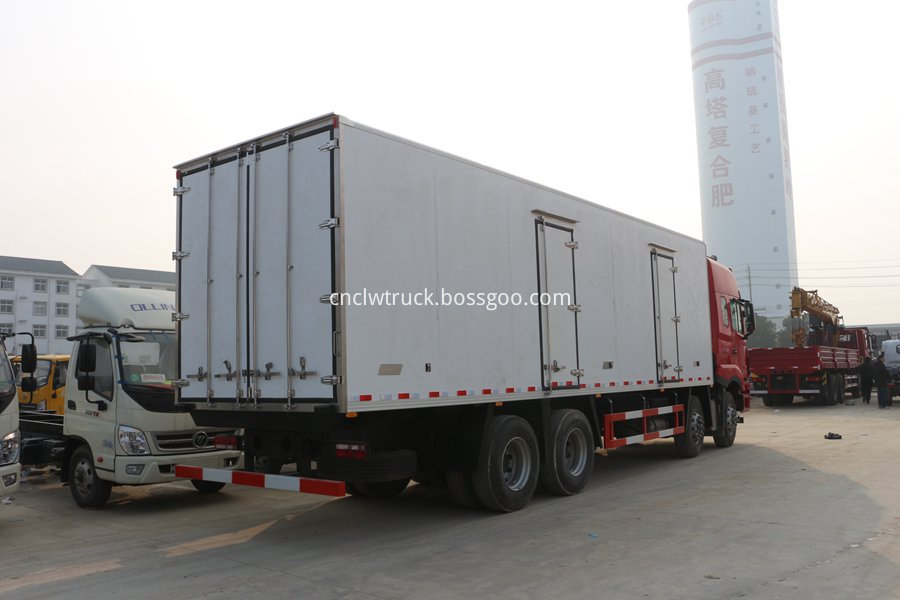

VEHICLE PICTURES :

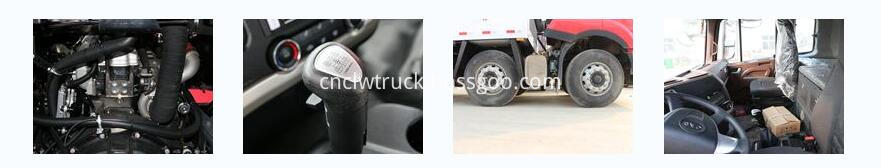

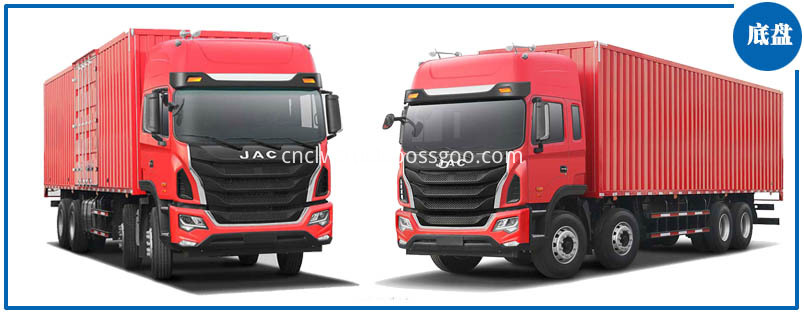

 CHASSIS PARAMETERS

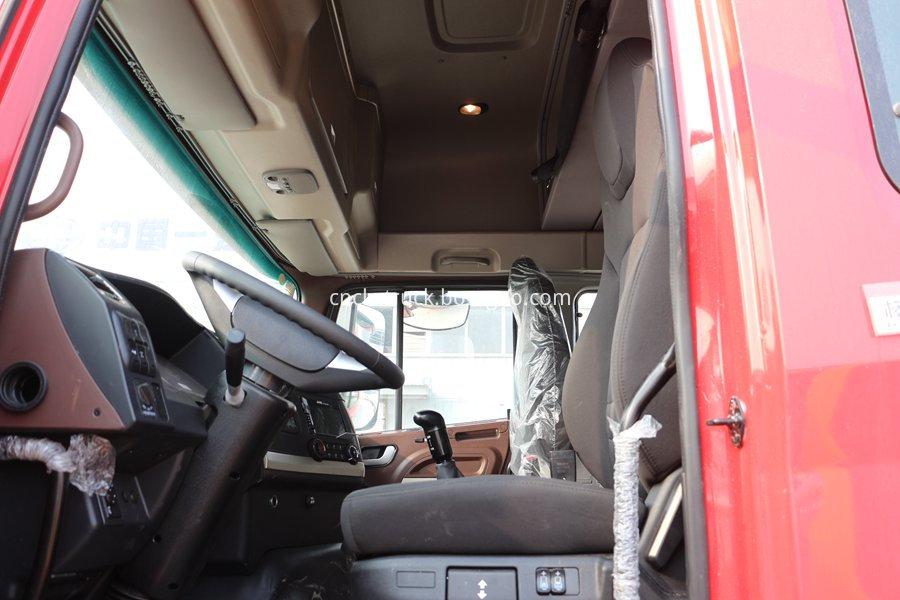

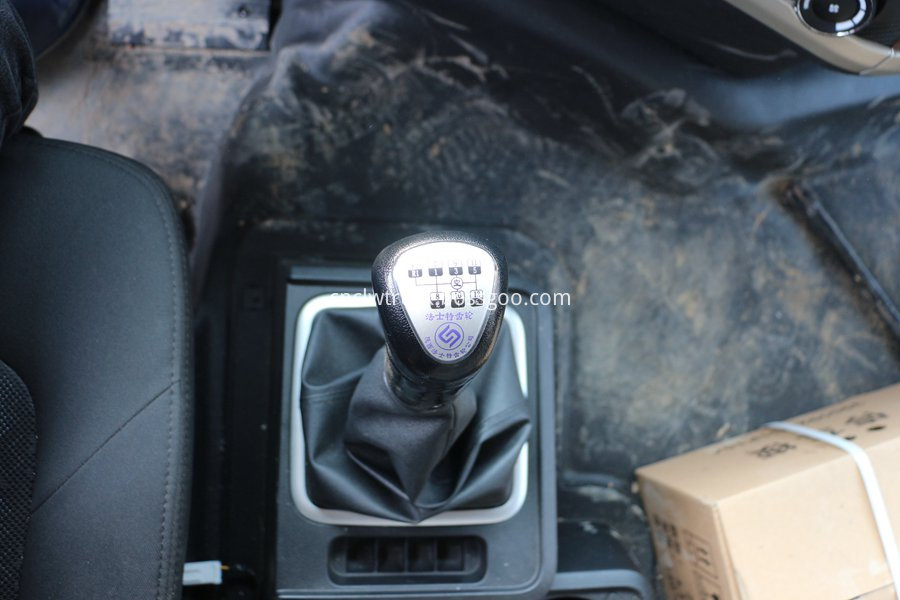

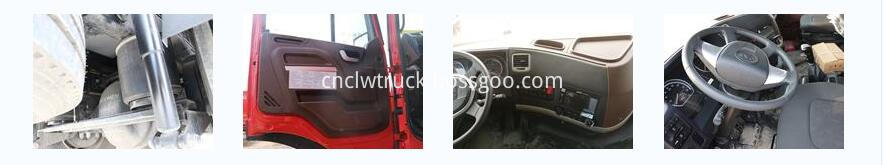

              420HP Diesel                                         12 Speed Gear Box                             12.00R20 Tire                                    CAB

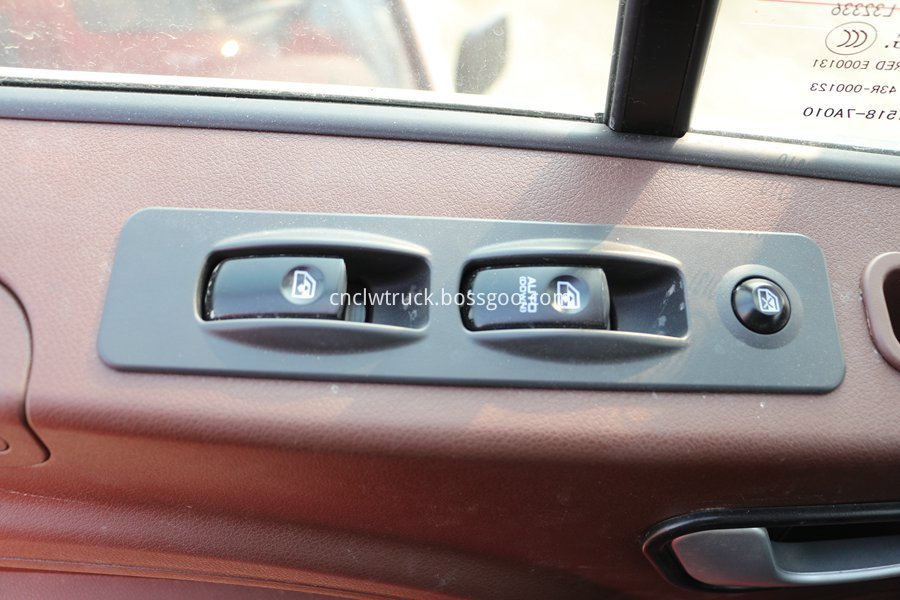

              Rear Axle                                        Electric Windows & Door                               Center Control                             Steering Wheel

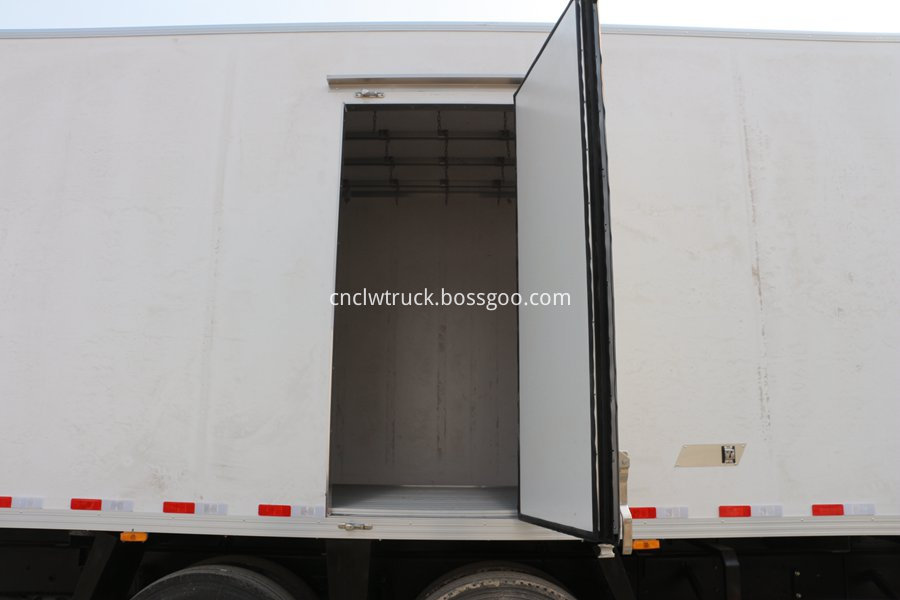

REFRIGERATED BOX PARAMETERS:

1. The refrigerated box adopts polyester wet process board technology and strengthen glass fiber whole wood frame structure, fully enclosed polyurethane plate bonding method.

2. Material of box: inner & outer surface adopt of  2.2mm high quality glass fiber reinforced plastics, the intermediate insulation material adopts imported polyurethane. Thichness of box body 80mm, door thickness is 80mm.

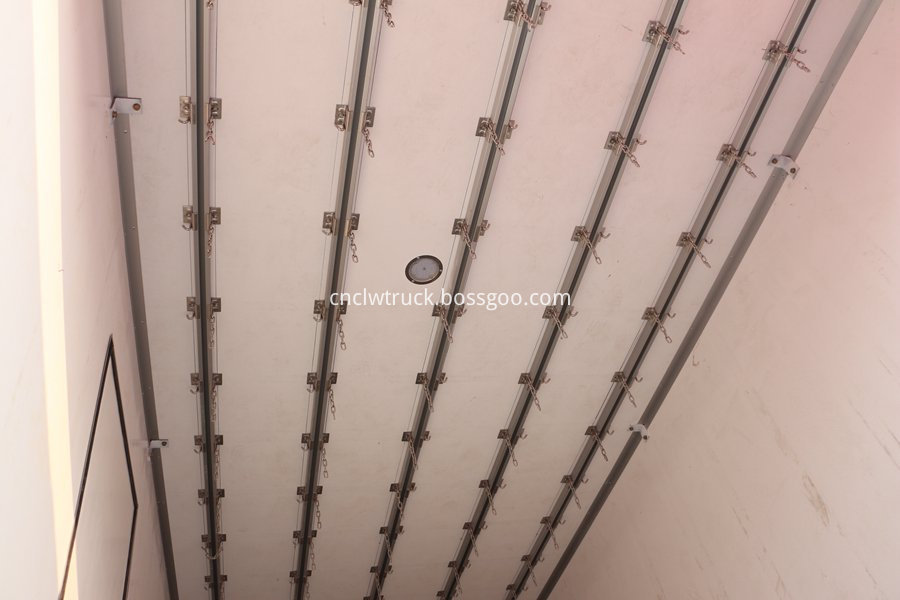

3. Accessories: 2.5mm aluminum alloy adge around the box body, stainless steel angle, stainless steel door lock, anti-collision rubber 4 pieces, stainless steel door frame, stainless steel hinge, energy-saving lighting inside the box.

4. The thickness of car body can be 100mm, 120mm, the innner and outer surface can be installed with glass steel, stainless steel, aluminum alloy.

5.Vehicle Size: 12000mmX2600mmX3980mm(LXWXH), Refrigerator Box Size: 9450mmX2350mmX2410mm(LXWXH).

OPTIONAL CONFIGURATIONS

 Need more details of our refrigerator van truck for meat and fish welcome to contact us at any time!
