| Payment Type: | L/C,T/T |
|---|---|
| Incoterm: | FOB,CIF,EXW |
| Min. Order: | 1 Set/Sets |
| Delivery Time: | 30 Days |
Basic Info
Model No.: CLW5168TSLD5
Type: Dry-type
Payload: 30T
Transmission Type: Manual
Engine Type: 4 Stroke
Fuel: Diesel
Emission Standard: Euro 3
Certification: CCC, ISO9000
Condition: New
Chassis Brand: DONGFENG
Additional Info
Packaging: Nude packing,Waxing before shipping
Productivity: 30000sets/year
Brand: CLW
Transportation: Ocean,Land
Place of Origin: CHINA
Supply Ability: 300sets/month
Certificate: SGS,ISO9001, CNAS,CCC
HS Code: 8705909990
Port: SHANGHAI PORT,CHINA,Any Other Port in China
Product Description
2019 Super Hot Dongfeng luxurious 12cbm road street sweeper truck
Road street sweeper truck is suitable for brushing, suction and transportation of dusts, leaves, mud, soil, sand, stone chips, gravels and other small particles on the ground of city roads and areas. This unit shall be suitable for dry type cleaning job as well as dust suppression with water spray in the road side and narrow lanes.
The street sweeper truck is composed by chassis, auxiliary engine, air blower, magnetic valve, debris bin, water bin, sweeping system, suction system, water sprinkling system, hydraulic system, electrical control system, etc.
Four brooms Sweeping system and suction system combine working, high efficient. Water sprinklers equipped on brooms, suction nozzle, effective dust suppression.
SPECIFICATIONS :
Chassis specifications: chassis model DFL1160BX1V, DONGFENG 6 speeds gearbox, with power steering, A/C, automatically air-cut brake, tire spec 9.00R20, wheelbase 4500mm, with ABS, Cummins engine 180hp.
Body specifications: auxiliary engine Cummins 140hp, with four sweepers, SANYO motor, famous brand multifold solenoid valve, SIEMENS control switch, water pump, maintenance-free centrifugal fan, tail LED arrow light, manual pump emergency system, hydrualic lifting &dump garbage, automatically collision-avoiding function, max sweep width 3.5m, max suction particle diameter 140mm, stainless steel dustbin, capacity 10.5cbm(9cbm dustbin & 3cbm water tank), antiseptic treatment inside of dustbin, max sweep capacity: 50000㎡/h-100000㎡/h.
Files with vehicle: basic tool & accessories , english vesion manual book, operation vedio..
Road Street Sweeper Truck Dongfeng ( 9CBM dustbin & 3 CBM water tank )
General
Vehicle Brand
CLW
Chassis Brand
DONGFENG
Overall Dimension
7930 * 2500 * 3120 mm
GVW / Kerb Weight
15800kg / 8900kg
Cab
Cab Capacity
3 persons allowed, with one sleeper
Air Conditioner
W/ air conditioner
Engine
Fuel Type
Diesel
Engine Brand
CUMMINS
Power
180 Ps (136KW)
Displacement
5900 ml
Emission Standard
Euro V
Chassis
Drive Type
4X2, left or right hand drive
Transmission
8speed gear box, no overhaul within 500,000km
Wheelbase/No. of axle
4500 mm / 2
Tyre Specification
9.00R20
Tyre Number
6 tyres and 1 spare tyre
Max Speed
99 km/h
Paint
Metallic paint
Superstructure
Water Tank
Stainless Steel
Dustbin Capacity
9CBM
Dustbin Material
Stainless Steel
Water Tank Capacity
3,000 Litres (About 900gallons)
Sweeping Capacity
50,000 m³/h-100,000m³/h
Sweeping Speed
3-15 km/h
Max Sweeping Width
3500mm
Brooms
2 sets at each side
Auxiliary Engine
CUMMINS engine
140 HP (106 KW), super powerful
All standard accessories: Warning lights, music alarm, basic tool kit, English manual--
Optional
** Backup alarm can be equipped.
** Camera can be equipped.
** Air blower can be of stainless steel.

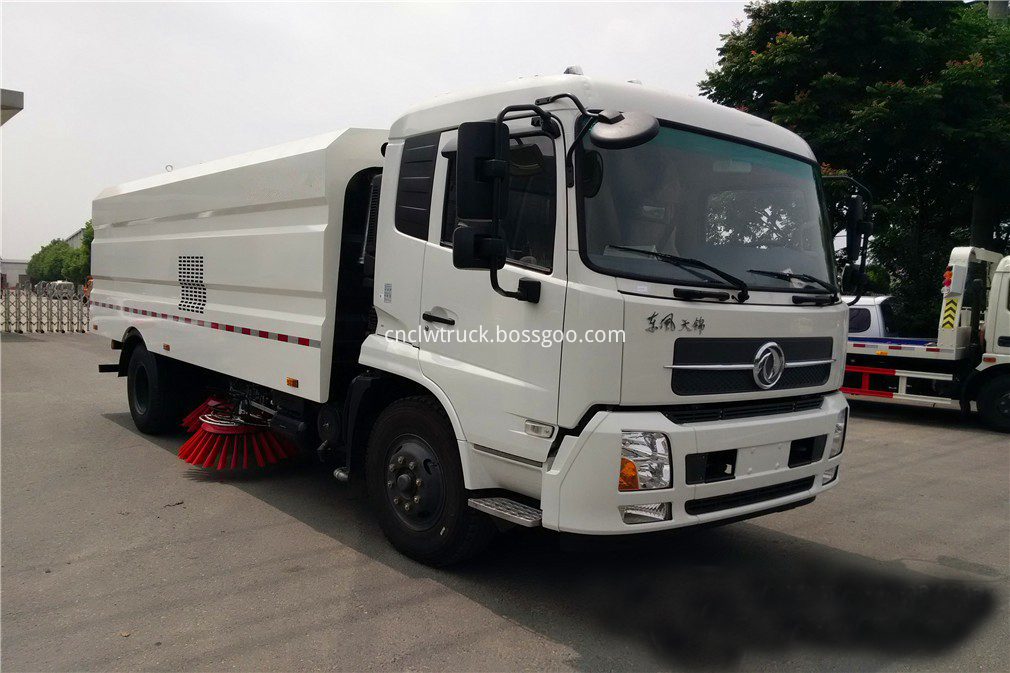

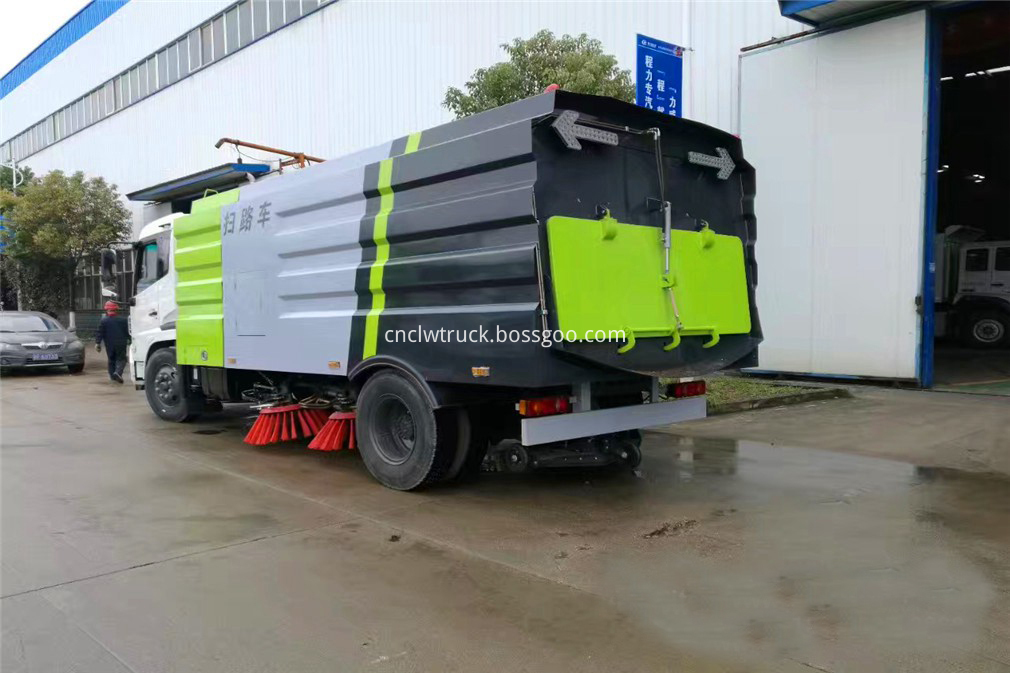

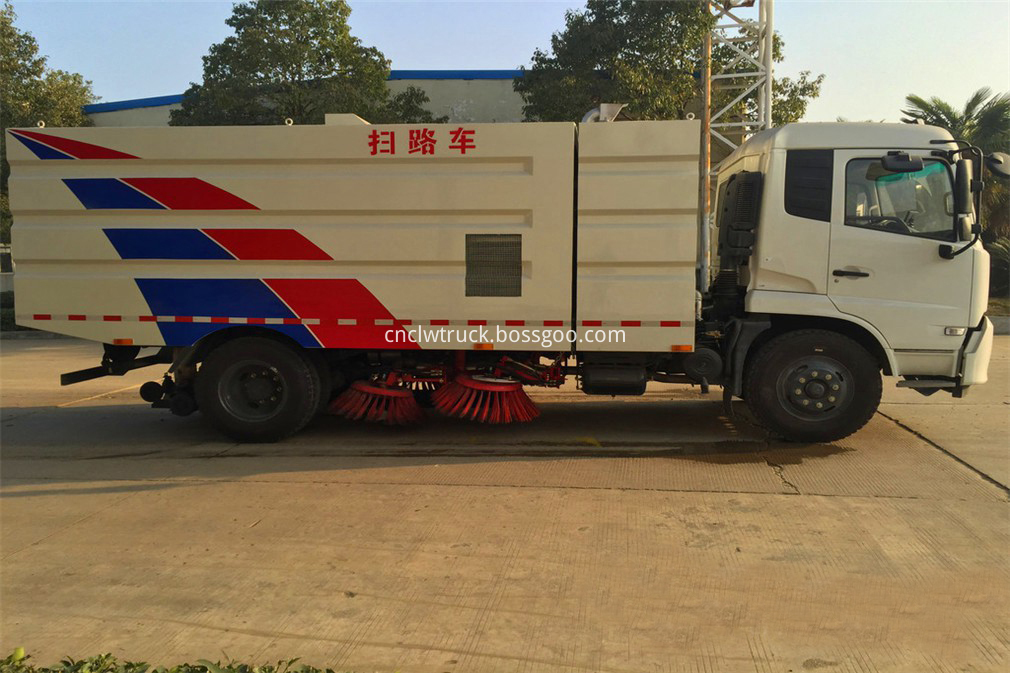

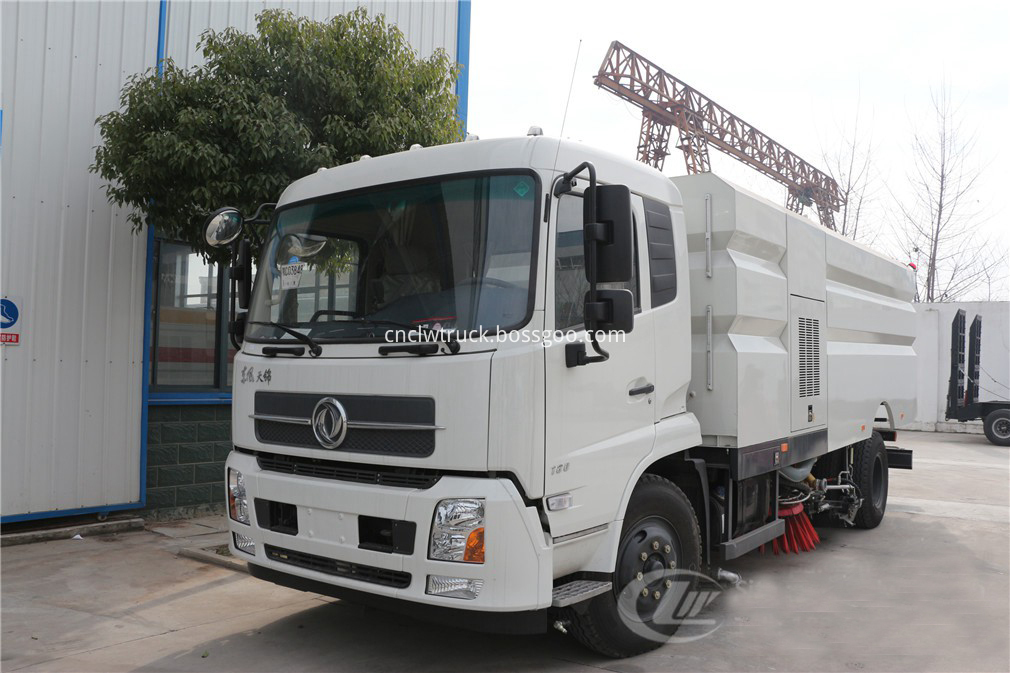

VEHICLE PICTURES :
DONGFENG 12cbm Road Street Sweeper Truck
DETAILS :
Advantages of Our Road Street Sweeper Truck
FACTORY SHOW :
Production Workshop of CLW Road Street Sweeper Truck

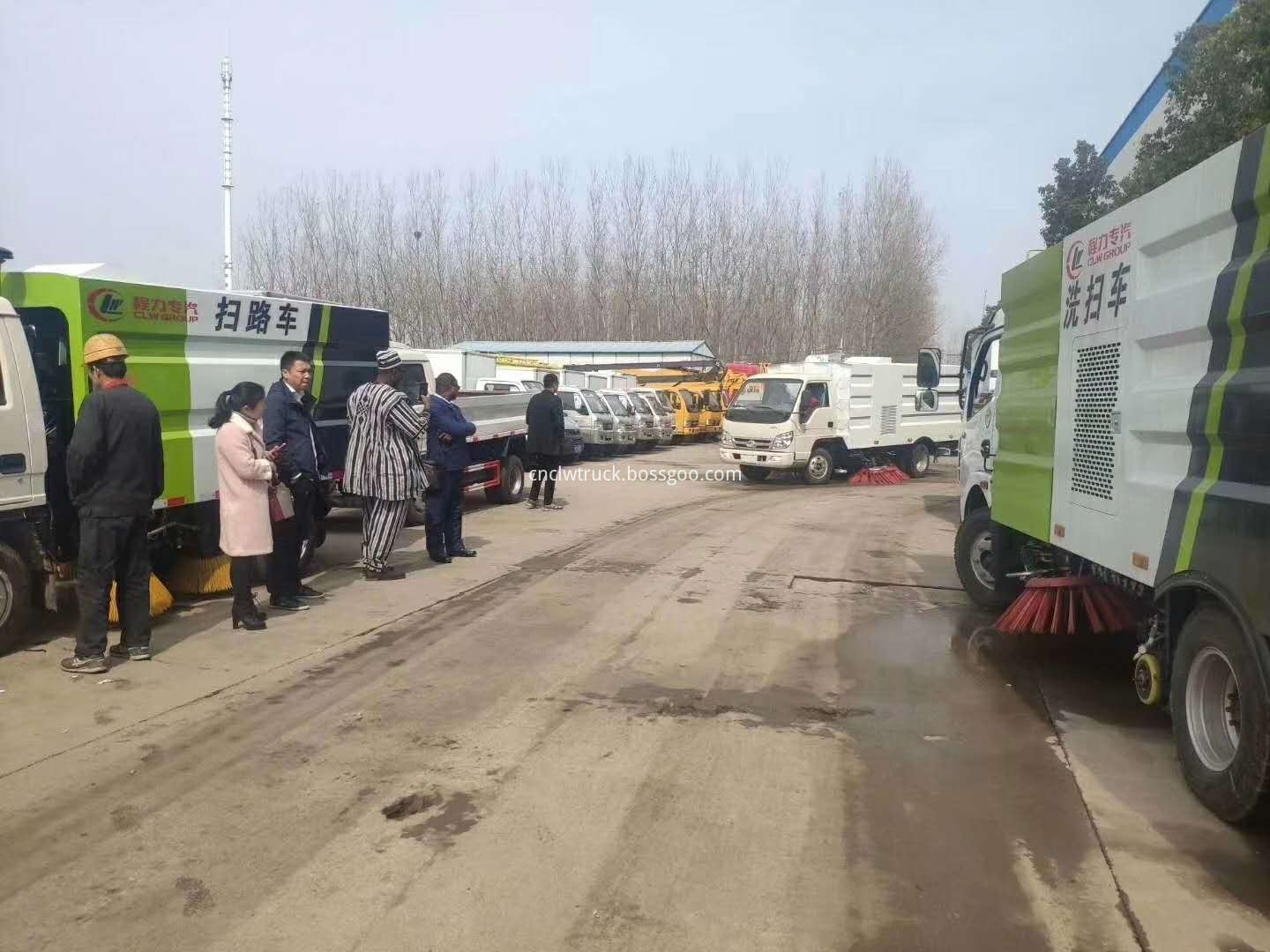

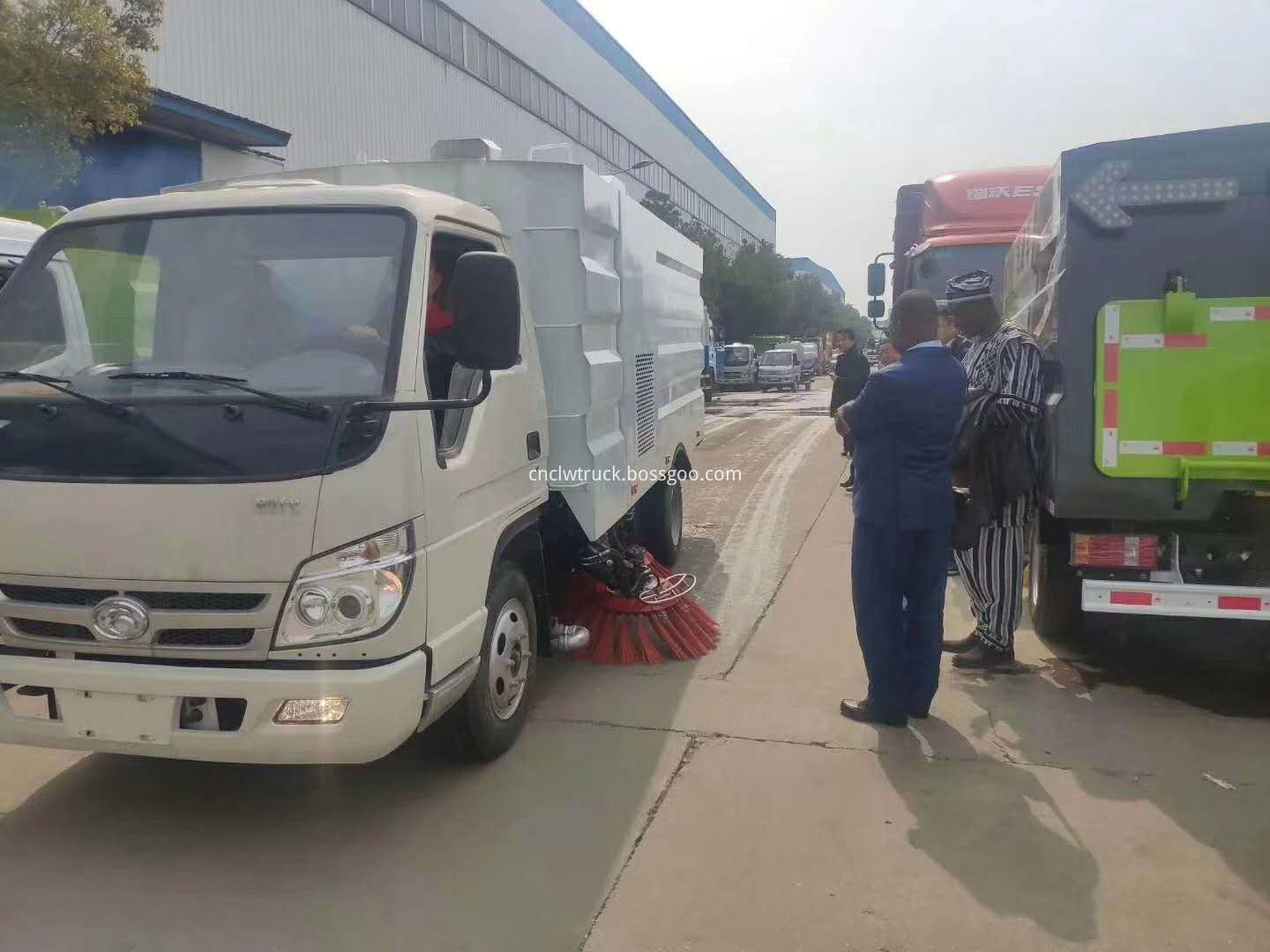

CUSTOMER VISIT :
Customer from Saudi Arabia to buy our Road Street Sweeper Truck
Similar Keywords: street sweeper, municipal vehicle, sweeping car, street cleaner sweeper and cleaning truck, street cleaning vehicle
What we can supply for you:
We are chinese top one brand new special purpose trucks manufacturer, we have over 15 years production experiences and more than 8000 employees, export volume per year 60,000,000 dollars, 3000set/year.
Welcome to visit us and looking forward to bulid a long win-win business cooperation.
