FOTON 6m³ Concrete Mixer Truck For Sale

Payment Type: L/C,T/T
Incoterm: FOB,CIF,EXW
Min. Order: 1 Set/Sets
Delivery Time: 15 Days

Basic Info

Model No.: CLW5601CMT

Certification: CCC, ISO9000

Transmission Type: Manual

Emission Standard: Euro 3

Displacement: 4-6L

Engine Type: 4 Stroke

Payload: 5-10T

Fuel: Diesel

Drive Mode: 4x2

Maximum Horsepower: <200hp

Condition: New

Chassis Brand: FOTON

Additional Info

Packaging: Nude packing,Waxing before shipping

Productivity: 30000sets/year

Brand: CLW

Transportation: Ocean,Land

Place of Origin: CHINA

Supply Ability: 3000sets/month

Certificate: SGS,ISO9001, CNAS,CCC

HS Code: 8705400000

Port: SHANGHAI PORT,CHINA,ANY MAIN SEA PORT IN CHINA

Product Description

Guaranteed 100% Brand New FOTON 6m³ Concrete Mixer Truck for Sale

Concrete mixer truck is a kind of construction vehicle which is made to transport and mix concrete up to the construction site.The concrete mixing transport truck maintains the material's liquid state through agitation, or turning of the drum, until delivery.

For the construction place which has  limited height and width  requirements for the vehicle, small concrete mixer trucks (2m³  to 6 m³)  that are perfect for the demands.

We can provide concrete mixer truck with capacity from 2m³ to 20m³ or 3yd cubic to 22yd cubic, chassis brand could be dongfeng, sinotruck, faw, shacman, isuzu, xcmg, iveco, etc..


VEHICLE PICTURES :

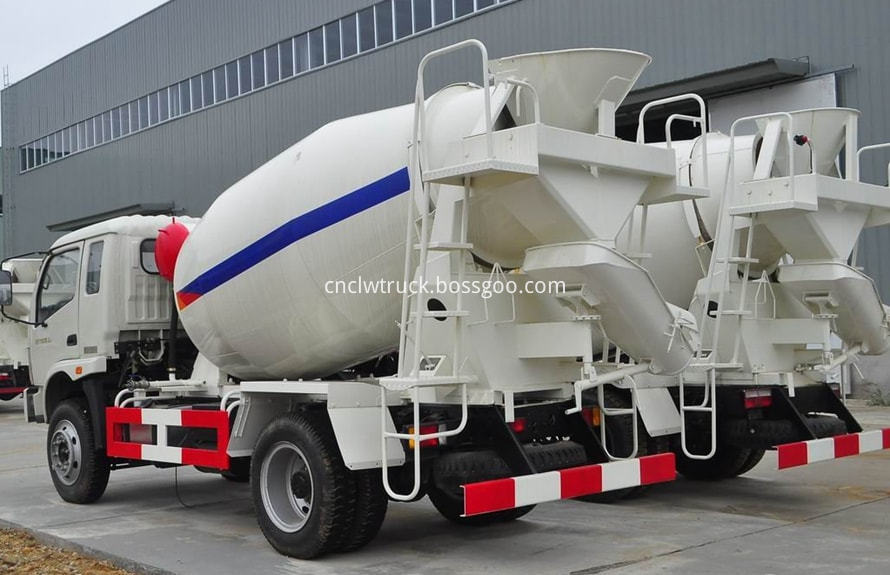

concrete mixer truck for sale

FOTON 6m³ Concrete Mixer Truck For Sale Picture 1

concrete mixer truck for sale 1

FOTON 6m³ Concrete Mixer Truck For Sale Picture 2

VEHICLE PARAMETERS:

Features of Concrete Mixer Truck

-----Nice shape, rational structure

-----High -intensity drum material

-----Imported Original Hydraulic System

-----Optimized mixing blades, low material residue

-----High quality parts, massive, durable, perfect performance

-----Prolonged service life

CONCRETE MIXER PARAMETERS

Concrete Mixer Tank Capacity

6CBM

Water Tank Capacity

300L

Reduction Gears

Germany Brand

Hydraulic Oil Pump

Germany Brand

Hydraulic Motor

ZF Reducer

Radiator

Chinese Brand

Feeding Rate

3m³/min

Discharging Rate

2m³/min

Tank Rotation Speed

During Transportation

1-3RPM

Mortar Density

Relative Error

≤0.8%

Coarse Bone Mass

Relative Error

≤5%

Discharge

Residue Date

<0.5%

Test Value of

No Spillage Slope

0.06

Concrete Slump

20mm/tank

VEHICLE PARAMETERS

Vehicle Name

Concrete Mixer Truck

Overall Size

7025*2320*3700mm

Chassis Model

BJ5163GJ

Drive Model

4X2, LHD/RHD

Axles Nos

2

Tire Spec.

9.00R20

Gearbox

8F,1R

Tire Nos.

6+1(spare)

Front/Rear Axle Load

5T/10T

GVW

15800kg

Engine Power

YUCHAI 140HP

Curb Weight

6800kg


CHENGLI SPECIAL AUTOMOBILE CO

Need more details of our Concrete Mixer Truck welcome to contact us at any time!
