Dongfeng 5Tons Articulated Top Lift Crane Trucks

Basic Info

Model No.: CLW3102TMC

Fuel: Diesel

Certification: ISO9000, CCC

Emission Standard: Euro 4

Condition: New

CRANE BRAND: XCMG, SANY, Palfinger,Unic,Tadano Etc...

Additional Info

Packaging: Nude packing,Waxing before shipping

Productivity: 30000sets/year

Brand: CLW

Transportation: Ocean,Land

Place of Origin: CHINA

Supply Ability: 3000sets/month

Certificate: SGS,ISO9001, CNAS,CCC

HS Code: 8704223000

Port: SHANGHAI PORT,CHINA,ANY MAIN PORT IN CHINA

Product Description

Guaranteed 100% Dongfeng 5Tons Articulated Top Lift Crane Trucks for Sale

A Top Lift Crane Trucks is a hydraulic crane mounted on a truck which can do loading & unloading work without need of any external crane and manpower. It is an integrated solution for loading, transportation and unloading of the goods.

There are telescopic boom cranes and knuckle boom cranes, covering a wide range of capacities as follows:

Telescopic Boom Crane: 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Ton

Knuckle Boom Crane: 1Ton, 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Ton.

Heavy Duty Crane:50Ton, 80Ton, 120Ton.

The cranes can be of famous brands as Palfinger (Canada), Unic (Japan), Tadano (Japan), XCMG (China top brand), Zoomlion, Sany, etc.

VEHICLE PICTURES :

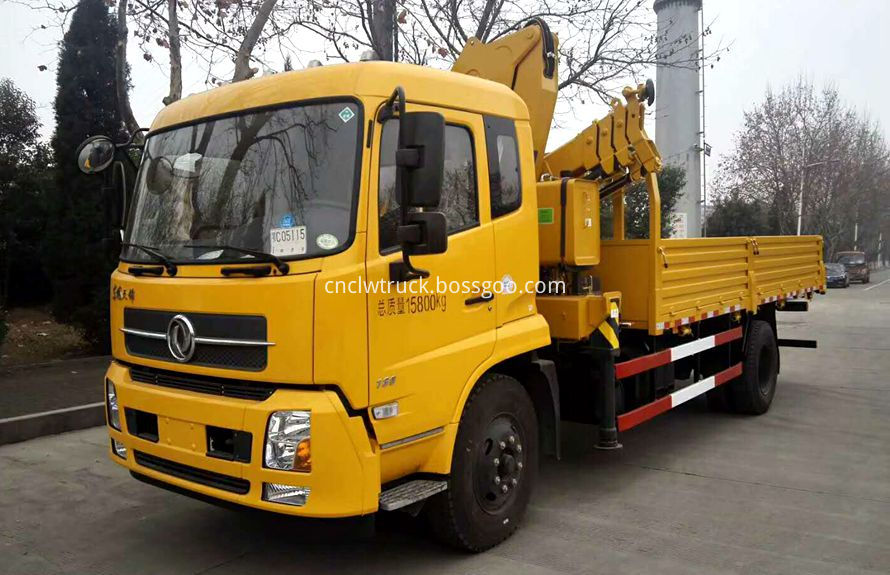

 Dongfeng 5Tons Articulated Top Lift Crane Trucks Picture 1

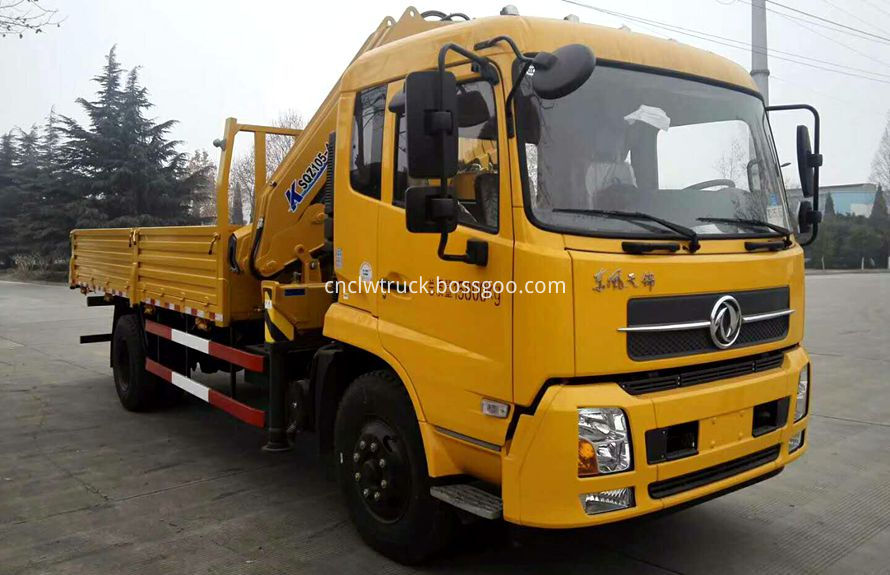

 Dongfeng 5Tons Articulated Top Lift Crane Trucks Picture 2

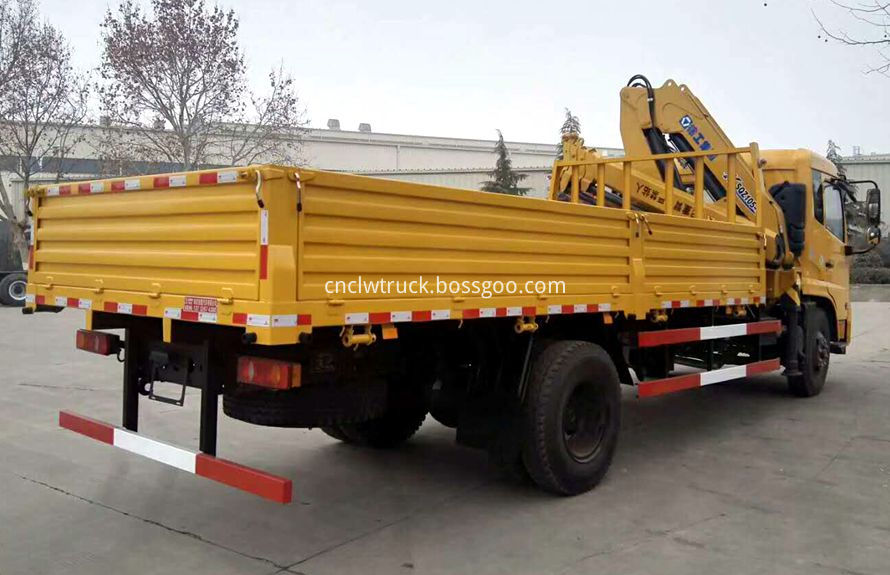

 Dongfeng 5Tons Articulated Top Lift Crane Trucks Picture 3

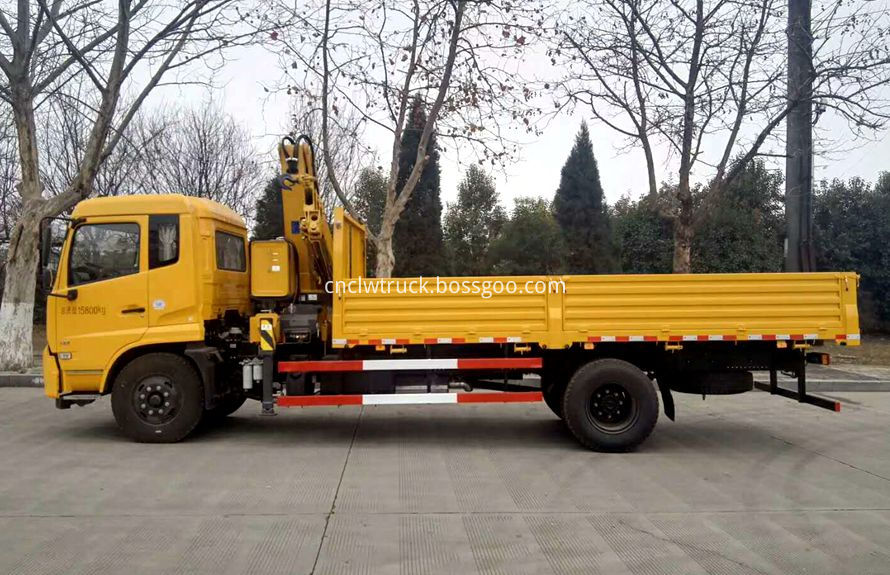

 Dongfeng 5Tons Articulated Top Lift Crane Trucks Picture 4

VEHICLE PARAMETERS :

Chassis Configurations: DONGFENG Tianjin 6wheels Chassis, Single-row Cab with one sleeper,Cummins Diesel 180HP Engine, 8 Speed Transmission, 3.6T Rront Axle, 9T Rear Axle, 250mm Crossbeam, 9.00R20 Tire, ABS, Air Brake, Power Steering , A/C, Electric Windows

Crane Configurations:

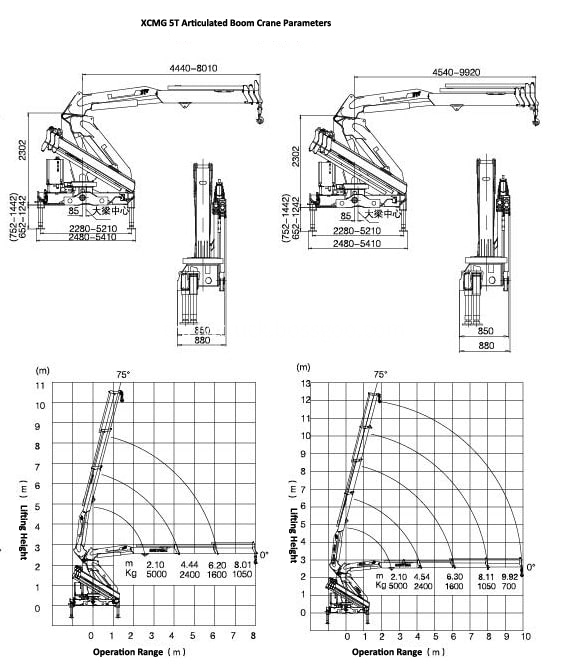

Articulated boom type, simplex pump or double pump optional,  lifting capacity 5000kg, length of arm2.1m(not extend)-8.4m(full extend), four outriggers ,360 degree rotation; Working radius 8.4m,  lifting height 10.8m.

Cargo Configurations:

Cargo Size:5750*2300*600/L*W*H/mm, cargo bottom thickness is 5mm/4mm, side thickness is 2mm.

Top Lift Crane Trucks Advantages :

1.  Diesel fuel type, power engine,perfect driving performance

2. Wide and high-speed rotary, easy operation, strong load capacity.

3. Unique design, prolonged service life.

4. Wide application range, suitable for landscaping,electric power, petro-chemical industry, advertisement installation, construction site, narrow road, underground garage, service station, 4S shop, field rescue, factory workshop transportation, etc.

Need more details of our Top Lift Crane Trucks welcome to contact us at any time!
