Basic Info
Model No.: CLW5508RWT
Fuel: Diesel
Certification: ISO9000, CCC
Emission Standard: Euro 4
Condition: New
Chassis Brand: SHACMAN
Additional Info
Packaging: Nude packing,Waxing before shipping
Productivity: 30000sets/year
Brand: CLW
Transportation: Ocean,Land
Place of Origin: CHINA
Supply Ability: 3000sets/month
Certificate: SGS,ISO9001, CNAS,CCC
HS Code: 8705909990
Port: SHANGHAI PORT,CHINA,ANY MAIN PORT IN CHINA
Product Description
Guaranteed 100% Brand New SHACMAN 30tons Construction Site Towing Vehicles for Sale
Construction Site Towing Vehicle is used to transport motor vehicles or tow the vehicles that are broken down, based on the type or size of vehicle to be towed, the road towing vehicles are usually designed into two types, ine is slidebed tow truck with wheel-lift function, another one is wheel-lift units mounted a combination boom with sling that can hauling all kinds of heavy duty equipments.
VEHICLE DIAGRAM :
VEHICLE PICTURES :

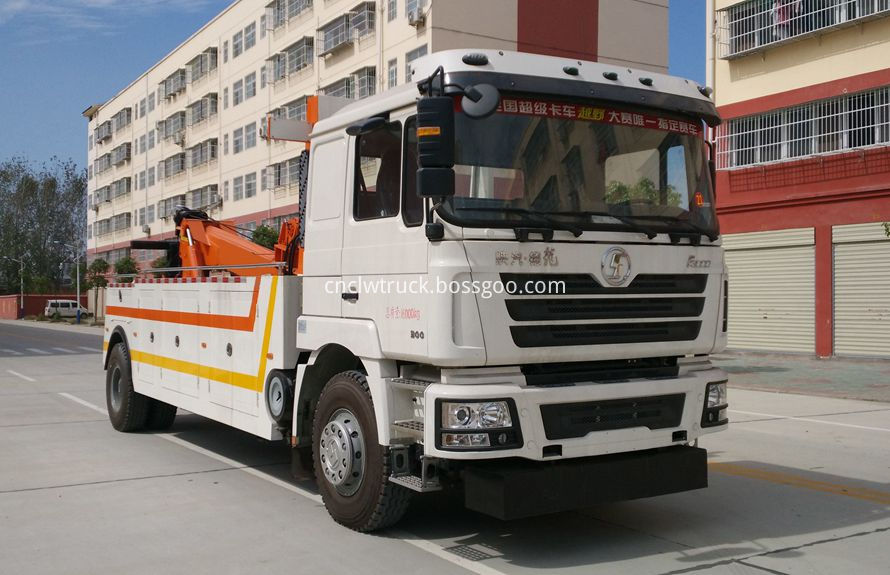

SHACMAN 30tons Construction Site Towing Vehicles Picture 1

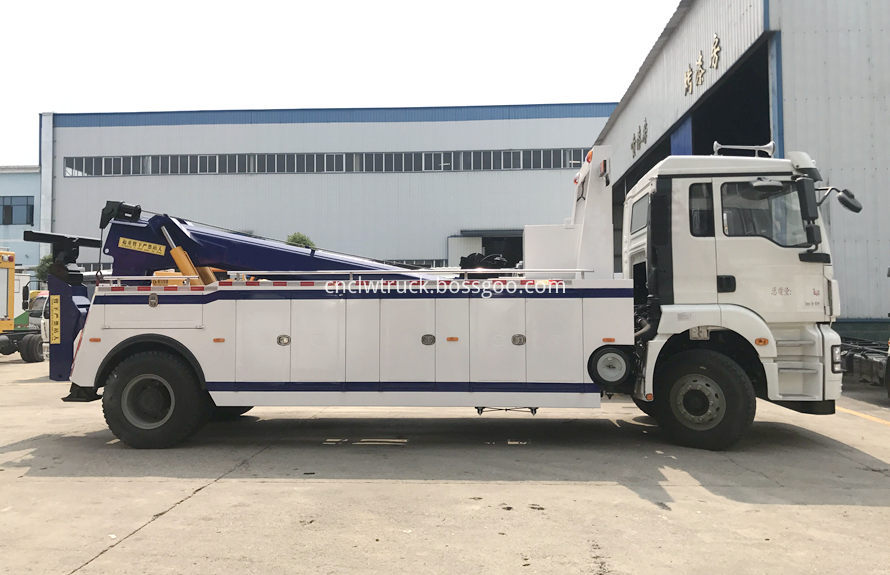

SHACMAN 30tons Construction Site Towing Vehicles Picture 2

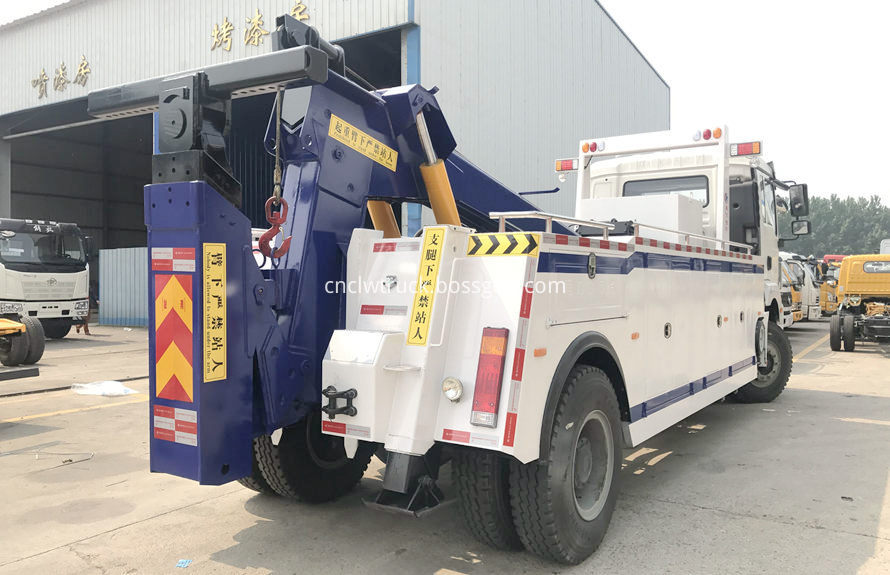

SHACMAN 30tons Construction Site Towing Vehicles Picture 3

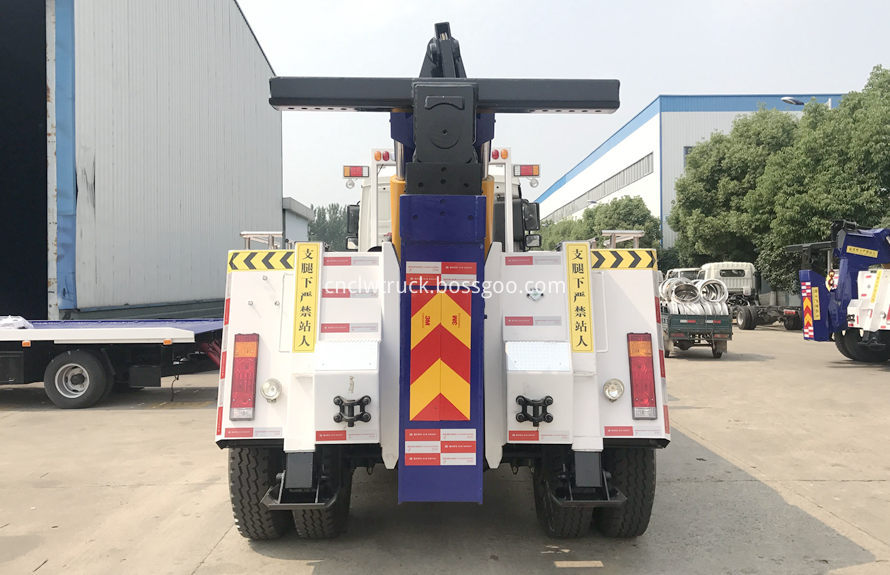

SHACMAN 30tons Construction Site Towing Vehicles Picture 4
VEHICLE PARAMETERS :
VEHICLE PARAMETERS
Vehicle
Name
Heavy Duty
Road Wrecker
Overall
Size
(L*W*H/mm)
9345*2500*3200
GVW
19000kg
Curb
Weight
15025kg
Towing
Capacity of Winch
16T
Top Body Weight
12T
CHASSIS PARAMETERS
Chassis
Brand
SHACMAN
Wheel
Base
6000mm
Chassis
Model
Drive
Model
4X2,
LHD/RHD
Axles
Nos
2
Tire
Spec.
12.00R20
Gearbox
9F,1R
Tire
Nos.
6+1(spare)
Engine
Model
CA4DK1-22E51
Engine
Brand
WEICHAI
Displacement
9726ml
Engine
Power
310HP
Fuel
Type
Diesel
Brake
Type
Air
Brake
BODY
CONFIGURATION
Stand
Configuration
8T*2 towing winchs, 35m steel wire rope, 4 units steel forks, 1 unit towing set, 1 unit steel flug fork, 1 unit tire protection device, vehicle tools one set, auxiliary lamp assembly one set, auxiliary air pipe assembly one set, yellow long engineering warning light one set
SX1166NN601
Chassis Configurations: SHACMAN Chassis, New Type Single Row with one sleeper Cabin , Diesel WEICHAI 310HP Engine, 9 Speed Transmission, Wheelbase 6000mm, 13T Rear Axle, 12.00R20 Tire, ABS, Air Brake, Power Steering , A/C, Electric Windows, Cruise Control System
Top Body Configurations:
SHACMAN single bridge heavy duty towing truck, 12 tons conjoined jacket, two type six side lifting arm, three supporting arm, split carriage, imported hydraulic system, double side linkage operating device, front bumper equipped with counterweight, relatively strong in performance and endurance.8tons double towing winchs, 35 meters steel wire rope, diameter is 16mm, equipped with 4 sets of steel fork, a set of trailer set, a set of steel plate lug fork, a set of tire holding device, a set of accompanying tools, a set of auxiliary lamp assembly, a set of auxiliary pipe assembly, with a yellow long LED engineering alarm lamp.
Our company adopts foreign advanced and skilled product technology, production process, all imported seals, reinforced beam fixed, enhance the bearing capacity.
Files with vehicles:
Chassis Certificate, Vehicle Certificate, Proforma Invoice, English Vesion User Manual( any language version avaiable), Quality Warranty Certificate, Country of Original, Or Any other certificates can provide if contract need.
Construction Site Towing Vehicles Advantages :
1. Diesel fuel type, super powerful engine, perfect driving performance, no overhaul within 100,000km.
2. Wide and high-speed rotary, easy operation, strong load capacity.
3. Unique design, prolonged service life.
4. High quality hydraulic system.
5. Manufacturer directly sale, cheap price with promptly after-sales response.
Need more details of our Construction Site Towing Vehicles welcome to contact us at any time!
