| Payment Type: | L/C,T/T |
|---|---|
| Incoterm: | FOB,CIF,EXW |
| Min. Order: | 1 Set/Sets |
| Delivery Time: | 15 Days |
Basic Info
Model No.: CLW5609CMT
Certification: CCC, ISO9000
Transmission Type: Manual
Emission Standard: Euro 6
Displacement: 8-10L
Engine Type: 4 Stroke
Payload: >30T
Fuel: Diesel
Drive Mode: 8x4
Maximum Horsepower: 300-400hp
Condition: New
Chassis Brand: SHACMAN
Additional Info
Packaging: Nude packing,Waxing before shipping
Productivity: 30000sets/year
Brand: CLW
Transportation: Ocean,Land
Place of Origin: CHINA
Supply Ability: 3000sets/month
Certificate: SGS,ISO9001, CNAS,CCC
HS Code: 8705400000
Port: SHANGHAI PORT,CHINA,ANY MAIN SEA PORT IN CHINA
Product Description
Guaranteed 100% Brand New SHACMAN 18cbm Cement Transmit Vehicle for Sale
Cement Transmit Truck is a kind of construction vehicle which is made to transport and mix concrete up to the construction site.The concrete mixing transport truck maintains the material's liquid state through agitation, or turning of the drum, until delivery.
For the construction place which has limited height and width requirements for the vehicle, small concrete mixer trucks (2m³ to 6 m³) that are perfect for the demands.
We can provide concrete mixer truck with capacity from 2m³ to 20m³ or 3yd cubic to 22yd cubic, chassis brand could be dongfeng, sinotruck, faw, shacman, isuzu, xcmg, iveco, etc..
VEHICLE PICTURES :

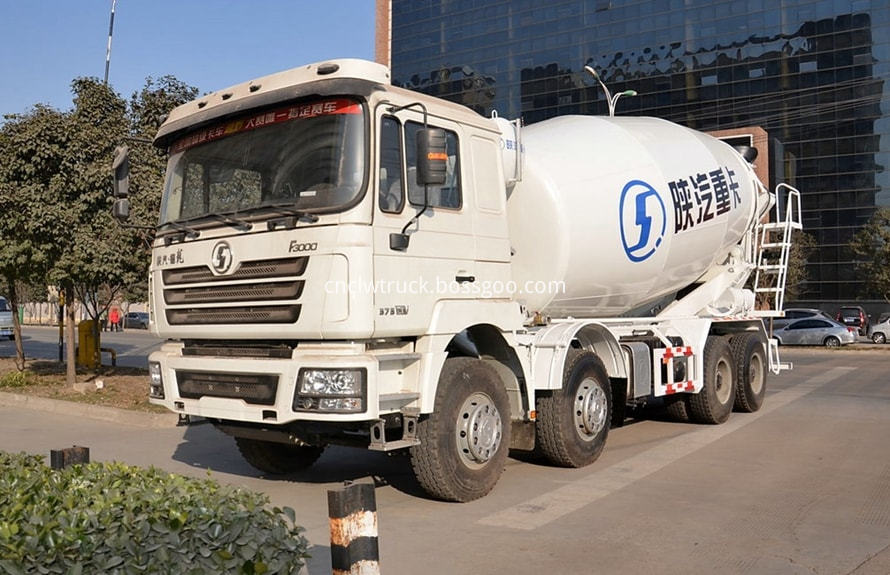

SHACMAN 18cbm Cement Transmit Vehicle Picture 1

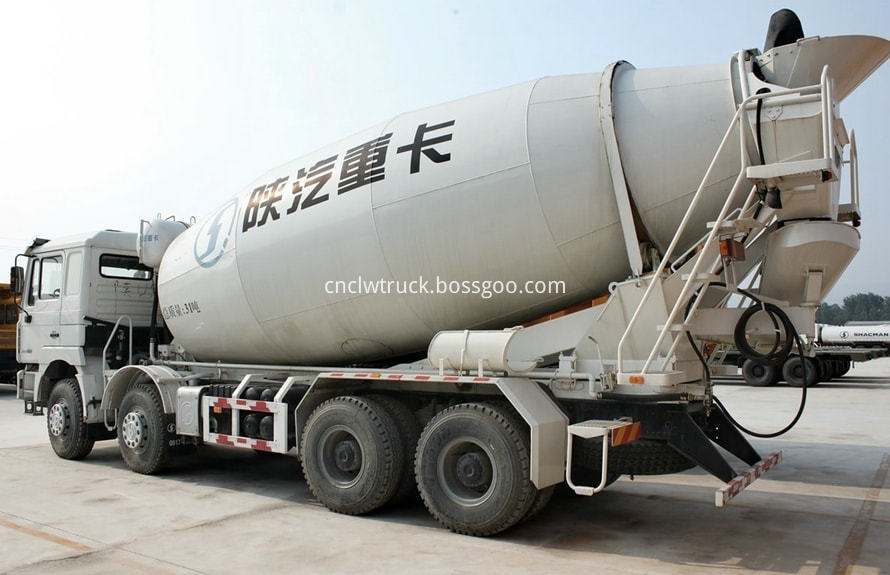

SHACMAN 18cbm Cement Transmit Vehicle Picture 2

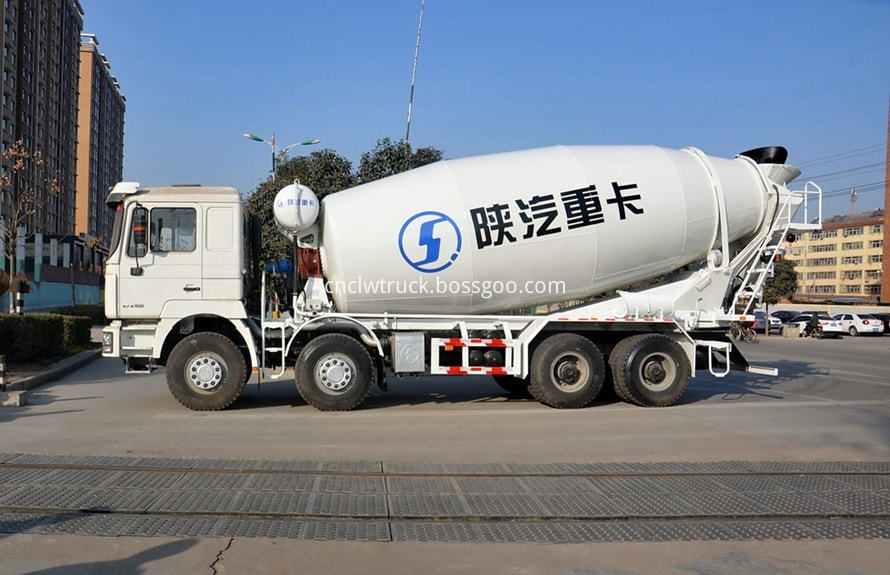

SHACMAN 18cbm Cement Transmit Vehicle Picture 3
SHACMAN 18cbm Cement Transmit Vehicle Picture 4
SHACMAN 18cbm Cement Transmit Vehicle Picture 5
SHACMAN 18cbm Cement Transmit Vehicle Picture 6
SHACMAN 18cbm Cement Transmit Vehicle Picture 7
VEHICLE PARAMETERS:
Features of Cement Transmit Vehicle
-----Nice shape, rational structure
-----High -intensity drum material
-----Imported Original Hydraulic System
-----Optimized mixing blades, low material residue
-----High quality parts, massive, durable, perfect performance
-----Prolonged service life
CONCRETE
MIXER PARAMETERS
Concrete
Mixer Tank Capacity
18CBM
Water
Tank Capacity
500L
Reduction
Gears
Germany
Brand
Hydraulic
Oil Pump
Germany
Brand
Hydraulic
Motor
ZF
Reducer
Radiator
Chinese
Brand
Feeding
Rate
8m³/min
Discharging
Rate
2m³/min
Tank
Rotation Speed
During
Transportation
1-3RPM
Mortar
Density
Relative
Error
≤0.8%
Coarse
Bone Mass
Relative
Error
≤5%
Discharge
Residue
Date
＜0.5%
Test
Value of
No
Spillage Slope
0.06
Concrete
Slump
20mm/tank
VEHICLE
PARAMETERS
Vehicle
Name
Concrete
Mixer Truck
Overall
Size
11800*2495*3980mm
Chassis
Model
SX5310GJB
Drive
Model
8X4,
LHD/RHD
Axles
Nos
4
Tire
Spec.
12.00R20
Gearbox
12F,1R
Tire
Nos.
12+1(spare)
Front/Rear
Axle Load
7.5T/16T
GVW
31000kg
Engine
Power
WEICHAI 375HP
Curb
Weight
17500kg
The concrete mixer truck also could be named concrete transport truck, cement mixer truck, transit mixer, construction vehicle, volumetric mixer truck, agitator truck, cement transmit vehicle, FOTON concrete mixer truck, 18yd conrete mixer truck, conrete mixer truck spec, concrete mixer truck photos, concrete mixer truck on sale, concrete mixer trucksize, concrete mixer truck manufacturers etc...
Need more details of our Cement Transmit Vehicle welcome to contact us at any time!
