| Payment Type: | L/C,T/T |
|---|---|
| Incoterm: | FOB,CIF,EXW |
| Min. Order: | 1 Set/Sets |
| Delivery Time: | 15 Days |
Basic Info
Model No.: CLW5603CMT
Certification: CCC, ISO9000
Transmission Type: Manual
Emission Standard: Euro 3
Engine Type: 4 Stroke
Fuel: Diesel
Condition: New
Displacement: 6-8L
Payload: 15-20T
Drive Mode: 6x4
Maximum Horsepower: 300-400hp
Chassis Brand: SHACMAN
Additional Info
Packaging: Nude packing,Waxing before shipping
Productivity: 30000sets/year
Brand: CLW
Transportation: Ocean,Land
Place of Origin: CHINA
Supply Ability: 3000sets/month
Certificate: SGS,ISO9001, CNAS,CCC
HS Code: 8705400000
Port: SHANGHAI PORT,CHINA,ANY MAIN SEA PORT IN CHINA
Product Description
Guaranteed 100% Brand New SHACMAN 15yd Concrete Mixer Truck for Sale
Concrete mixer truck is a kind of construction vehicle which is made to transport and mix concrete up to the construction site.The concrete mixing transport truck maintains the material's liquid state through agitation, or turning of the drum, until delivery.
For the construction place which has limited height and width requirements for the vehicle, small concrete mixer trucks (2m³ to 6 m³) that are perfect for the demands.
We can provide concrete mixer truck with capacity from 2m³ to 20m³ or 3yd cubic to 22yd cubic, chassis brand could be dongfeng, sinotruck, faw, shacman, isuzu, xcmg, iveco, etc..
VEHICLE PICTURES :

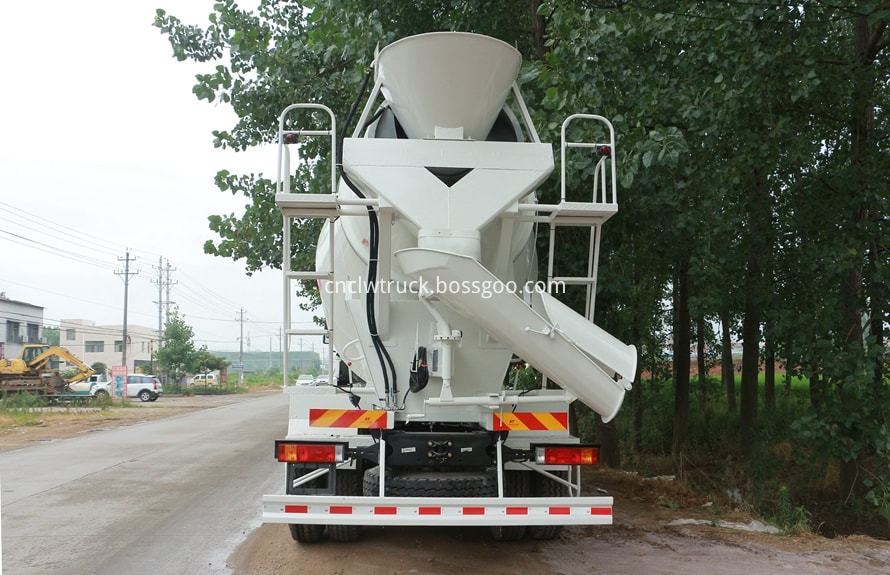

SHACMAN 15yd Concrete Mixer Truck Picture 1

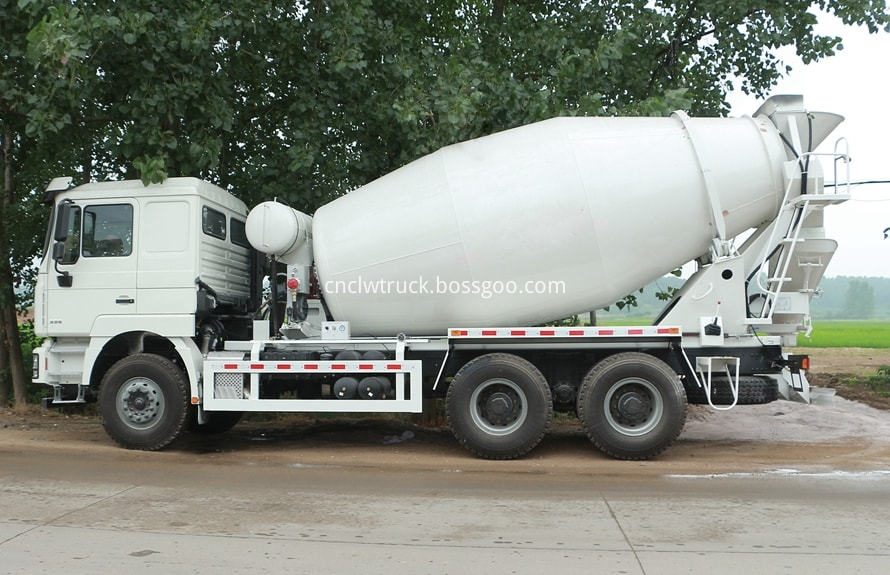

SHACMAN 15yd Concrete Mixer Truck Picture 2

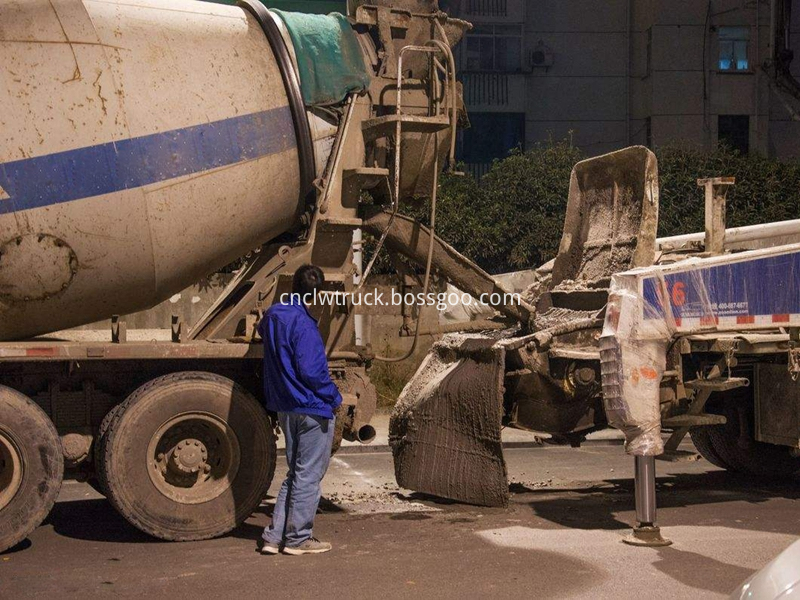

SHACMAN 15yd Concrete Mixer Truck Picture 3

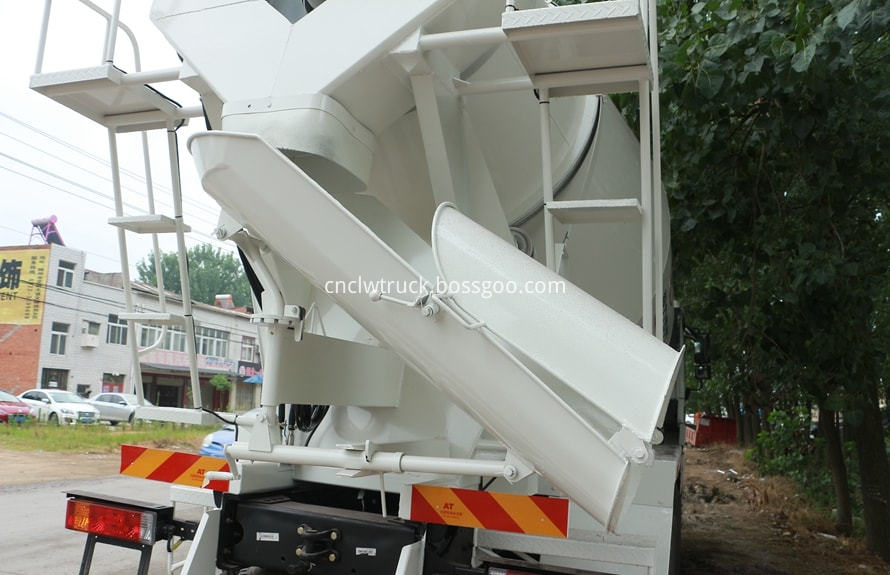

SHACMAN 15yd Concrete Mixer Truck Picture 4

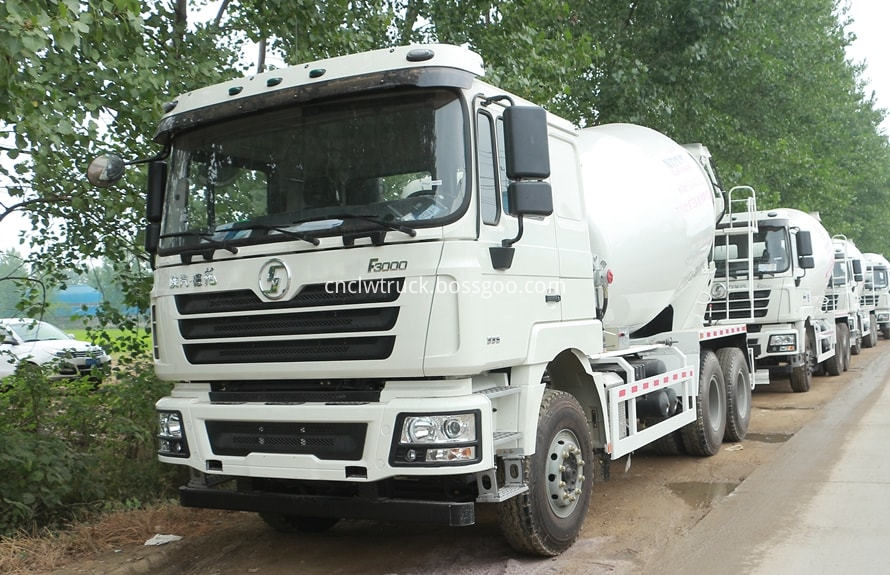

SHACMAN 15yd Concrete Mixer Truck Picture 5

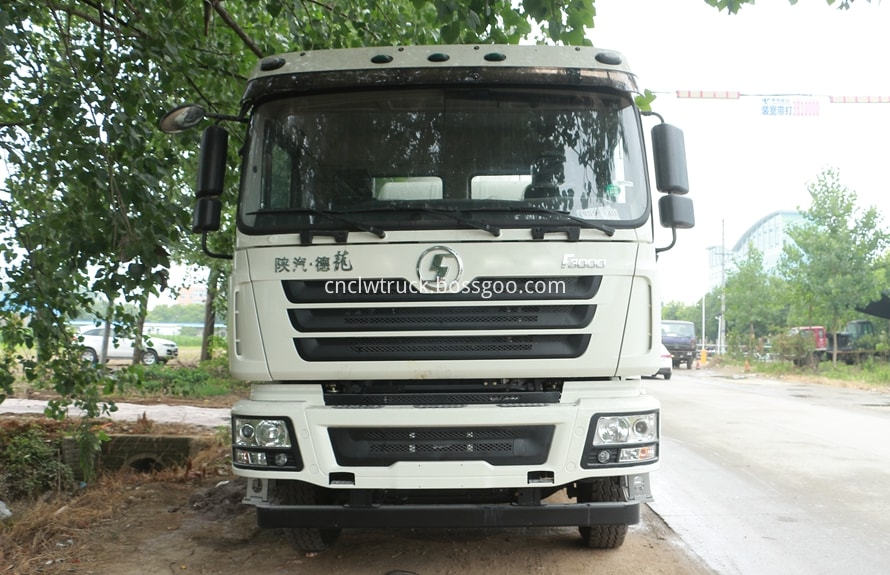

SHACMAN 15yd Concrete Mixer Truck Picture 6

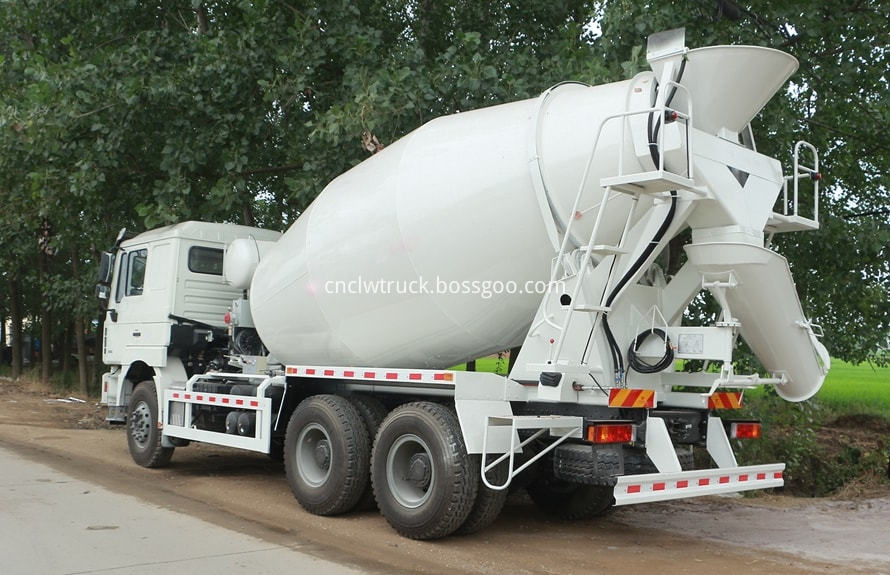

SHACMAN 15yd Concrete Mixer Truck Picture 7
VEHICLE PARAMETERS:
Features of Concrete Mixer Truck
-----Nice shape, rational structure
-----High -intensity drum material
-----Imported Original Hydraulic System
-----Optimized mixing blades, low material residue
-----High quality parts, massive, durable, perfect performance
-----Prolonged service life
CONCRETE
MIXER PARAMETERS
Concrete
Mixer Tank Capacity
12-14CBM
Water
Tank Capacity
300L
Reduction
Gears
Germany
Brand
Hydraulic
Oil Pump
Germany
Brand
Hydraulic
Motor
ZF
Reducer
Radiator
Chinese
Brand
Feeding
Rate
8m³/min
Discharging
Rate
2m³/min
Tank
Rotation Speed
During
Transportation
1-3RPM
Mortar
Density
Relative
Error
≤0.8%
Coarse
Bone Mass
Relative
Error
≤5%
Discharge
Residue
Date
＜0.5%
Test
Value of
No
Spillage Slope
0.06
Concrete
Slump
20mm/tank
VEHICLE
PARAMETERS
Vehicle
Name
Concrete
Mixer Truck
Overall
Size
10450*2495*3950mm
Chassis
Model
SX5250GJB
Drive
Model
6X4,
LHD/RHD
Axles
Nos
3
Tire
Spec.
10.00R20
Gearbox
9F,1R
Tire
Nos.
10+1(spare)
Front/Rear
Axle Load
7.5T/16T
GVW
25000kg
Engine
Power
WEICHAI 336HP
Curb
Weight
16000kg
The concrete mixer truck also could be named concrete transport truck, cement mixer truck, transit mixer, construction vehicle, volumetric mixer truck, agitator truck, cement transmit vehicle, foton concrete mixer truck, 6yd conrete mixer truck, conrete mixer truck spec, concrete mixer truck photos, concrete mixer truck manufacturers etc...
Need more details of our Concrete Mixer Truck welcome to contact us at any time!
