| Incoterm: | FOB,CIF,EXW |
|---|---|
| Min. Order: | 1 Set/Sets |
| Delivery Time: | 20 Days |
Basic Info
Model No.: CLW5349TMC
Fuel: Diesel
Certification: ISO9000, CCC
Emission Standard: Euro 4
Condition: New
CRANE BRAND: XCMG, SANY, Palfinger,Unic,Tadano Etc...
Additional Info
Packaging: Nude packing,Waxing before shipping
Productivity: 30000sets/year
Brand: CLW
Transportation: Ocean,Land
Place of Origin: CHINA
Supply Ability: 3000sets/month
Certificate: SGS,ISO9001, CNAS,CCC
HS Code: 8704223000
Port: SHANGHAI PORT,CHINA,ANY MAIN PORT IN CHINA
Product Description
Guaranteed 100% Brand New Sale Heavy Duty 120T Crane Truck for Sale
A 120T Crane Truck is a hydraulic crane mounted on a truck which can do loading & unloading work without need of any external crane and manpower. It is an integrated solution for loading, transportation and unloading of the goods.
There are telescopic boom cranes and knuckle boom cranes, covering a wide range of capacities as follows:
Telescopic Boom Crane: 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Ton
Knuckle Boom Crane: 1Ton, 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Ton.
Heavy Duty Crane:50Ton, 80Ton, 120Ton.
The cranes can be of famous brands as Palfinger (Canada), Unic (Japan), Tadano (Japan), XCMG (China top brand), Zoomlion, Sany, etc.
VEHICLE PICTURES :

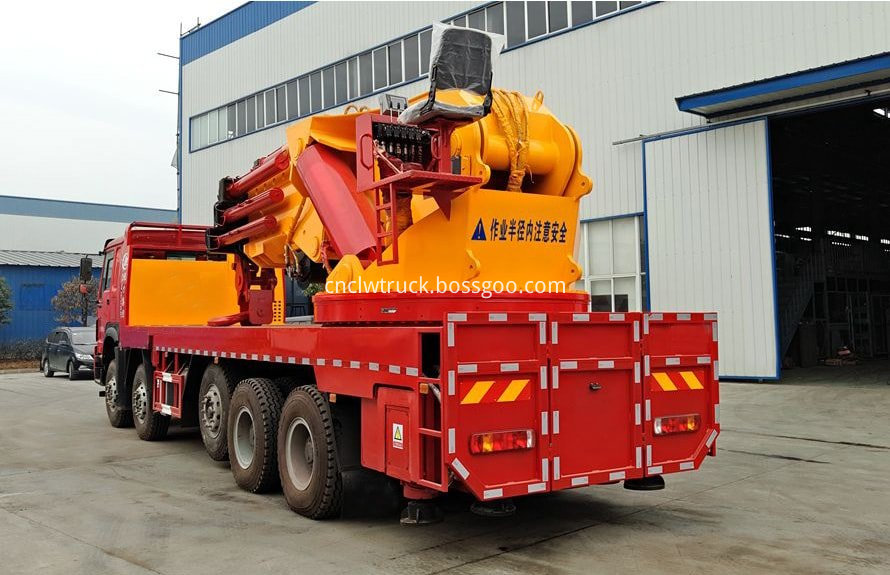

New Sale SINOTRUCK HOWO Heavy Duty 120T Crane Truck Picture 1

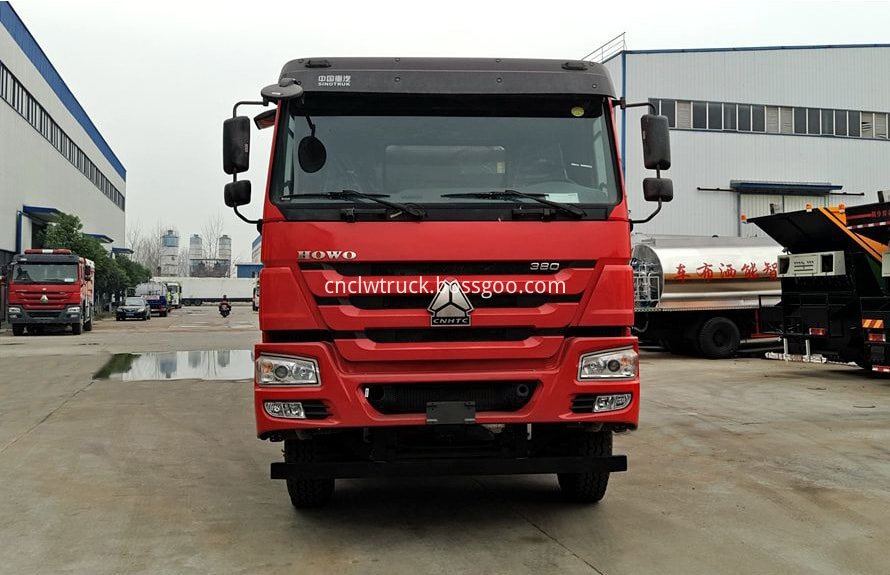

New Sale SINOTRUCK HOWO Heavy Duty 120T Crane Truck Picture 2

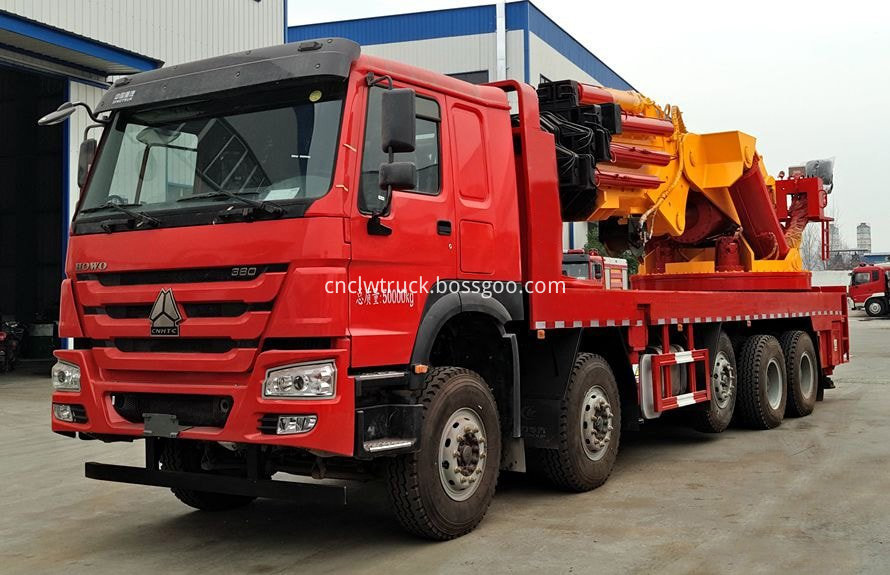

New Sale SINOTRUCK HOWO Heavy Duty 120T Crane Truck Picture 3

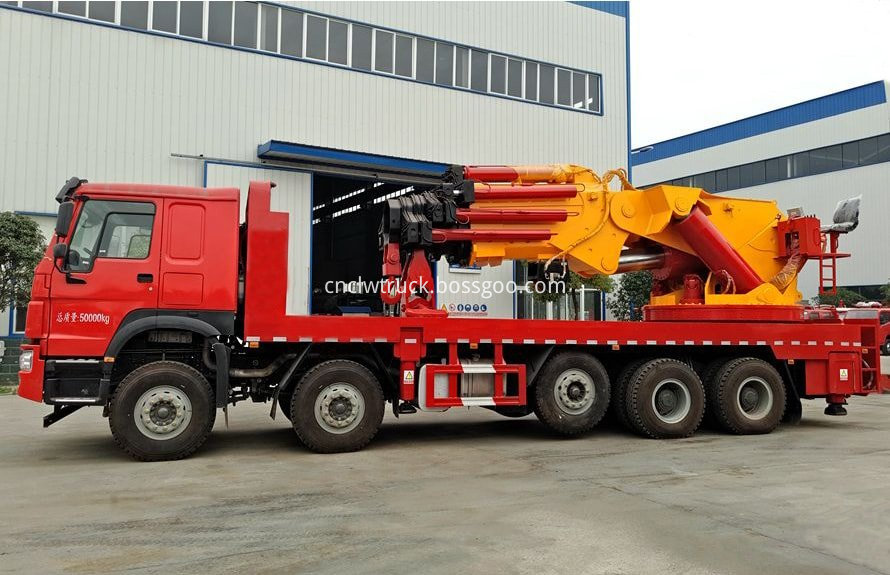

New Sale SINOTRUCK HOWO Heavy Duty 120T Crane Truck Picture 4

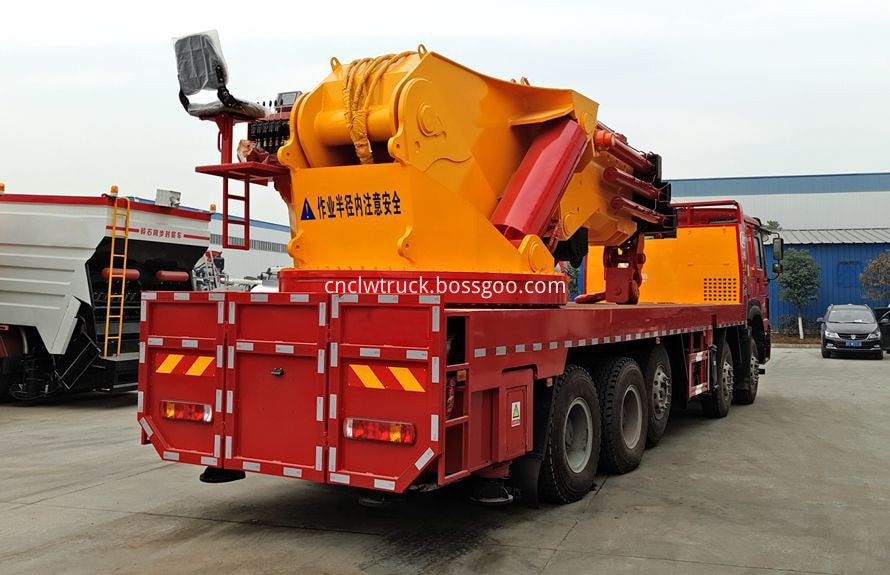

New Sale SINOTRUCK HOWO Heavy Duty 120T Crane Truck Picture 5
VEHICLE PARAMETERS :
|
VEHICLE PARAMETERS |
|||
|
Chassis Brand |
SINOTRUCK |
Condition |
Brand New |
|
Crane Capacity |
120T |
Crane Brand |
XCMG/SANY Remote Control |
|
Arm Type |
Folding/Telescopic |
Cab |
HOWO |
|
Engine Power/displacement |
380HP/11596ml |
Gearbox |
10 Speed |
|
Overall Size |
12X2.50X3.98/m |
GVW |
50000kg |
|
Cargo Size |
/ |
Curb Weight |
49870kg |
|
Vehicle Frame |
Special Crane Chassis |
Tire Spec. |
12.00R20 |
|
Rear Axle Load |
16T |
Brake System |
Air Brake |
|
Wheelbase |
1950+3075+1375+1350mm |
Allow Passengers |
2 |
|
Max Speed |
80km/h |
Drive Model |
8*4, LHD/RHD |
|
CRANE PARAMETERS |
||
|
|
CLW 100T Telescopic Arms |
CLW 120T Telescopic Arms |
|
Max Lifting Capacity(kg) |
100000 |
1200000 |
|
Min Lifting Capacity(kg) |
22000 |
26000 |
|
Working Radius(m) |
15.5 |
15.5 |
|
Lifting Height(m) |
19 |
19 |
|
Crane Weight(kg) |
/ |
/ |
|
Outriggers Span(mm) |
/ |
/ |
|
Rotation Angle |
360 Degree |
360 Degree |

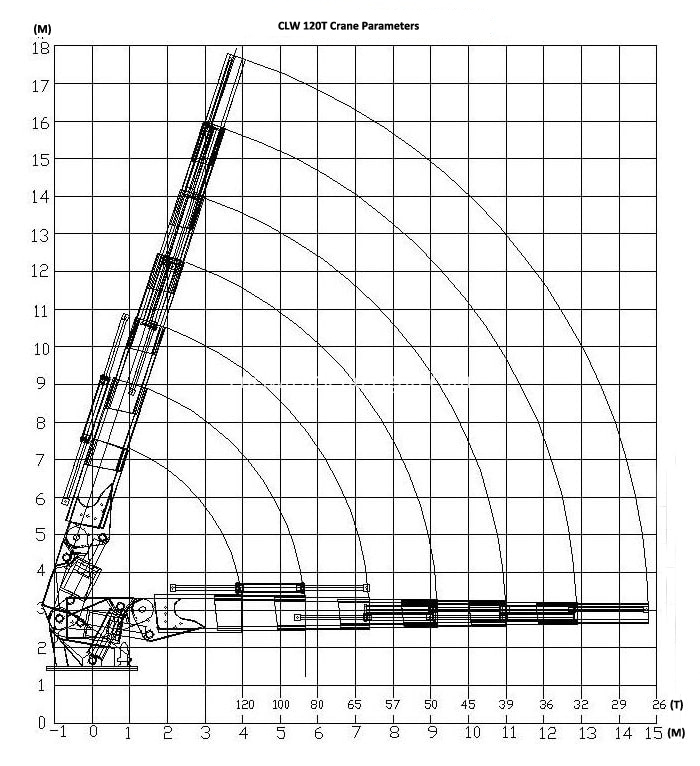

CRANE DIAGRAM :
Chassis Configurations: SINOTRUCK 120T Chassis, Single-row Cab with one sleeper , SINO Diesel 380HP Engine, 10 Speed Transmission, 9T Rront Axle, 16T double Rear Axle, 12.00R20 Tire, ABS, Air Brake, Power Steering , A/C, Electric Windows
Crane Configurations:
Telescopic boom type, simplex pump or double pump optional, lifting capacity 16000kg, length of arm5.6m(not extend)-18.5m(full extend), front outriggers ,360 degree rotation; Working radius 10.5m, lifting height 14m.
80T Crane Truck Advantages :
1. Diesel fuel type, power engine,perfect driving performance
2. Wide and high-speed rotary, easy operation, strong load capacity.
3. Unique design, prolonged service life.
4. Wide application range, suitable for landscaping,electric power, petro-chemical industry, advertisement installation, construction site, narrow road, underground garage, service station, 4S shop, field rescue, factory workshop transportation, etc.
Need more details of our 120T Crane Truck welcome to contact us at any time!
