| Payment Type: | L/C,T/T |
|---|---|
| Incoterm: | FOB,CIF,EXW |
| Min. Order: | 1 Set/Sets |
| Delivery Time: | 20 Days |
Basic Info
Model No.: CLW5071GSS4
Volume: 5001 - 10000L
Transmission Type: Manual
Engine Capacity: ＜4L
Emission Standard: Euro 4
Sprinkling Area: ＞16m
Drive Wheel: 4×2
Certification: CCC, ISO9000
Engine Type: 4 Stroke
Fuel: Diesel
Payload: 20T
Condition: New
Chassis Brand: JAC
Additional Info
Packaging: Nude packing,Waxing before shipping
Productivity: 30000sets/year
Brand: CLW
Transportation: Ocean,Land
Place of Origin: CHINAc
Supply Ability: 3000sets/month
Certificate: SGS,ISO9001, CNAS,CCC
HS Code: 8705909990
Port: SHANGHAI PORT,CHINA
Product Description
Brand new JAC truck mounted water tank 5000l
truck mounted water tank are designed to transport and supply water, whatever industrial or agriculture water, widely used in construction engineering, farm irrigation, draught relief, etc, with non-toxic treatment inside tank or tank made of stainless steel, the water tank truck can be suitable for transporting drinking water, called as potable water tanker, drinking water tanker, stainless steel water tanker, agua potavel, safe to human body.
Water tank truck can also be equipped with special sprayers to achieve front flush, rear sprinkle, side spray, to sprinkle and clean the roads, streeets for environmental sanitation and protection, called as water sprinkler, water spray truck, with rear working platform and high cannon, the Water lorry can also be used to water the plants, even high trees in virescence, called as watering truck.
Water delivery truck can be also equipped with pesticide spraying machine or fire pump, to be used to spray pesticide in agriculture pest control field or fire fighting in emergency rescue.
.What the right truck mounted water tank can do for your business:
SPECIFICATIONS :
| truck mounted water tank JAC (5,000 litres) | ||
| General | Vehicle Brand | CLW |
| Chassis Brand | JAC | |
| Overall Dimension | 5995 * 2000 * 2380 mm | |
| GVW / Kerb Weight | 7360kg / 3330kg | |
| Cab | Cab Capacity | 2 persons allowed |
| Air Conditioner | W/ air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | CHAOCHAI engine | |
| Power | 120 Hp (86 KW) | |
| Displacement | 2544 ml | |
| Emission Standard | Euro V | |
| Chassis | Drive Type | 4X2, left hand drive |
| Transmission | 6 speed gear box, no overhaul within 500,000km | |
| Wheelbase/No. of axle | 3360 mm / 2 | |
| Tyre Specification | 7.00R16 | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 90 km/h | |
| Paint | Metallic paint | |
| Superstructure | Tank Capacity | 5,000 Litres ( About 1,500 gallons) |
| Tank Material | Carbon steel | |
| Flow Speed | 1000 litres / min | |
| Delivery Head | 60 m | |
| Suction Head | 7 m | |
| Hose | High quality PVC hose, anti-aging | |
| All other standard accessories: manhole, ladder, inlet, discharge--. | ||
| Optional | ** Tank material could be stainless steel or carbon steel with non-toxic treatment for potable water, safe for human body. | |
DETAILS :

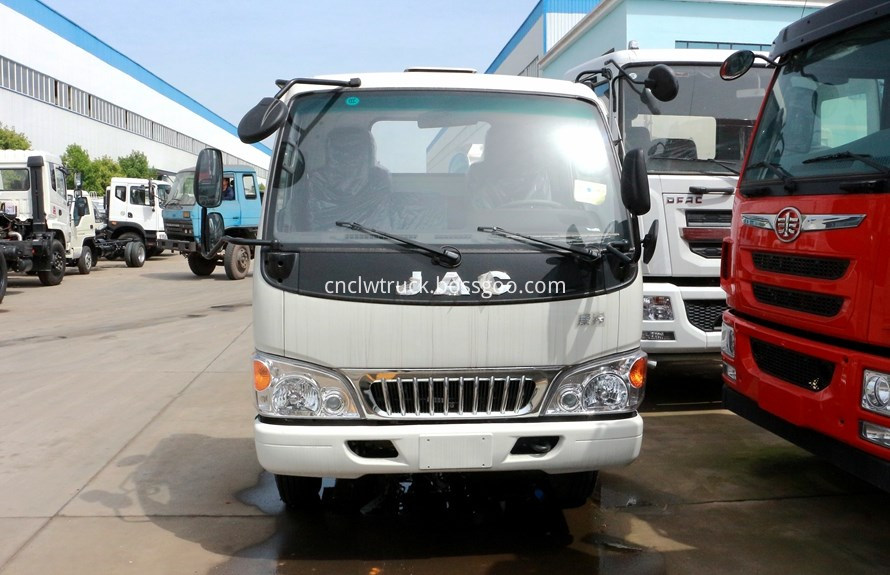

JAC truck mounted water tank in action

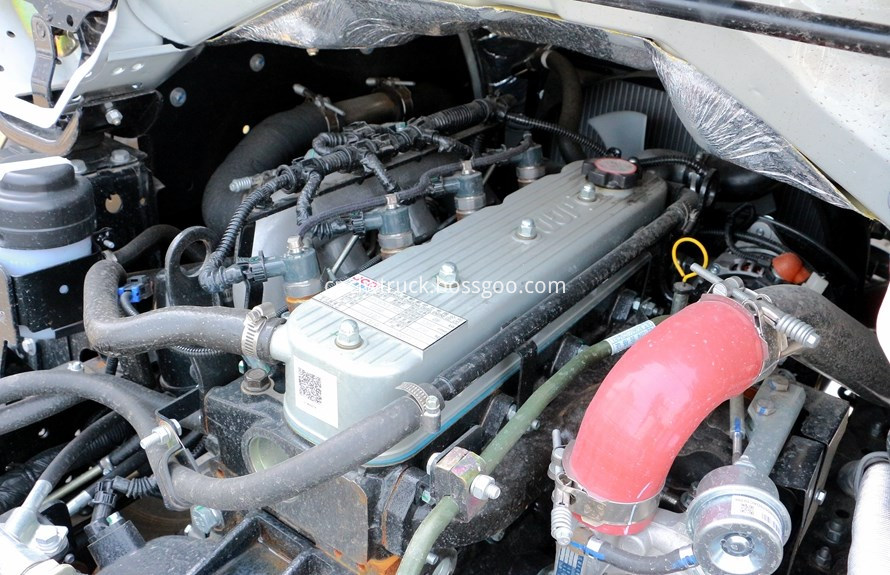

JAC truck mounted water tank parts' details

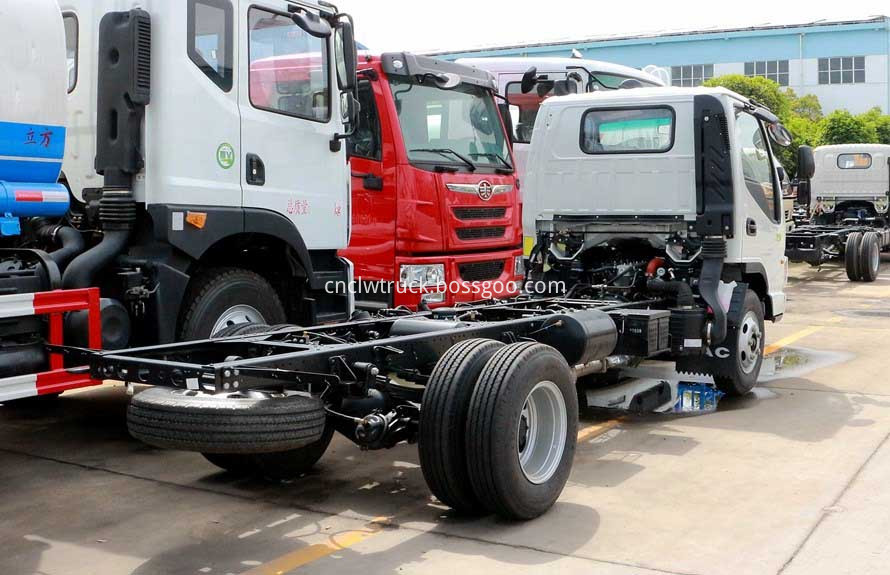

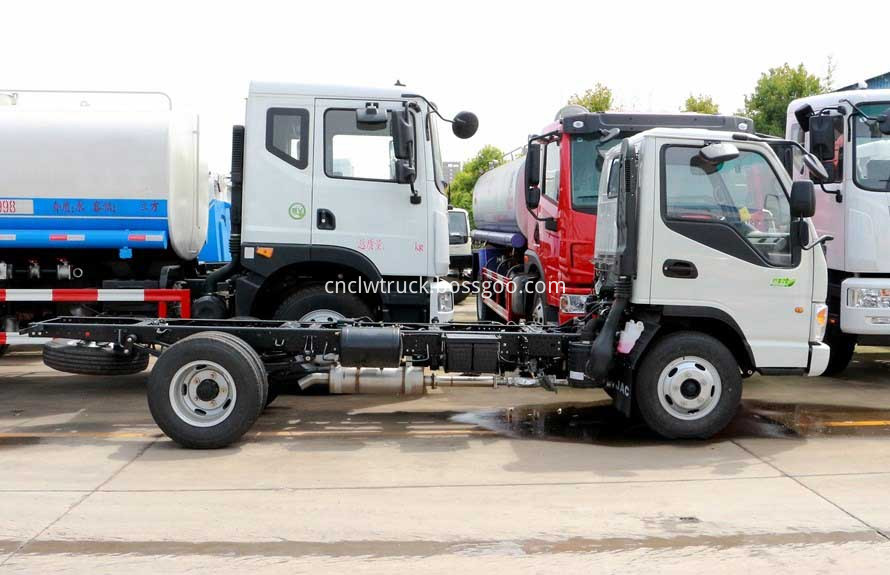

JAC truck mounted water tank chassis's pictures
JAC truck mounted water tank can be equipped with following options
Dongfeng water truck chassis' details
What we can supply for you:
We are chinese top one brand new special purpose trucks manufacturer, we have over 15 years production experiences and more than 8000 employees, export volume per year 60,000,000 dollars, 3000set/year.
Welcome to visit us and looking forward to bulid a long win-win business cooperation.
