| Payment Type: | L/C,T/T,Western Union |
|---|---|
| Incoterm: | FOB,CIF,EXW |
| Min. Order: | 1 Set/Sets |
| Delivery Time: | 20 Days |
Basic Info
Model No.: CLW5411RWT
Fuel: Diesel
Certification: ISO9000, CCC
Emission Standard: Euro 4
Condition: New
Chassis Brand: JAC
Additional Info
Packaging: Nude packing,Waxing before shipping
Productivity: 30000sets/year
Brand: CLW
Transportation: Ocean,Land
Place of Origin: CHINA
Supply Ability: 3000sets/month
Certificate: SGS,ISO9001, CNAS,CCC
HS Code: 8705909990
Port: SHANGHAI PORT,CHINA,ANY MAIN PORT IN CHINA
Product Description
Guaranteed 100% New JAC 5.6m Wadeable Car Towing vehicle for Sale
Car Towing vehicle is used to transport motor vehicles or tow the vehicles that are broken down, based on the type or size of vehicle to be towed, the road towing vehicles are usually designed into two types, ine is slidebed tow truck with wheel-lift function, another one is wheel-lift units mounted a combination boom with sling that can hauling all kinds of heavy duty equipments.
VEHICLE DIAGRAM :
VEHICLE PICTURES :

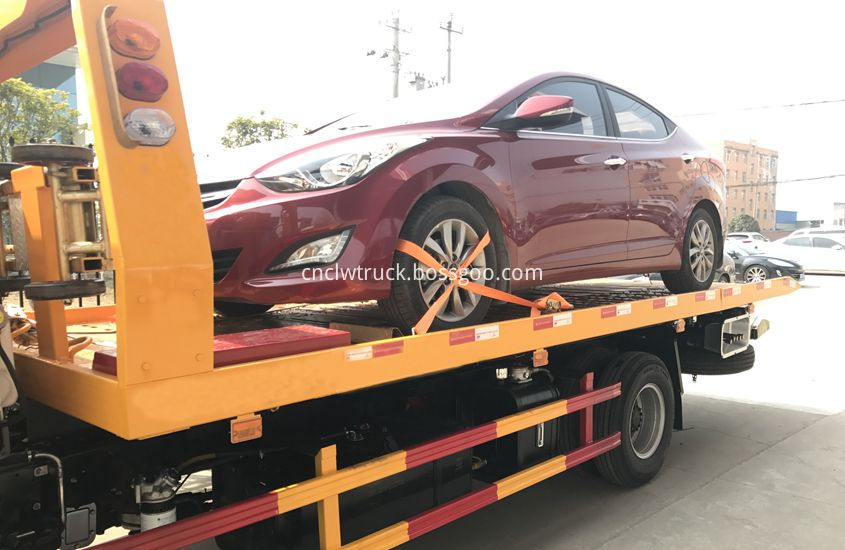

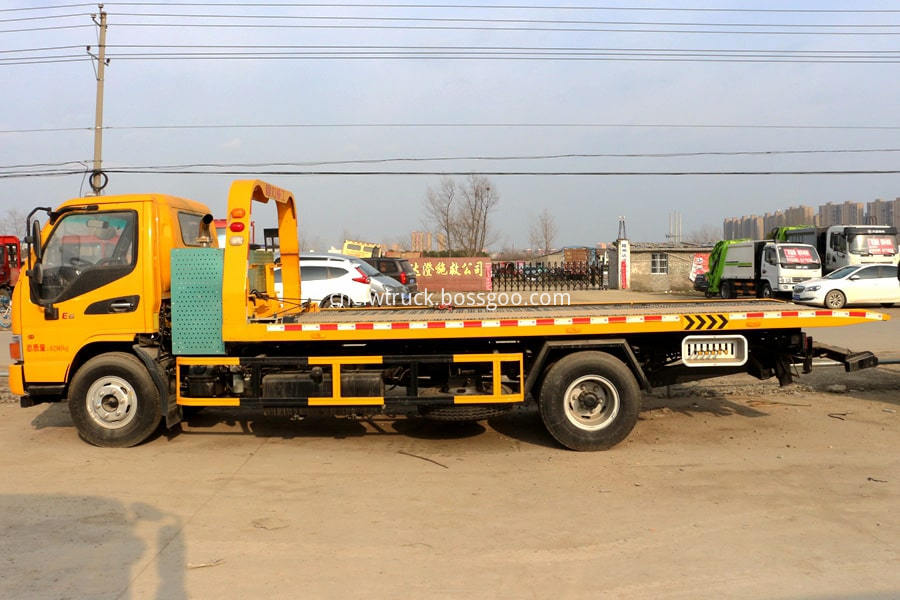

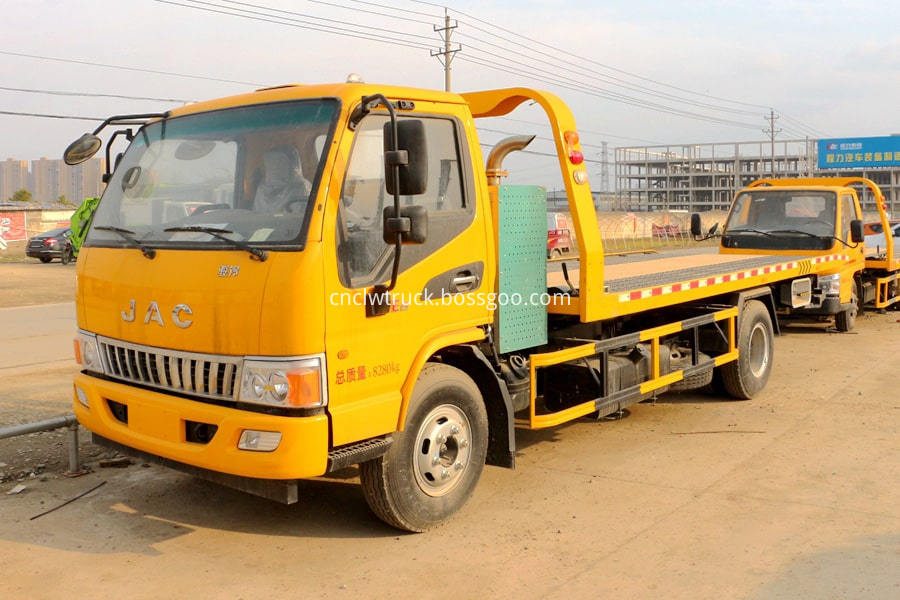

JAC 5.6m Wadeable Car Towing Vehicle Picture 1

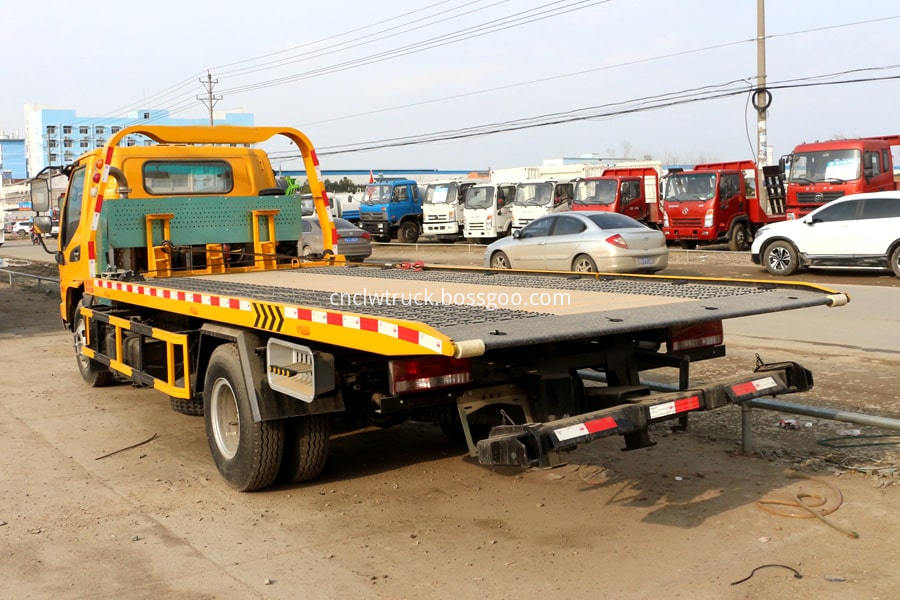

JAC 5.6m Wadeable Car Towing Vehicle Picture 2

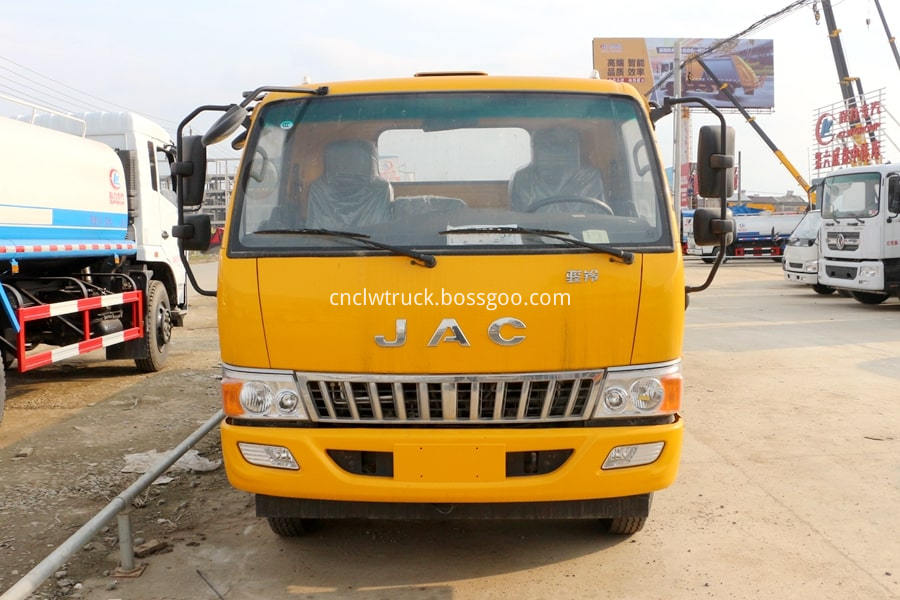

JAC 5.6m Wadeable Car Towing Vehicle Picture 3

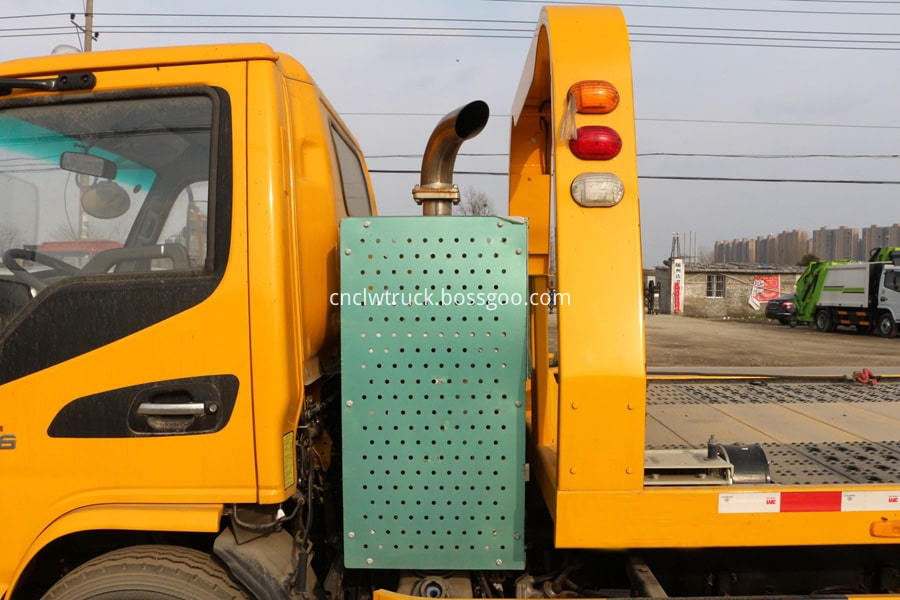

JAC 5.6m Wadeable Car Towing Vehicle Details Picture 1

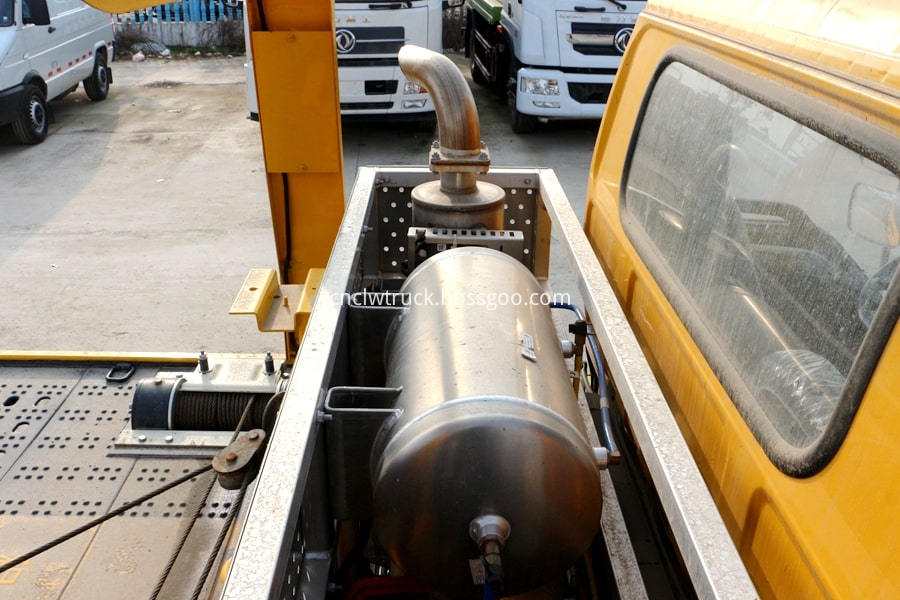

JAC 5.6m Wadeable Car Towing Vehicle Details Picture 2

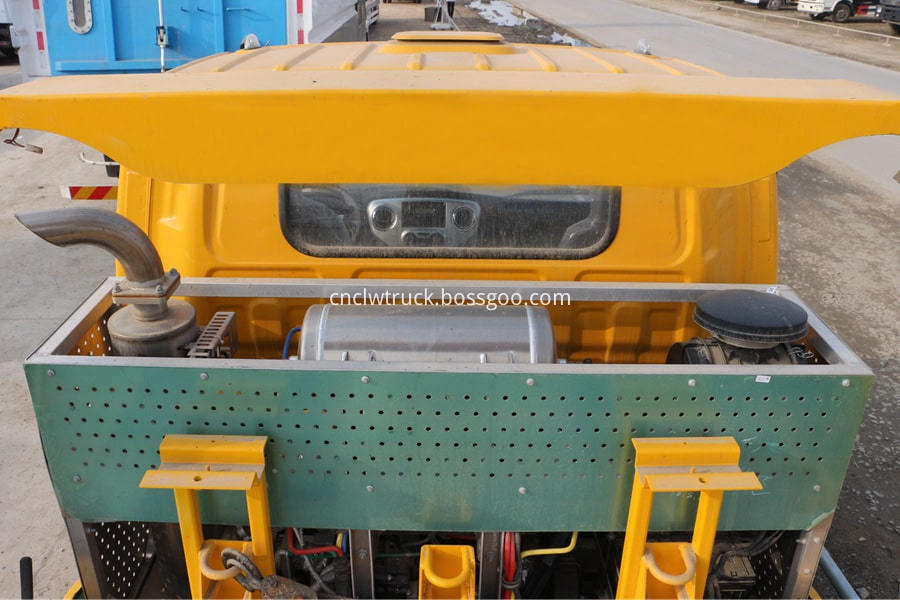

JAC 5.6m Wadeable Car Towing Vehicle Details Picture 3
JAC 5.6m Wadeable Car Towing Vehicle Details Picture 4
JAC 5.6m Wadeable Car Towing Vehicle Details Picture 5
VEHICLE PARAMETERS :
VEHICLE PARAMETERS
Vehicle
Name
JAC
Road Wrecker
Overall
Size
(L*W*H/mm)
7800*2350*2300
GVW
8280kg
Curb
Weight
5350kg
Flatbed
Size
5.6*2.33m
Hydraulic Pressure Tail Plank Length
1.2m
Towing
Capacity of Winch
4T
Lifting Capacity
4T
CHASSIS PARAMETERS
Chassis
Brand
JAC
Wheel
Base
4150mm
Chassis
Model
Drive
Model
4X2,
LHD/RHD
Axles
Nos
2
Tire
Spec.
7.50R16
Gearbox
6F,1R
Tire
Nos.
6+1(spare)
Engine
Model
WP3Q130E50
Engine
Brand
WEICHAI
Displacement
2970ml
Engine
Power
130HP
Fuel
Type
Diesel
Brake
Type
Air
Brake
BODY
CONFIGURATION
Stand
Configuration
4T towing winch, 25m steel wire rope, one pair auxiliary wheel ,
L-type fork one pair, square sleeve one pair, bundling belt 8units, hook,
working light 2units, yellow alarm lamp, tools and accessories
Optional
Configuration
Imported
parts, tire holder, hand washing device, LED burst flashing light, full-floor flatbed
HFC1081
Chassis Configurations: JAC Chassis, New Type Single Row Cabin , WEICHAI Diesel 130HP Engine, 6 Speed Transmission, Wheelbase 4415mm, 5T Rear Axle, 7.50R16 Tire, ABS, Air Brake, Power Steering , A/C,Electric Windows, Cruise Control System
Top flatbed Configurations:
Towing one by two type, length of flatbed 5.6m, width of flatbed 2.33m, with 1.2m length hydraulic pressure tailboard.
The vehicle after retrofitting the exhaust pipe, can wide 1meter deep.
Files with vehicles:
Chassis Certificate, Vehicle Certificate, Proforma Invoice, English Vesion User Manual( any language version avaiable), Quality Warranty Certificate, Country of Original, Or Any other certificates can provide if contract need.
Car Towing Vehicles Advantages :
1. Diesel fuel type, super powerful engine, perfect driving performance, no overhaul within 100,000km.
2. Wide and high-speed rotary, easy operation, strong load capacity.
3. Unique design, prolonged service life.
4. High quality hydraulic system.
5. Manufacturer directly sale, cheap price with promptly after-sales response.
Need more details of our Car Towing Vehicles welcome to contact us at any time!
