| Payment Type: | L/C,T/T |
|---|---|
| Incoterm: | FOB,CIF,EXW |
| Min. Order: | 1 Set/Sets |
| Delivery Time: | 30 Days |
Basic Info
Model No.: CLW5230IVECO6
Volume: 15001 - 30000L
Transmission Type: Manual
Engine Capacity: 4 - 6L
Emission Standard: Euro 4
Sprinkling Area: ＞16m
Drive Wheel: 4×2
Certification: CCC, ISO9000
Engine Type: 4 Stroke
Fuel: Diesel
Payload: 30T
Condition: New
Chassis Brand: IVECO
Tank Color: Army Green Or Any Other Colors Optional
Additional Info
Packaging: Nude packing,Waxing before shipping
Productivity: 30000sets/year
Brand: CLW
Transportation: Ocean,Land
Place of Origin: CHINA
Supply Ability: 3000sets/month
Certificate: SGS,ISO9001, CNAS,CCC
HS Code: 8705909990
Port: SHANGHAI PORT,CHINA
Product Description
Guaranteed 100% Dongfeng off-road water truck 4X4
Water truck 4X4 are designed to transport and supply water, whatever industrial or agriculture water, widely used in construction engineering, farm irrigation, draught relief, etc, with non-toxic treatment inside tank or tank made of stainless steel, the water tank truck can be suitable for transporting drinking water, called as potable water tanker, drinking water tanker, stainless steel water tanker, agua potavel, safe to human body.
Off-road water truck can also be equipped with special sprayers to achieve front flush, rear sprinkle, side spray, to sprinkle and clean the roads, streeets for environmental sanitation and protection, called as water sprinkler, water spray truck, with rear working platform and high cannon, the Water lorry can also be used to water the plants, even high trees in virescence, called as watering truck.
All-wheel drive water truck can be also equipped with pesticide spraying machine or fire pump, to be used to spray pesticide in agriculture pest control field or fire fighting in emergency rescue.
.What the right water truck 4X4 can do for your business:
SPECIFICATIONS :
water bowser truck IVECO (20,000 litres)
General
Vehicle Brand
CLW
Chassis Brand
IVECO
Overall Dimension
9900 * 2500 * 3400 mm
GVW / Kerb Weight
25,000 kg / 13,030 kg
Cab
Cab Capacity
2 persons allowed with 1 sleeper
Air Conditioner
W/ air conditioner
Engine
Fuel Type
Diesel
Engine Brand
IVECO Cursor engine
Power
380 Hp (280 KW)
Displacement
8709 ml
Emission Standard
Euro III
Chassis
Drive Type
6X4, left hand drive or right hand drive
Transmission
12-speed forward, 2 reverse
No. of axle
3
Tyre Specification
12.00R20
Tyre Number
10 tyres and 1 spare tyre
Max Speed
80 km/h
Paint
Metallic paint
Superstructure
Tank Capacity
20,000 Litres ( About 5,300gallons)
Tank Material & Structure
Carbon steel, Inner baffles inside tank for prevention of longitudinal surge during moving.
Water Pump
A separate HONDA gasoline engine pump equipped for overhead delivery, flow capacity 35m3/hour, delivery head 21m.
Tank Interior Treatment
Anti-corrosion treatment
Hose
High quality strengthened hoses, 6 m X 2 pcs, with aluminum coupling.
Optional
** Tank material could be stainless steel or carbon steel with non-toxic treatment for potable water, safe for human body.
DETAILS :

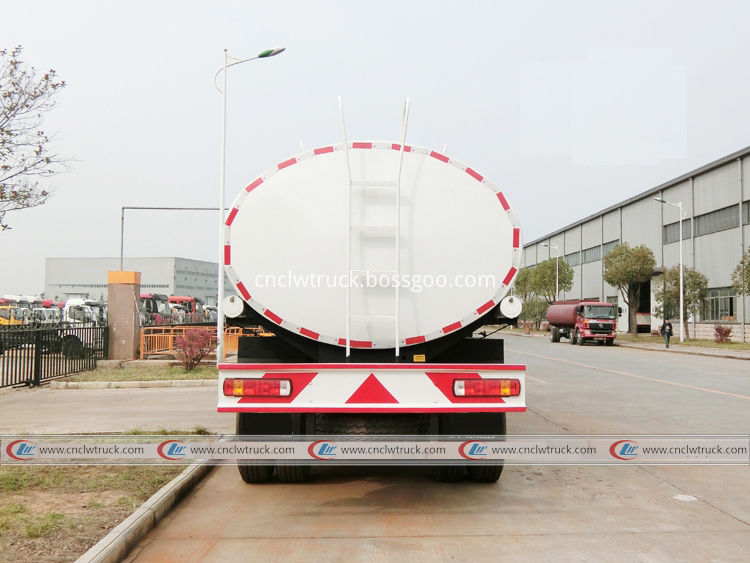

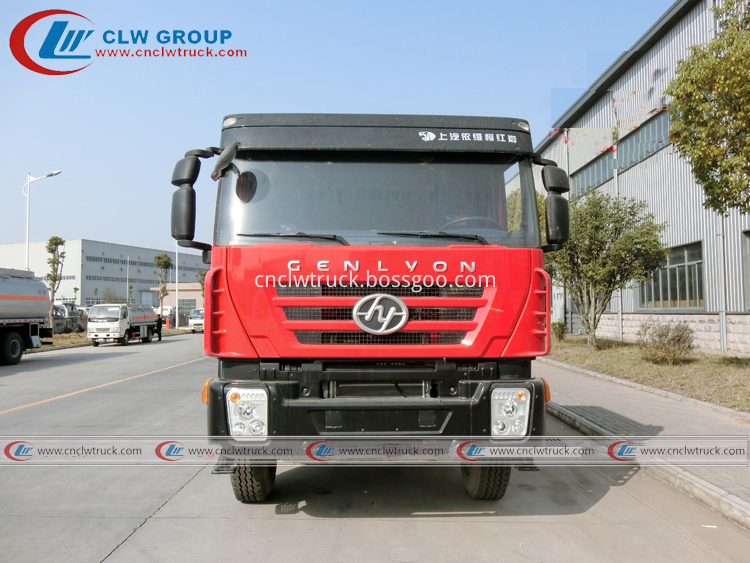

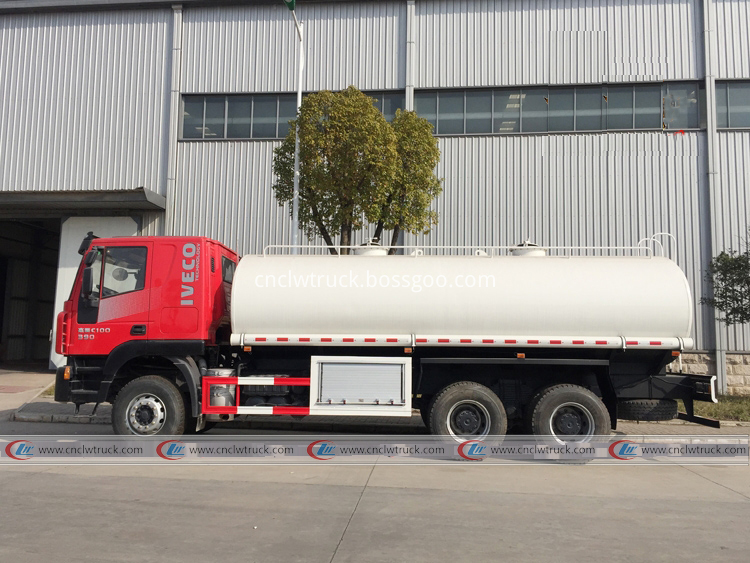

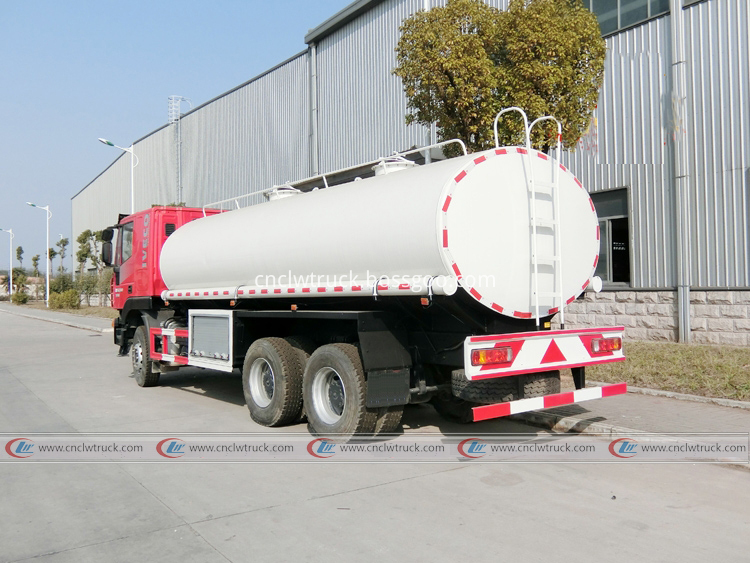

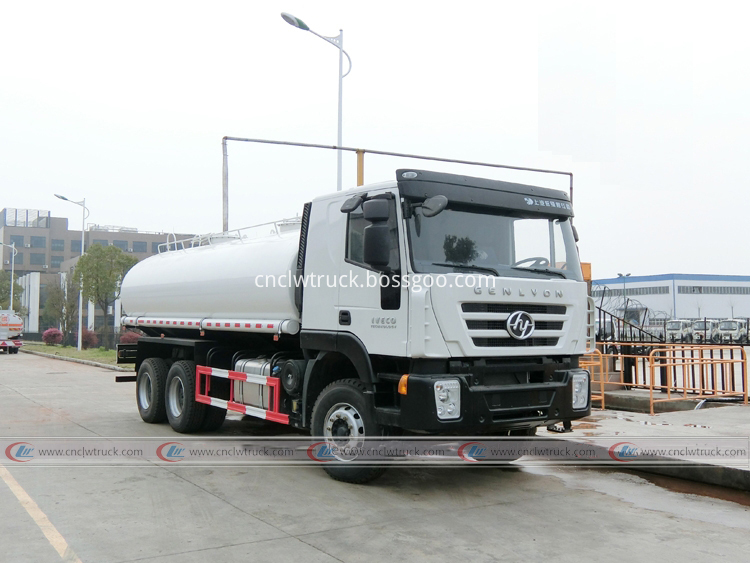

IVECO LHD/RHD water bowser truck pictures
IVECO LHD/RHD water bowser truck can be equipped with following options
IVECO LHD/RHD water bowser truck structural composition
IVECO LHD/RHD water bowser truck parts' details
What we can supply for you:
We are chinese top one brand new special purpose trucks manufacturer, we have over 15 years production experiences and more than 8000 employees, export volume per year 60,000,000 dollars, 3000set/year.
Welcome to visit us and looking forward to bulid a long win-win business cooperation.
