Brand New ISUZU 8cbm sweeper vacuum road truck

Basic Info

Model No.: CLW5071TXSQL5

Type: Sweep and Suck Type

Payload: 30T

Transmission Type: Manual

Engine Type: 4 Stroke

Fuel: Diesel

Emission Standard: Euro 3, Euro 4

Certification: CCC, ISO9000

Condition: New

Vehicle Color: White, Blue, Yellow, Red Or Any Color Ia Available If Customer Request

Chassis Brand: ISUZU

Additional Info

Packaging: Nude packing,Waxing before shipping

Productivity: 30000sets/year

Brand: CLW

Transportation: Ocean,Land

Place of Origin: CHINA

Supply Ability: 3000sets/month

Certificate: SGS

HS Code: 8705909990

Port: SHANGHAI PORT,CHINA,Any Main Port China

Product Description

Guaranteed 100% Brand New ISUZU 8cbm sweeper vacuum road truck

Sweeper vacuum road truck  is used for washing, cleaning and vacuum collecting of surface dusts, leaves, mud, soil, sand, stone chips, gravels and other small particles on the ground of city, municipal roads and areas. Meantime, it has high pressure jetting function - washing and flushing the road, able to remove the stubborn stuff on the road. It is widely used in the municipal sanitation field because of convenient operation and high efficiency.

The ISUZU road washing truck is equipped with auxiliary engine, air blower, imported high pressure plunge pump, water tank, stainless steel dustbin, sweeping brooms, suction nozzles, sprayers, etc.

Street washing truck has self cleaning system which could tip garbage and washing the dustbin automatically.

SPECIFICATIONS :

Chassis specifications:  chassis model QL1070A, 5 speeds gearbox, with power steering, A/C, automatically air-cut brake, tire spec 7.00R16, wheelbase 3815mm, with ABS, ISUZU engine 130hp .

Body specifications:

1. Body material: stainless steel 304, dustbin capacity 5.3cbm, water tank capacity 3.8cbm;

2. Auxiliary diesel engine cummins brand 140hp, SANYO motor; auxiliary engine tachometer, auxiliary engine water-thermometer, oil alarm device;

3. Sweeping width 2800-3200mm, working speed 15-20km/h, max cleaning capacity 48000㎡/h, max suction diameter ≥100mm;

4. High pressure pump (imported from Germany) with front flushing, side sprinkling, rear spraying, high pressure washing and dustbin self-cleaning function; with water filter, pipe system, high pressure sprinkler, four sweepers with one dust suction plate;

5. PLC one-key control, LPC electric control, tail LED arrow light, monitor and camera, 18m hight pressure washing pipe, cleaning pressure 10MPa;

Files with vehicle:  basic tool & accessories , english vesion manual book, operation vedio..

VEHICLE  PARAMETERS  :

VEHICLE PICTURES  :

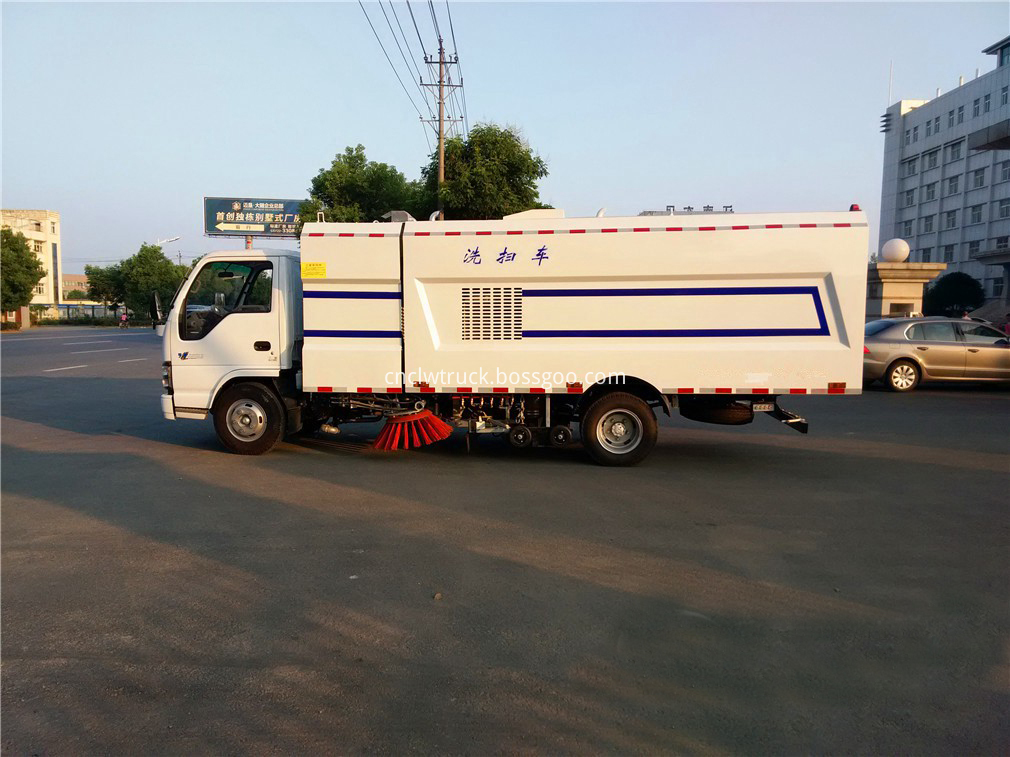

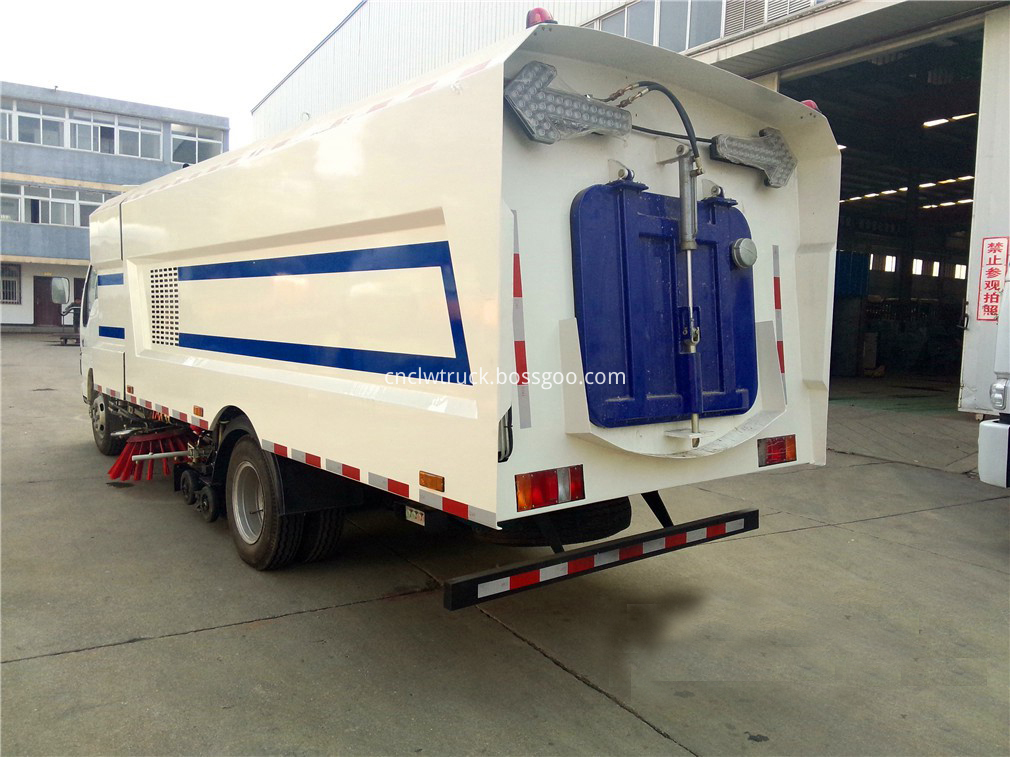

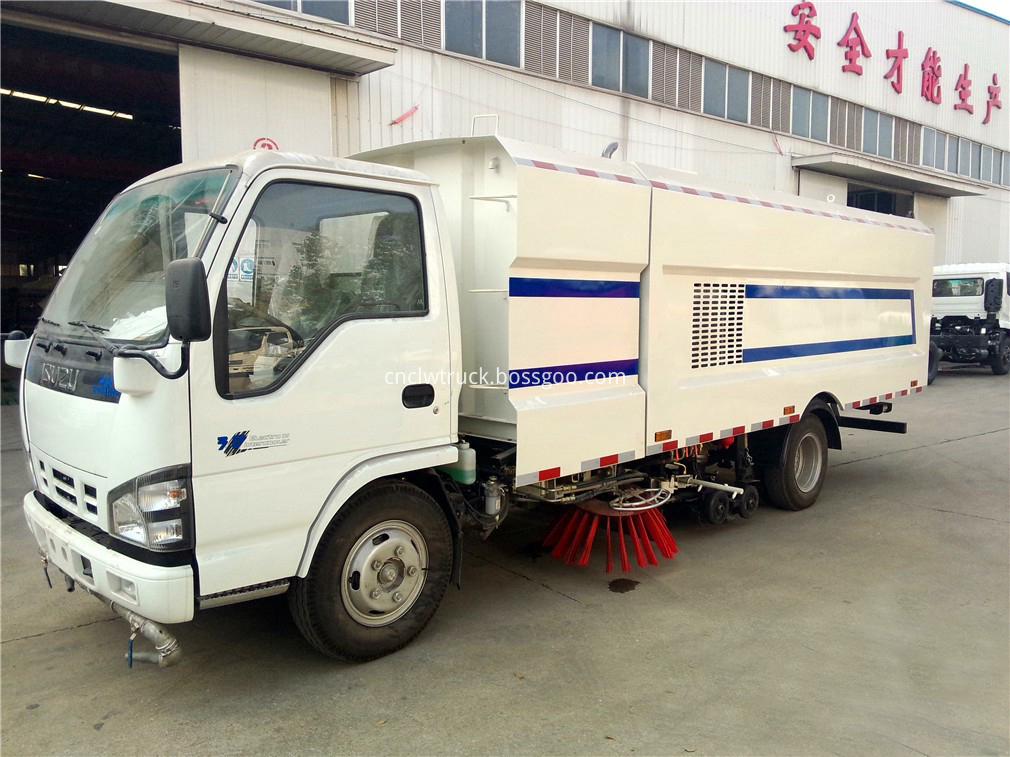

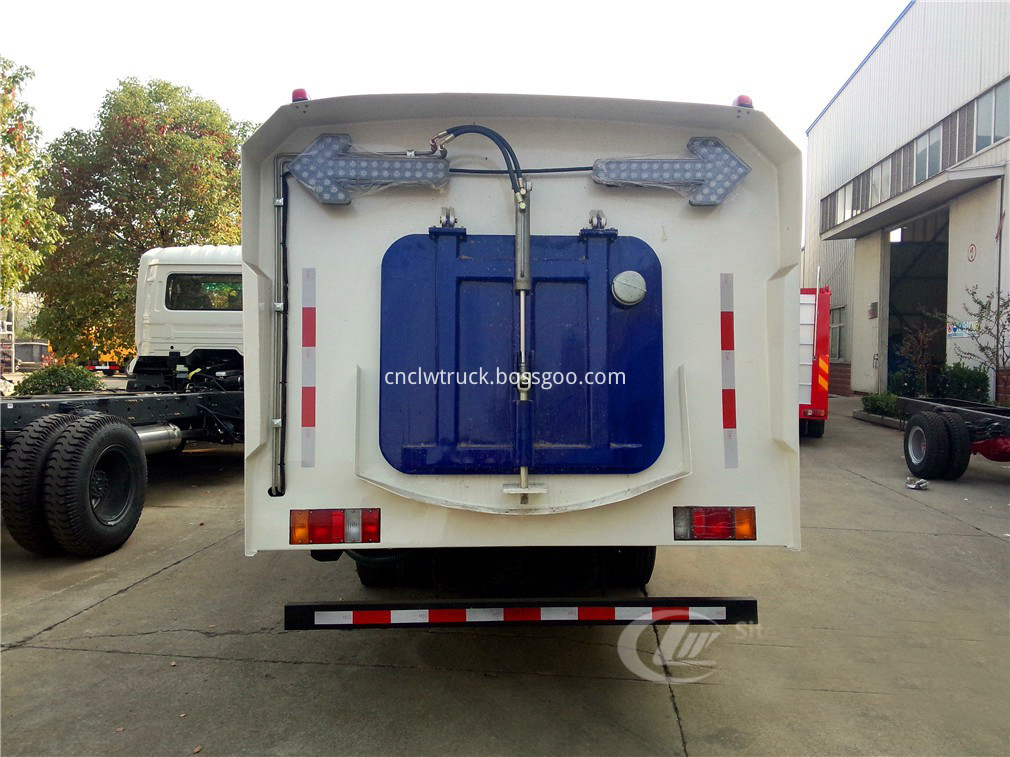

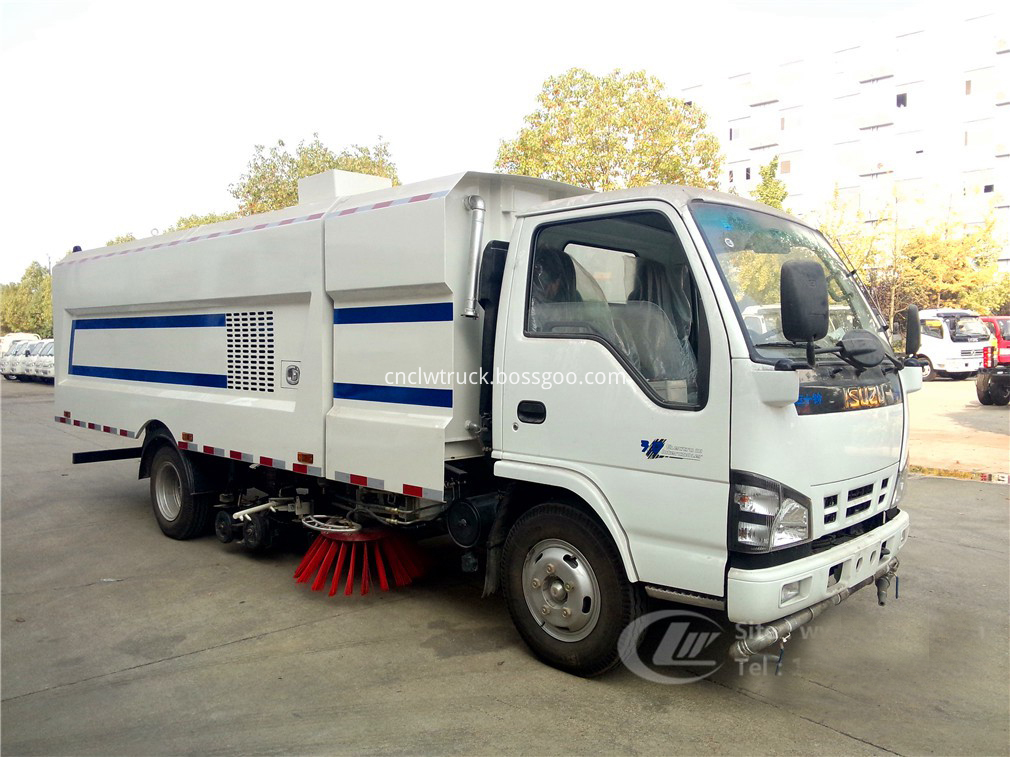

Pictures of  ISUZU Sweeper Vacuum Road Truck

Advantages of  Our  Sweeper Vacuum Road Truck

Parking lot clenaing truck--high pressure wahsing function :

(Road  washing truck in action---front flushing)

(Road  washing truck in action---high pressure whasing gun)

(Road  washing truck in action---rear sprinkling)

(Road  washing truck in action---side spraying)

Need more details of our trucks welcome to contact us at any time, thanks!
