| Payment Type: | L/C,T/T,Western Union |
|---|---|
| Incoterm: | FOB,CIF,EXW |
| Min. Order: | 1 Set/Sets |
| Delivery Time: | 20 Days |
Basic Info
Model No.: CLW5422RWT
Fuel: Diesel
Certification: ISO9000, CCC
Emission Standard: Euro 4
Condition: New
Chassis Brand: FAW
Additional Info
Packaging: Nude packing,Waxing before shipping
Productivity: 30000sets/year
Brand: CLW
Transportation: Ocean,Land
Place of Origin: CHINA
Supply Ability: 3000sets/month
Certificate: SGS,ISO9001, CNAS,CCC
HS Code: 8705909990
Port: SHANGHAI PORT,CHINA,ANY MAIN PORT IN CHINA
Product Description
Guaranteed 100% New FAW VH 4.2m Transport Towing vehicle for Sale
Transport Towing vehicle is used to transport motor vehicles or tow the vehicles that are broken down, based on the type or size of vehicle to be towed, the road towing vehicles are usually designed into two types, ine is slidebed tow truck with wheel-lift function, another one is wheel-lift units mounted a combination boom with sling that can hauling all kinds of heavy duty equipments.
VEHICLE DIAGRAM :
VEHICLE PICTURES :

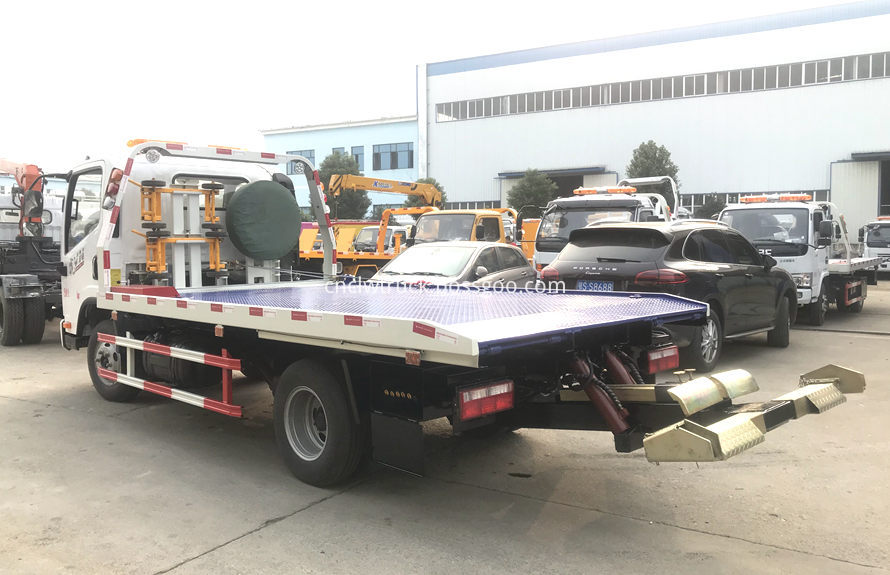

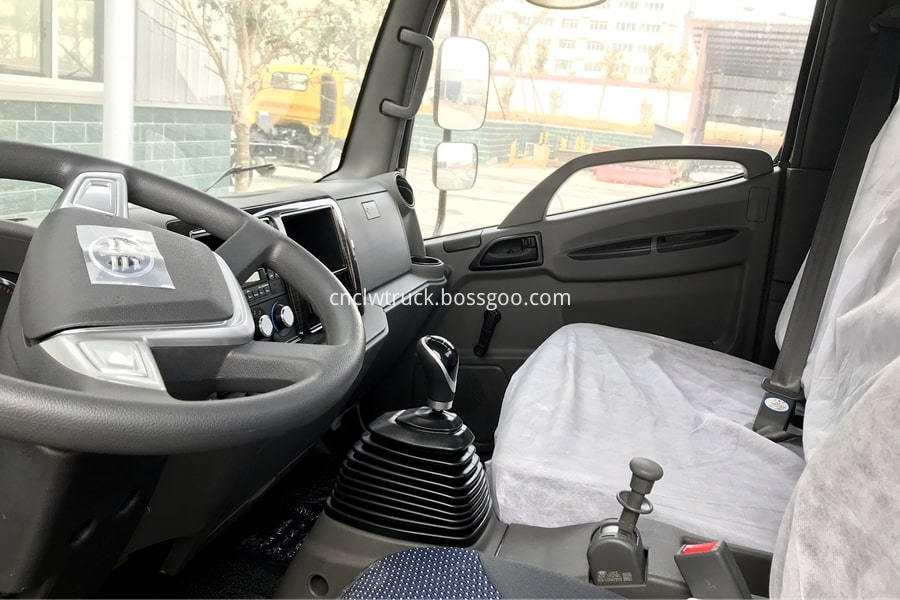

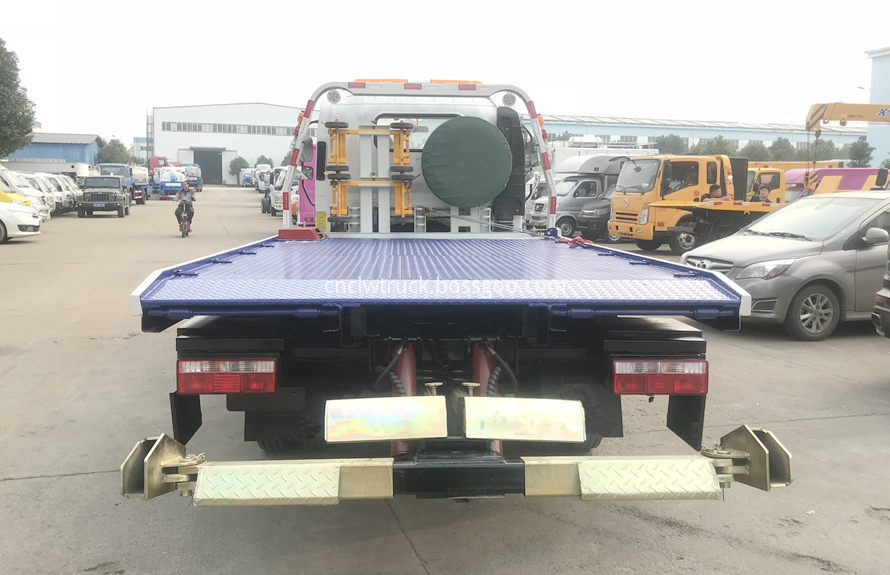

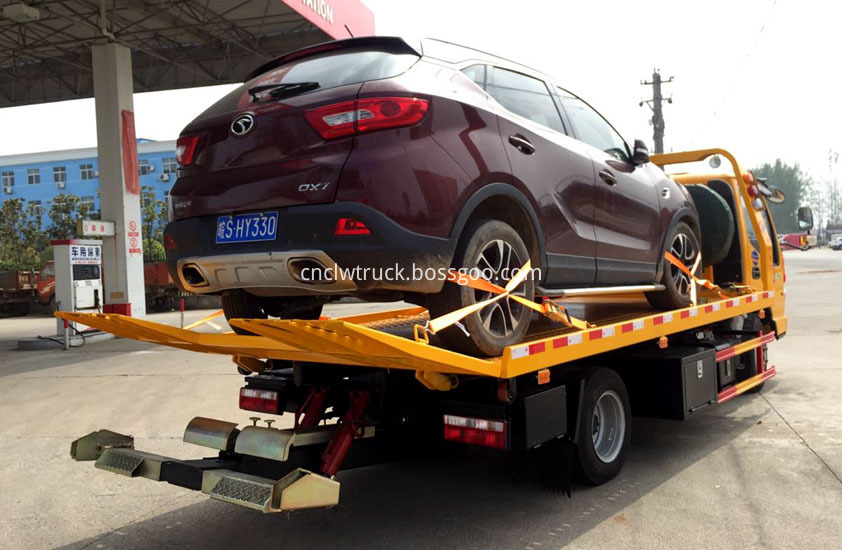

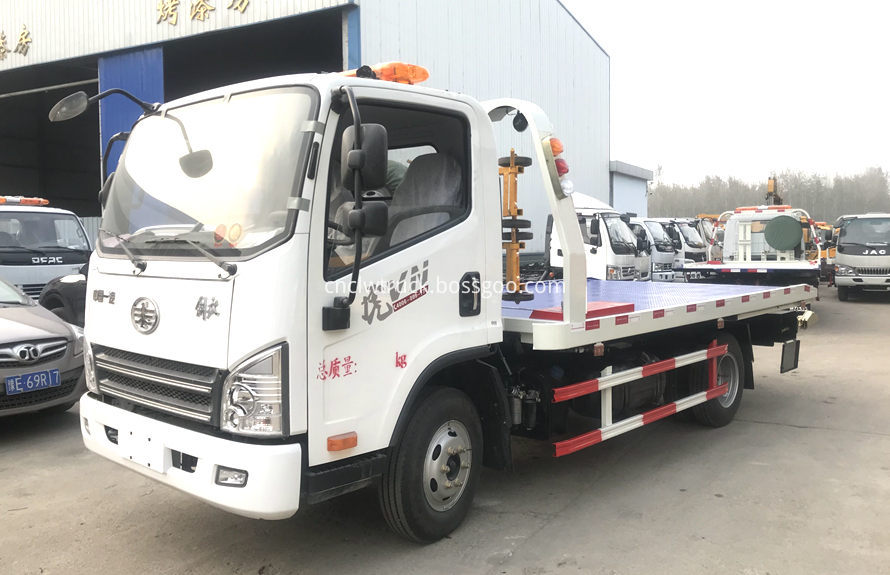

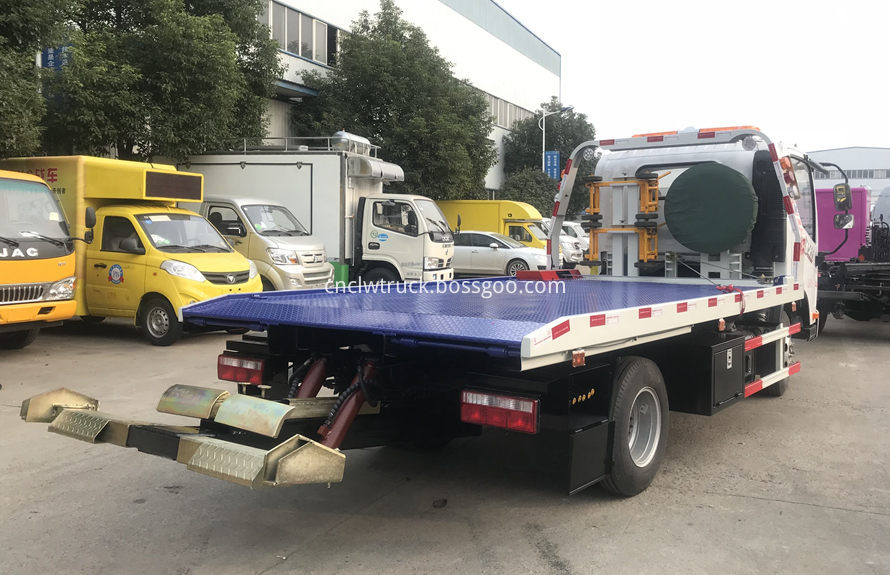

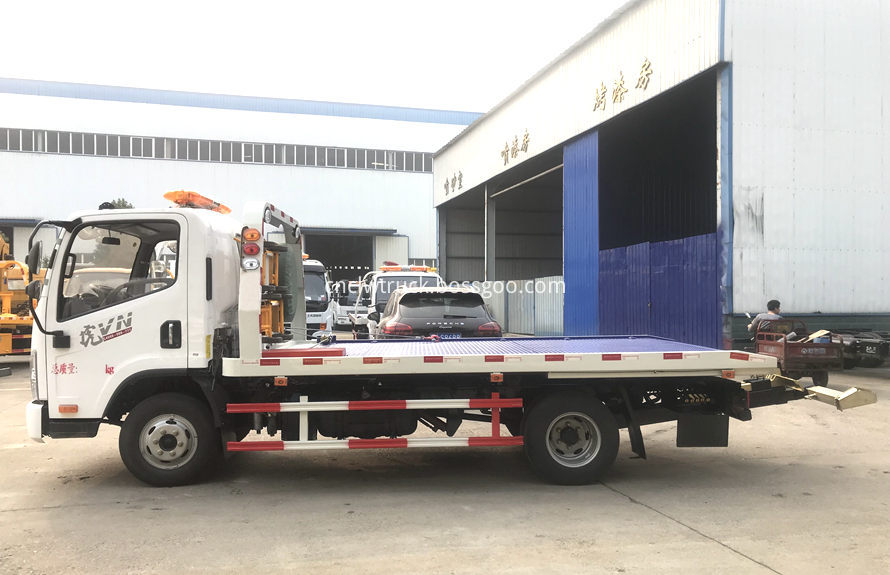

FAW VH 4.2m Transport Towing vehicle Picture 1
FAW VH 4.2m Transport Towing vehicle Picture 2
FAW VH 4.2m Transport Towing vehicle Picture 3
FAW VH 4.2m Transport Towing vehicle Picture 4
FAW VH 4.2m Transport Towing vehicle Picture 5
FAW VH 4.2m Transport Towing vehicle Picture 6

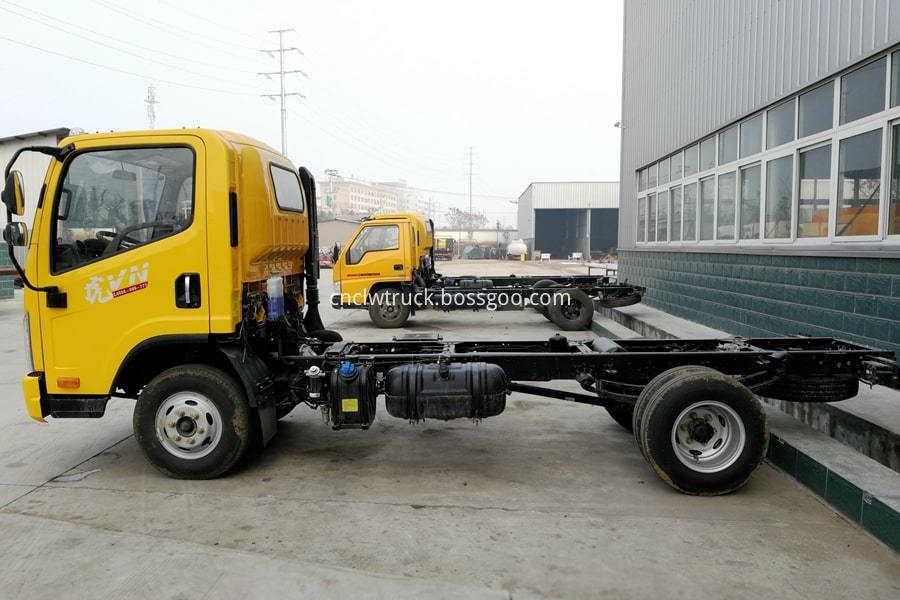

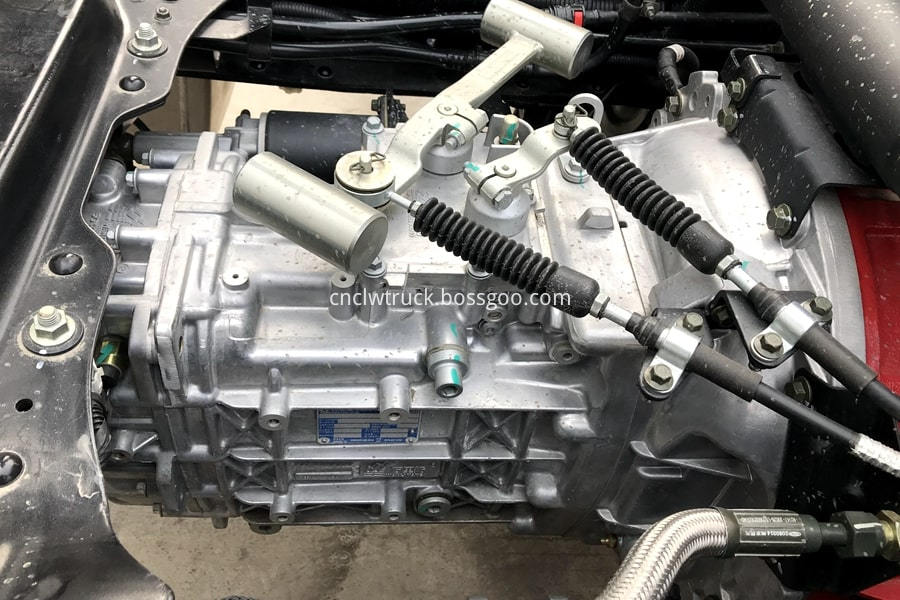

FAW VH 4.2m Transport Towing vehicle Chassis Picture 1
FAW VH 4.2m Transport Towing vehicle Chassis Picture 2
FAW VH 4.2m Transport Towing vehicle Chassis Picture 3
VEHICLE PARAMETERS :
VEHICLE PARAMETERS
Vehicle
Name
FAW VH
Road Wrecker
Overall
Size
(L*W*H/mm)
5995*2300*2350
GVW
4495kg
Curb
Weight
3780kg
Flatbed
Size
4.2*2.32m
Hydraulic Pressure Tail Plank Length
1.2m
Towing
Capacity of Winch
4T
Lifting Capacity
4T
CHASSIS PARAMETERS
Chassis
Brand
FAW
Wheel
Base
3300mm
Chassis
Model
Drive
Model
4X2,
LHD/RHD
Axles
Nos
2
Tire
Spec.
7.00R16
Gearbox
5F,1R
Tire
Nos.
6+1(spare)
Engine
Model
Engine
Brand
WEICHAI POWER
Displacement
2088ml
Engine
Power
95HP
Fuel
Type
Diesel
Brake
Type
Air
Brake
BODY
CONFIGURATION
Stand
Configuration
4T towing winch, 25m steel wire rope, one pair auxiliary wheel ,
L-type fork one pair, square sleeve one pair, bundling belt 8units, hook,
working light 2units, yellow alarm lamp, tools and accessories
Optional
Configuration
Imported
parts, tire holder, hand washing device, LED burst flashing light, full-floor flatbed
CA1047
WP2.1Q95E50
Chassis Configurations: FAW VH Chassis, New Type Single Row Cabin , WEICHAI Diesel 95HP Engine, 5 Speed Transmission, Wheelbase 3300mm, 3.5T Rear Axle, 7.00R16 Tire, ABS, Air Brake, Power Steering , A/C, Electric Windows, Cruise Control System, Central Lock
Top flatbed Configurations:
Towing one by two type, length of flatbed 4.2m, width of flatbed 2.32m, with 1.2m length hydraulic pressure tailboard.
Files with vehicles:
Chassis Certificate, Vehicle Certificate, Proforma Invoice, English Vesion User Manual( any language version avaiable), Quality Warranty Certificate, Country of Original, Or Any other certificates can provide if contract need.
Transport Towing Vehicle Advantages :
1. Diesel fuel type, super powerful engine, perfect driving performance, no overhaul within 100,000km.
2. Wide and high-speed rotary, easy operation, strong load capacity.
3. Unique design, prolonged service life.
4. High quality hydraulic system.
5. Manufacturer directly sale, cheap price with promptly after-sales response.
Need more details of our Transport Towing Vehicle welcome to contact us at any time!
