Brand New FAW J6F Motorcycle Towing vehicle

Payment Type: L/C,T/T,Western Union
Incoterm: FOB,CIF,EXW
Min. Order: 1 Set/Sets
Delivery Time: 20 Days

Basic Info

Model No.: CLW5419RWT

Fuel: Diesel

Certification: ISO9000, CCC

Emission Standard: Euro 4

Condition: New

Chassis Brand: FAW

Additional Info

Packaging: Nude packing,Waxing before shipping

Productivity: 30000sets/year

Brand: CLW

Transportation: Ocean,Land

Place of Origin: CHINA

Supply Ability: 3000sets/month

Certificate: SGS,ISO9001, CNAS,CCC

HS Code: 8705909990

Port: SHANGHAI PORT,CHINA,ANY MAIN PORT IN CHINA

Product Description

Guaranteed 100%  New FAW J6F Motorcycle Towing vehicle for Sale

Motorcycle Towing vehicle is used to transport motor vehicles or tow the vehicles that are broken down, based on the type or size of vehicle to be towed, the road towing vehicles are usually designed into two types, ine is slidebed tow truck with wheel-lift function, another one is wheel-lift units mounted a combination boom with sling that can hauling all kinds of heavy duty equipments.

VEHICLE  DIAGRAM :

Road Wrecker Detailed Description logo

Operation Status of Road Wrecker logo


VEHICLE PICTURES :

Motorcycle Towing vehicle

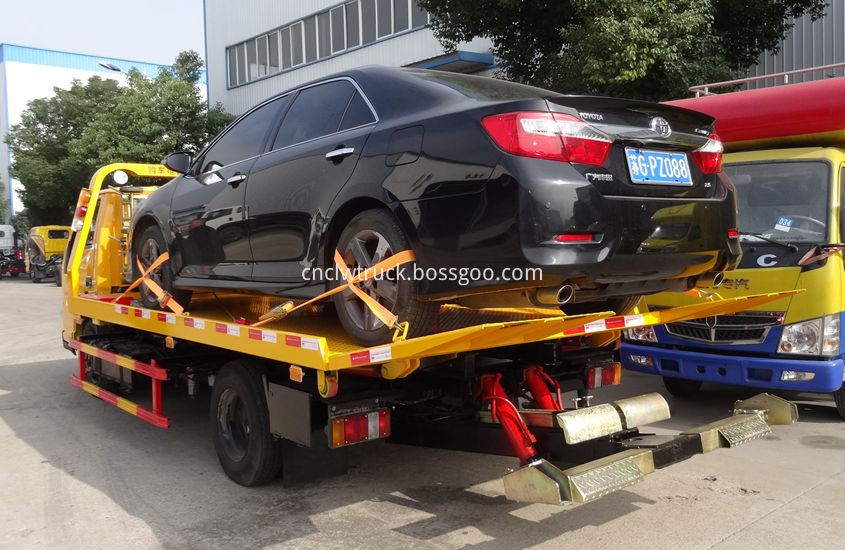

FAW J6F Motorcycle Towing vehicle Picture 1

Motorcycle Towing vehicle 1

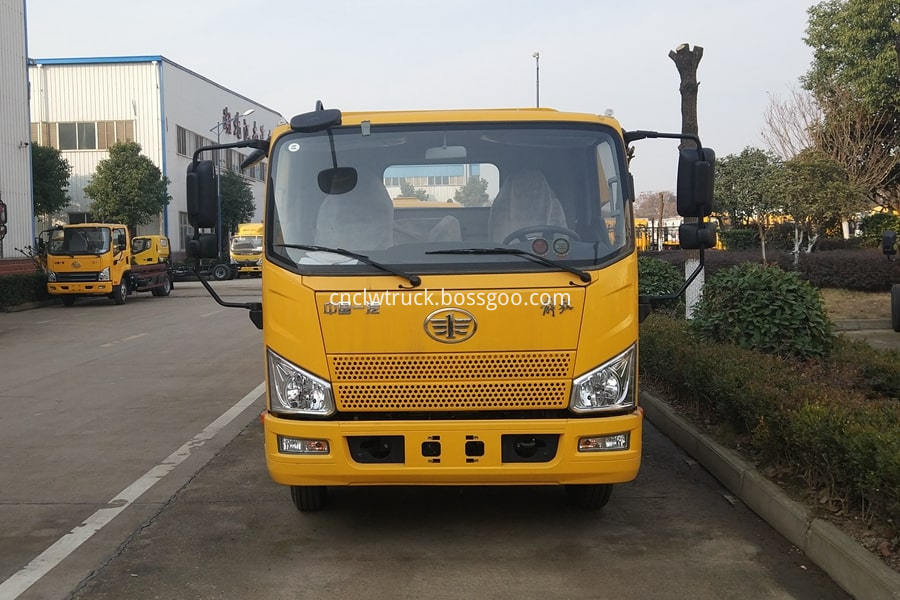

FAW J6F Motorcycle Towing vehicle Picture 2

Motorcycle Towing vehicle 2

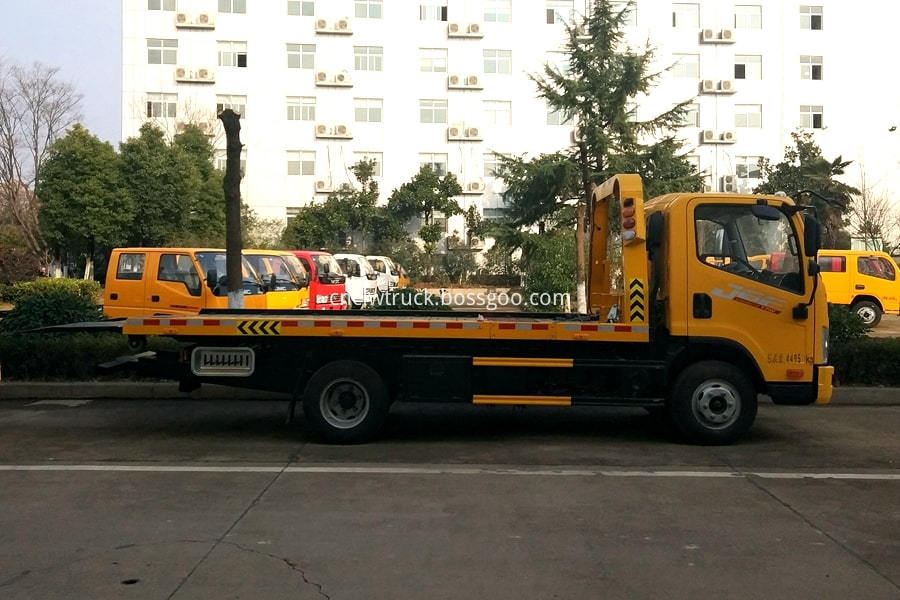

FAW J6F Motorcycle Towing vehicle Picture 3

Motorcycle Towing vehicle 3

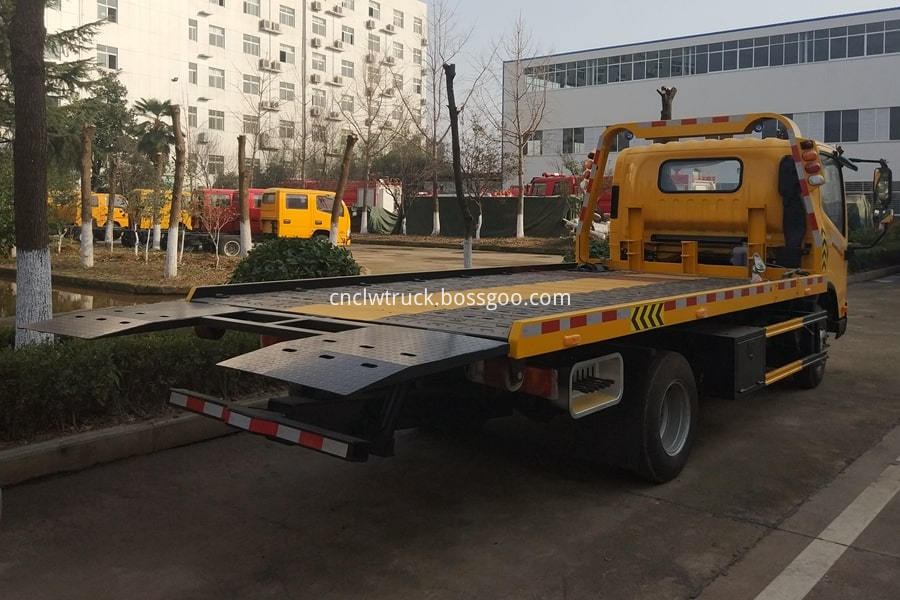

FAW J6F Motorcycle Towing vehicle Picture 4

Motorcycle Towing vehicle 4

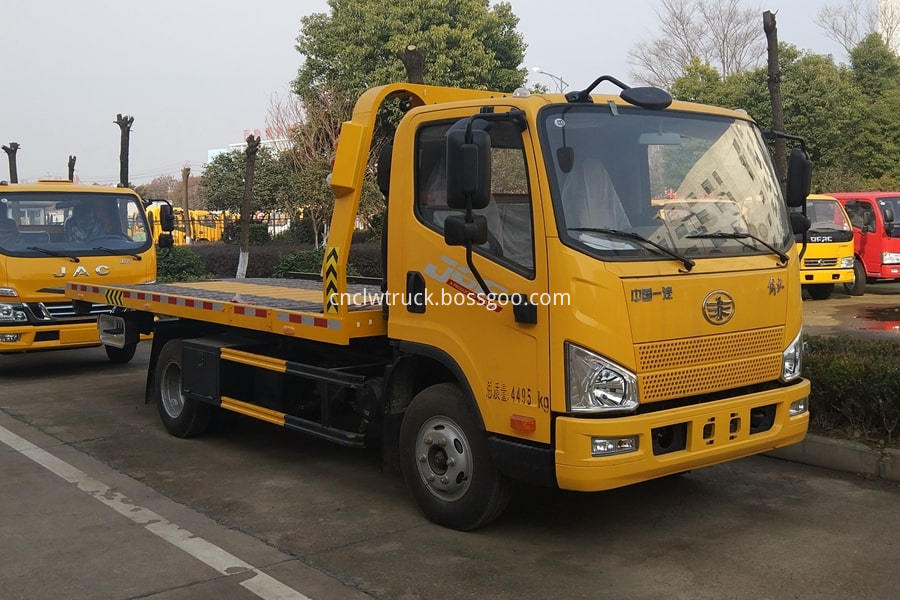

FAW J6F Motorcycle Towing vehicle  Picture 5

Motorcycle Towing vehicle 5

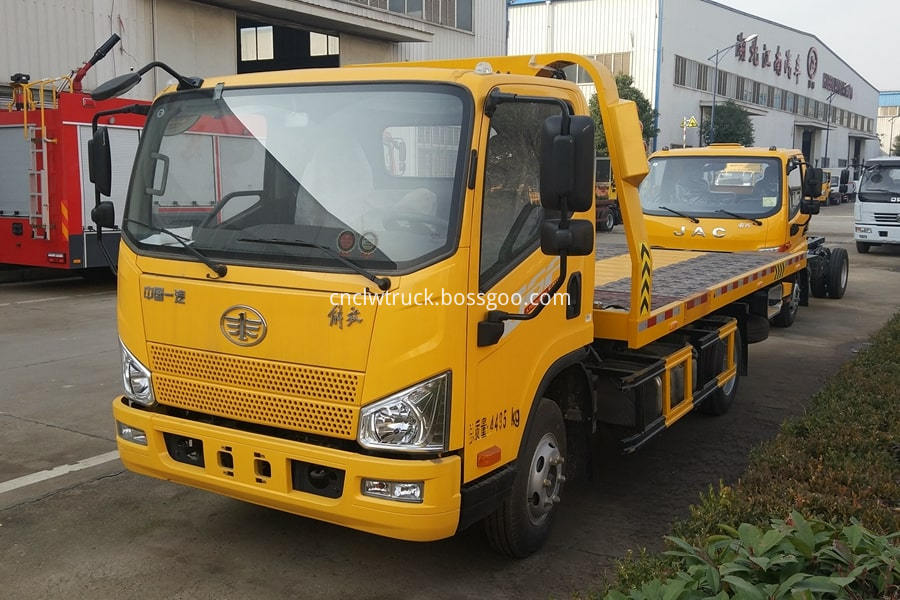

FAW J6F Motorcycle Towing vehicle Picture 6

wheel lift towing vehicles details 1

FAW J6F Motorcycle Towing vehicle Details Picture 1

wheel lift towing vehicles details 2

FAW J6F Motorcycle Towing vehicle  Details Picture 2

wheel lift towing vehicles details 3

FAW J6F Motorcycle Towing vehicle  Details  Picture 3

wheel lift towing vehicles details 4

 FAW J6F Motorcycle Towing vehicle Details  Picture 4

VEHICLE PARAMETERS :

VEHICLE  PARAMETERS

Vehicle Name

FAW J6F

Road Wrecker

Overall Size

(L*W*H/mm)

5995*2300*2475

GVW

4495kg

Curb Weight

3800kg

Flatbed Size

4.2*2.32m

Hydraulic Pressure Tail Plank Length

1.2m

Towing Capacity of Winch

4T

Lifting Capacity

4T

CHASSIS  PARAMETERS

Chassis Brand

FAW

Wheel Base

3300mm

Chassis Model

CA1045P40K17L1

Drive Model

4X2, LHD/RHD

Axles Nos

2

Tire Spec.

7.00R16

Gearbox

6F,1R

Tire Nos.

6+1(spare)

Engine Model

CA4DD1-13E5

Engine Brand

DACHAI

Displacement

2999ml

Engine Power

135HP

Fuel Type

Diesel

Brake Type

Air Brake

BODY CONFIGURATION

Stand Configuration

4T towing winch, 25m steel wire rope, one pair auxiliary wheel , L-type fork one pair, square sleeve one pair, bundling belt 8units, hook, working light 2units, yellow alarm lamp, tools and accessories

Optional Configuration

Imported parts, tire holder, hand washing device, LED burst flashing light,  full-floor flatbed


Chassis Configurations: FAW J6F Chassis, New Type Single Row Cabin ,  Diesel 135HP Engine, 5 Speed Transmission, Wheelbase 3300mm, 6T Rear Axle, 7.00R16 Tire, ABS, Air Brake, Power Steering , A/C, Electric Windows, Cruise Control System, Central Lock


Top flatbed Configurations:

Towing one by two type, length of flatbed 4.2m, width of flatbed 2.32m, with 1.2m length hydraulic pressure tailboard.


Files with vehicles:

Chassis Certificate, Vehicle Certificate, Proforma Invoice, English Vesion User Manual( any language version avaiable), Quality Warranty Certificate, Country of Original, Or Any other certificates can provide if  contract need.


Motorcycle Towing Vehicle Advantages :

1.  Diesel fuel type, super powerful engine, perfect driving performance, no overhaul  within 100,000km.

2. Wide and high-speed rotary, easy operation, strong load capacity.

3. Unique design, prolonged service life.

4. High quality hydraulic system.

5. Manufacturer directly sale, cheap price with promptly after-sales response.


CHENGLI SPECIAL AUTOMOBILE CO

Need more details of our Motorcycle Towing Vehicle welcome to contact us at any time!
