| Payment Type: | L/C,T/T |
|---|---|
| Incoterm: | FOB,CIF,EXW |
| Min. Order: | 1 Set/Sets |
| Delivery Time: | 15 Days |
Basic Info
Model No.: 12tons Bitumen Spray Truck
Fuel: Diesel
Certification: ISO9000, CCC, CE
Emission Standard: Euro 3
Condition: New
Chassis Brand: DONGFENG
Additional Info
Packaging: Nude packing,Waxing before shipping
Productivity: 30000sets/year
Brand: CLW
Transportation: Ocean,Land
Place of Origin: CHINA
Supply Ability: 3000sets/month
Certificate: SGS,ISO9001, CNAS,CCC
HS Code: 8705909990
Port: SHANGHAI PORT,CHINA,ANY MAIN SEA PORT IN CHINA
Product Description
Guaranteed 100% Brand New Dongfeng 12tons Bitumen Spray Truck for Sale
Bitumen Spray Truck is an high-tech product which can spread emulsified asphalt, fluxed asphalt, oil refining asphalt, heated asphalt, heavy traffic paving asphalt and high viscosity modified asphalt (vehicle with high configuration). The product has been widely used in highway construction and road maintenance projects. It can be used for construction of upper and lowers seal coat, prime coat, waterproof layer, bonding layer, bituminous surface treatment, bituminous penetration pavement, fog seal and other projects of different grades of highway pavement. It can also be used for transportation of liquid asphalt or other heavy oil.
Bitumen Spray Truck is basically made up of chassis, asphalt tank, asphalt pump, spray system, heat conduction oil heating system, hydraulic system, electric control system, distribution control system and rinsing series. And the distribution system has two main types: hand-controlled and computer-controlled.
VEHICLE PICTURES :

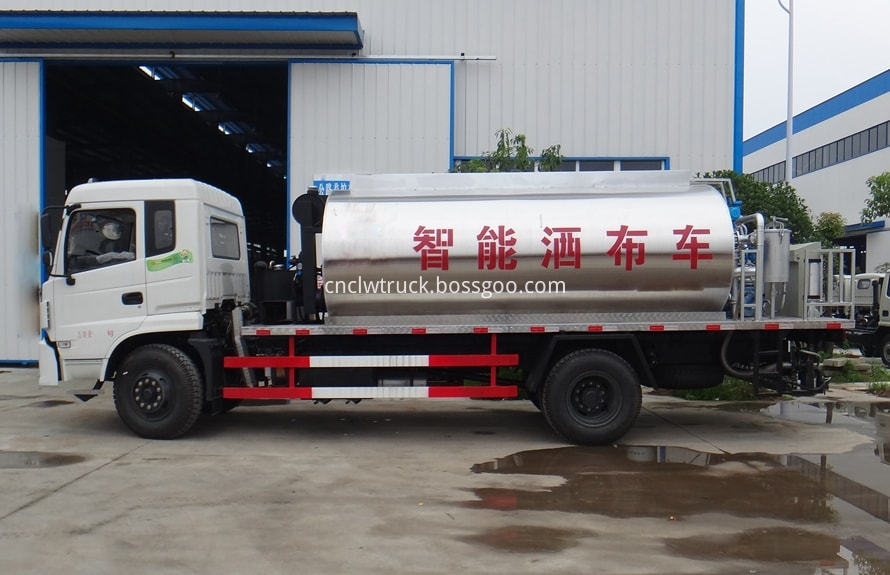

Dongfeng 12tons Bitumen Spray Truck Picture 1

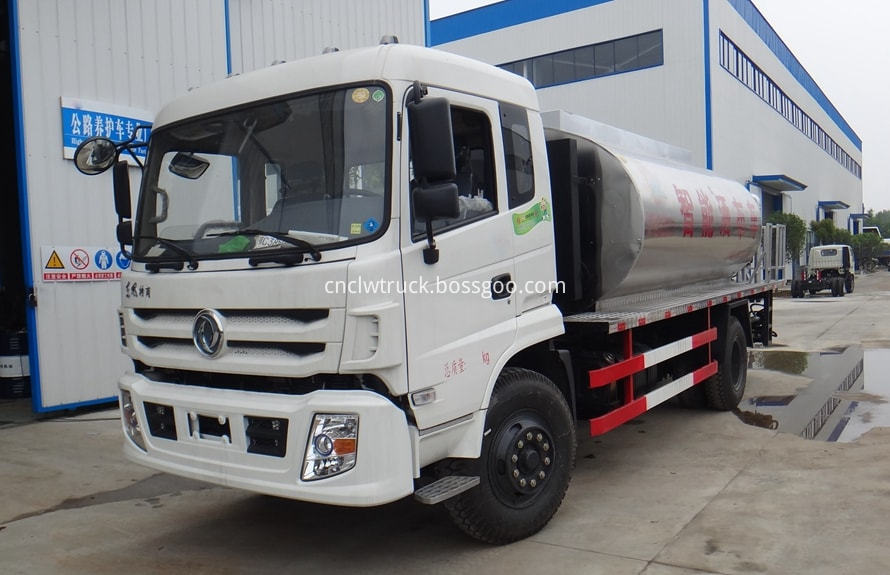

Dongfeng 12tons Bitumen Spray Truck Picture 2

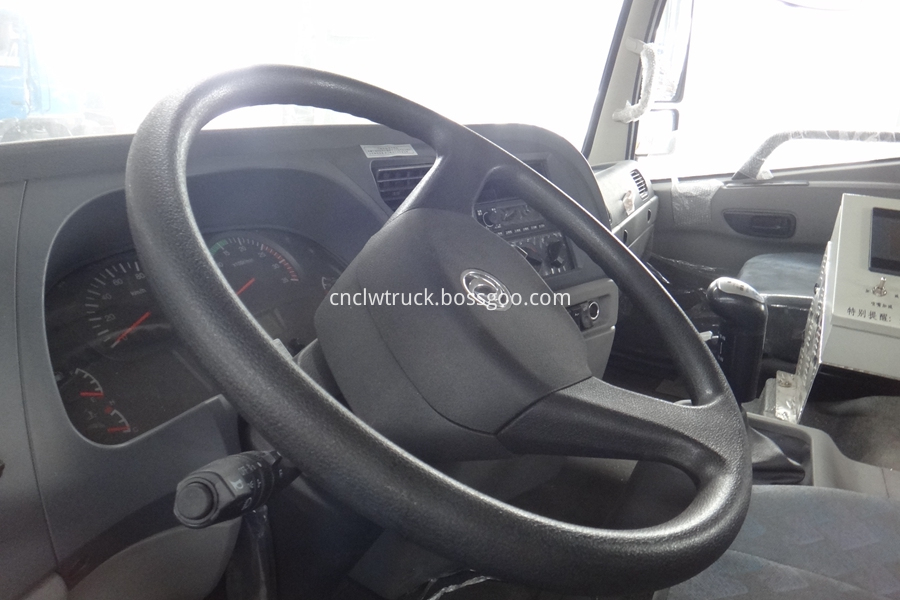

Dongfeng 12tons Bitumen Spray Truck Picture 3

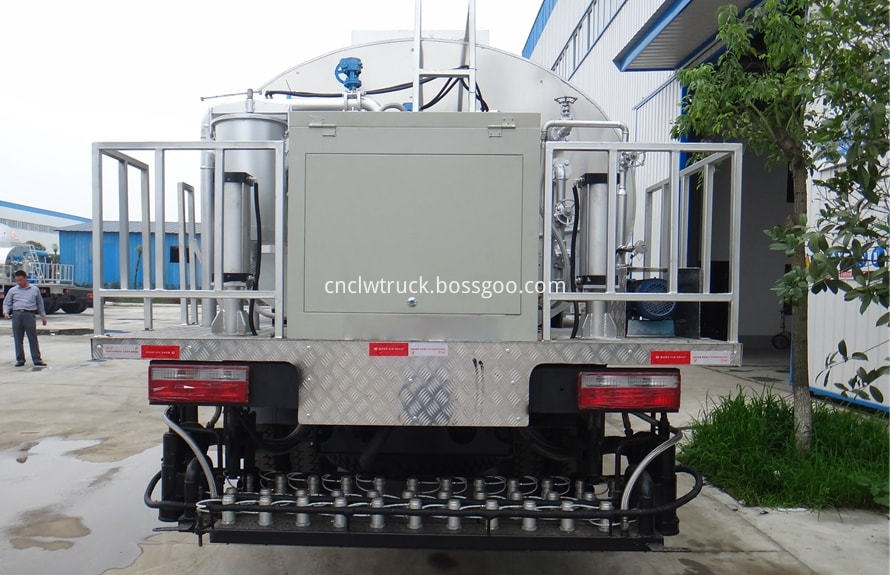

Dongfeng 12tons Bitumen Spray Truck Picture 4

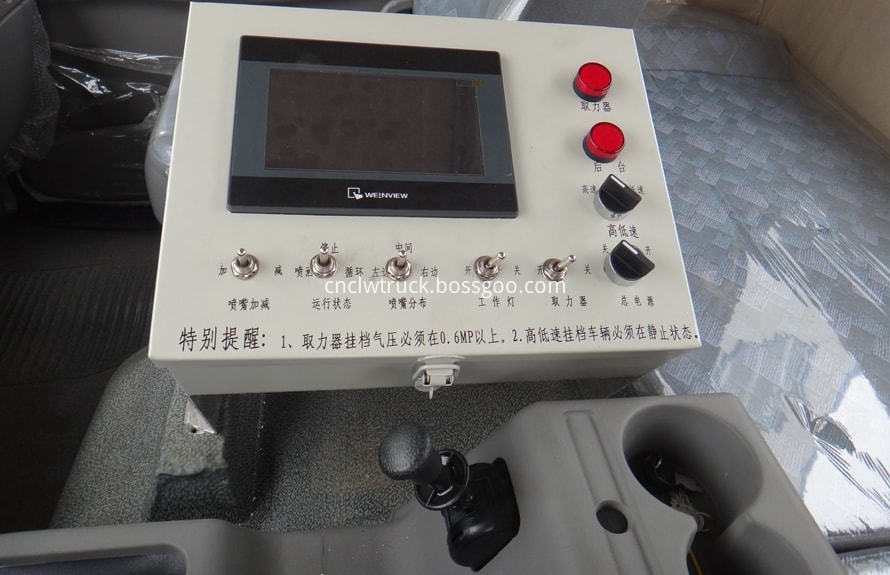

Dongfeng 12tons Bitumen Spray Truck Picture 5

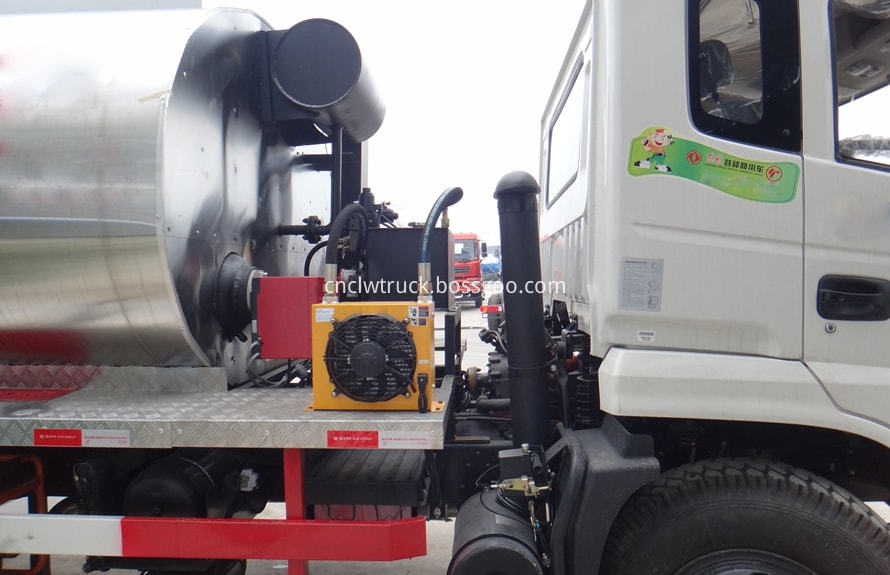

Dongfeng 12tons Bitumen Spray Truck Picture 6

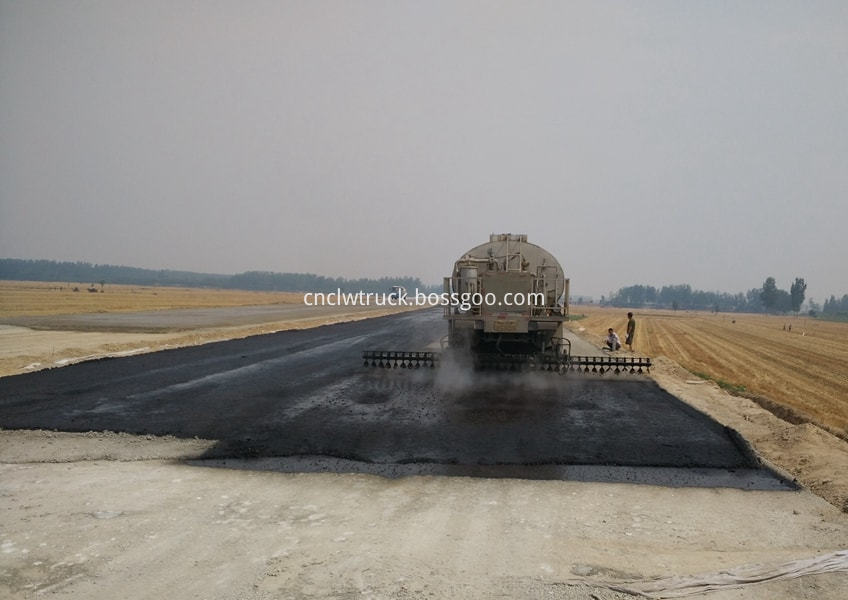

Dongfeng 12tons Bitumen Spray Truck At Work
VEHICLE PARAMETERS:
|
Items |
Unit |
Reference Value |
|
Rated Tank Capacity |
L |
12000 |
|
Spray Width |
mm |
4500-6000 |
|
Spray Density |
Kg/㎡ |
0.2-3.0 |
|
Max Speed |
Km/h |
90 |
|
GVW |
kg |
15900 |
|
Rated Load Weight |
kg |
6005 |
|
Curb Weight |
kg |
9700 |
|
Engine Power |
kw |
Cummins 132 |
|
Gearbox |
/ |
6F 1R |
|
Fuel Type |
/ |
Diesel |
|
Emission Standard |
/ |
Euro 5 |
|
Wheelbase |
mm |
4500 |
|
Tire Spec |
/ |
10.00R20 |
|
Vehicle Size |
mm |
8750*2500*3250 |
|
Items |
Parameters |
|
Chassis Brand |
DONGFENG |
|
Chassis Model |
EQ1166 |
|
Bitumen Tank Material |
Carbon steel covered with stainless steel |
|
Spray Medium |
Hot asphalt, emulsified asphalt, rubber asphalt(need customized) |
|
Asphalt Pump |
QGB950 (International Brand Optional) |
|
Spray Pipe |
4.5m(or 6m) |
|
Hand Held Spray Gun |
Manual, with 5m pipe |
|
Heat-transfer Oil Pump |
RY65-40 (International Brand Optional) |
|
Generator |
5.5kw |
|
Variable Pump |
CBQ550-L |
|
Hydraulic Motor Of Asphalt Pump |
05-110-BD31 |
|
Heat-transfer Oil Pump |
40-25-160 |
|
Burner |
G20 |
|
Proportional Valve |
EFBG-03-160-HF |
|
Reversing Valve |
Chinese Brand |
|
Overflow Valve |
Chinese Brand |
|
Gas Cylinders |
40L |
|
Air Cylinder |
100*250 |
|
Operation in Cab |
Automatic Computer-Controlled, Germany WST System |
|
Operation at Rear |
Manual, Germany WST System |
|
Temperature Control System |
Omron(Japanese Brand) |
|
Multifold Solenoid Valve |
4 units |
Features of Bitumen Spray Truck:
----- Can spread all kinds of asphalt: high viscosity modified asphalt, hot asphalt,
emulsified asphalt
-----Asphalt spreading quantity (kg/m2) : 0.2-3
-----The spraying width can be freely adjusted, and each nozzle can be controlled separately, with the maximum spraying width up to 6000mm
-----Asphalt evenly spread, unique nozzle design can be used for three overlapping spraying
-----High spraying precision, the whole spraying process is controlled by computer in real time, and the spraying amount is not affected by the change of speed
-----Safe and reliable thermal oil automatic heating system
----- Heat conduction oil on the asphalt pump and nozzle to carry out comprehensive insulation, after spraying, asphalt pump and nozzle do not need diesel cleaning.Purge with high pressure air or circulate with a full range of heat-conducting oil; Insulation, ensure the pipe and nozzle unimpeded
-----The control system adopts modular design.Low failure rate, quick and easy maintenance
-----The standby system is set in the control program and drive device of the whole machine to ensure that automatic spraying can still be carried out when the standby system is started when the main control fails
----- All kinds of spraying requirements can be completed in the cab
-----Flexible hand-held spray gun, can fill the corner of asphalt
-----Excellent insulation performance, average temperature drop ≤20℃/8h
-----Convenient loading and unloading function. In addition to adding asphalt from the tank mouth, hot asphalt can be inhaled and pumped out by itself, and external asphalt can also be pumped and transferred
Similar Keywords:
The bitumen sprayer engine also can be named asphalt distribution truck , asphalt road maintainer, bitumen spray truck, bitumen pressure distributor, asphalt road maintenance vehicle, asphalt distribution tank truck, asphalt distribution tank truck pictures, videos, pictures, asphalt distribution truck manufacturers etc..
Need more details of our Bitumen Spray Truck welcome to contact us at any time & will respond in 24hours.
