| Payment Type: | L/C,T/T |
|---|---|
| Incoterm: | FOB,CIF,EXW |
| Min. Order: | 1 Set/Sets |
| Delivery Time: | 25 Days |
Basic Info
Model No.: CLW5162GXWT5
Emission Standard: Euro 3
Drive Wheel: 4x2
Transmission Type: Manual
horsepower: 150-250hp
Certification: CCC, ISO9000
Payload: 20T
Fuel: Diesel
Engine Type: 4 Stroke
Condition: New
Tank Volume: 9000L
Chassis Brand: DONGFENG
Vehicle Color: Red, Yellow, Blue Optional
Additional Info
Packaging: Nude packing,Waxing before shipping
Productivity: 30000sets/year
Brand: CLW
Transportation: Ocean,Land
Place of Origin: CHINA
Supply Ability: 3000sets/month
Certificate: SGS,ISO9001, CNAS,CCC
HS Code: 8705909990
Port: SHANGHAI PORT,CHINA,Any Main Port in China
Product Description
Guaranteed 100% Brand New Dongfeng 10000litres sewage suction truck
Sewage suction truck (also called septic suction truck, sewage vacuum tank truck, sewer cleaning truck, sewage tanker, sewer truck, cesspit emptier, gully emptier, vacuum truck, gully emptier, waste vacuum tanker, vacuum tanker, sewage truck) is used to collect, transport and discharge liquid such as dirty water, sludge, septic, crude oil, and solid stuff such as small stones, bricks as well. It is suitable for cleaning the sewer, cesspit, cesspool, gully, etc. It is widely used in environment and sanitation field.
The tank of a sewer vacuum truck could be hydraulic lifted and the rear door of tank could be hydraulic opened for completely tipping sewage and solid stuff.
We are professional liquid waste truck manufacturer in china with best quality, cheap price and depandable after-sale services. Our waste disposal truck have been exported to Southeast Asia, Vietnam, Laos, Myanmar, South Africa, South America, Paraguay, Tansania and more than 40 countries.
SPECIFICATIONS :
| Sewage Suction Truck (10,000 Litres) | ||
| General | Vehicle Brand | CLW |
| Chassis Brand | DONGFENG | |
| Overall Dimension | 8000 * 2500 *3250 mm | |
| GVW / Kerb Weight | 15,800 kg / 7,400 kg | |
| Cab | Cab Capacity | 3 persons allowed, with one sleeper |
| Air Conditioner | W/ air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | Cummins | |
| Power | 170 Ps (125 KW) | |
| Displacement | 5900 ml | |
| Emission Standard | Euro III | |
| Chassis | Drive Type | 4X2, LHD/RHD |
| Transmission | 6speed gear box, no overhaul within 500,000km | |
| Wheelbase/No. of axle | 4500 mm / 2 | |
| Tyre Specification | 9.00-20 | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 95 km/h | |
| Paint | Metallic paint | |
| Superstructure | Tank Capacity | 10,000 Litres |
| Tank Material | Carbon steel | |
| Suction Head | 7m | |
| Vacuum Pump |
Highly efficient, vacuum rate 93%, quick suction and discharge, suction lift 6m. |
|
| Hose | High quality, wire strengthened hose | |
| Rear door can be hydraulic opened for complete discharge of solid stuff. | ||
| All standard accessories: inlet, discharge, antifill valve--.. | ||
| Optional |
** Tank material could be carbon steel, stainless steel..-.. ** Vacuum pump could be imported brand-- |
|
1. Parts Instruction of Vacuum Sewage Suction Truck
2. Working Situation of Vacuum Sewage Suction Truck
VEHICLE PICTURES :

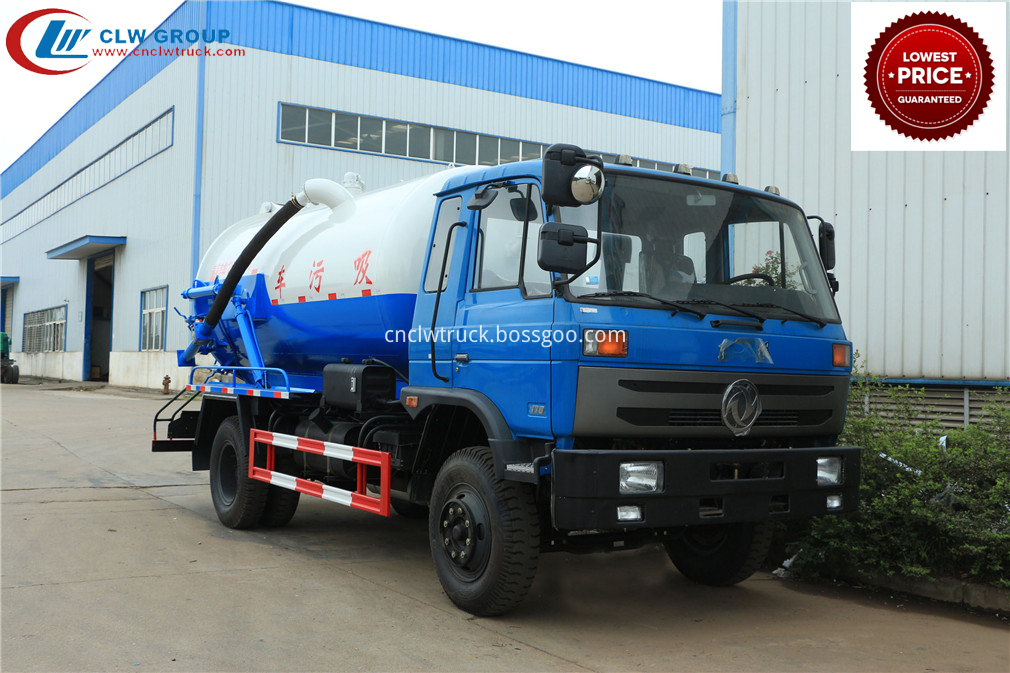

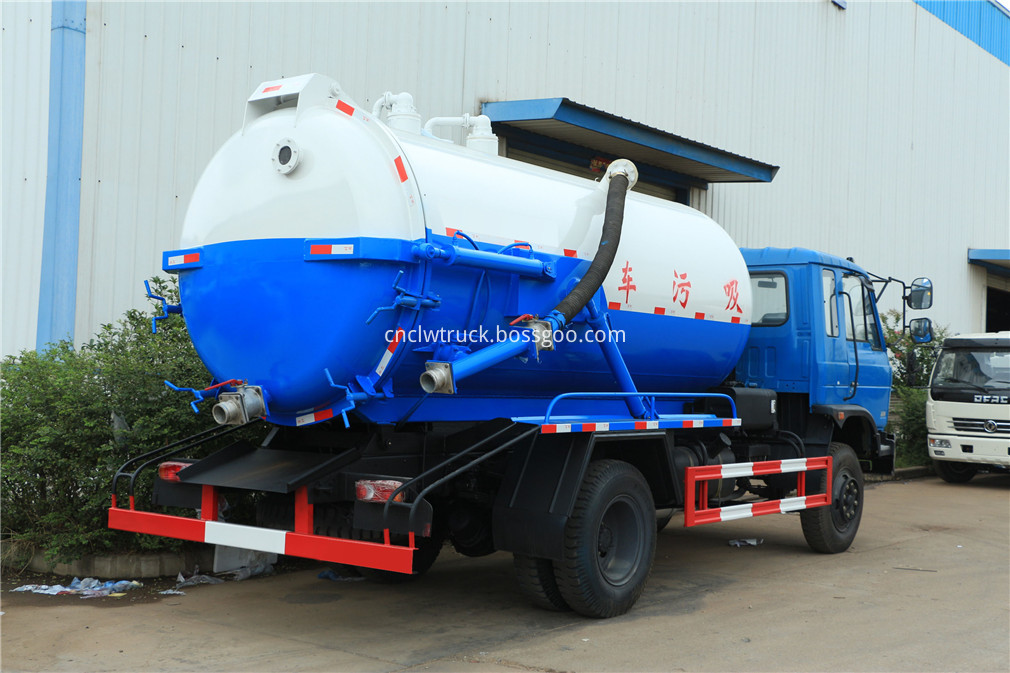

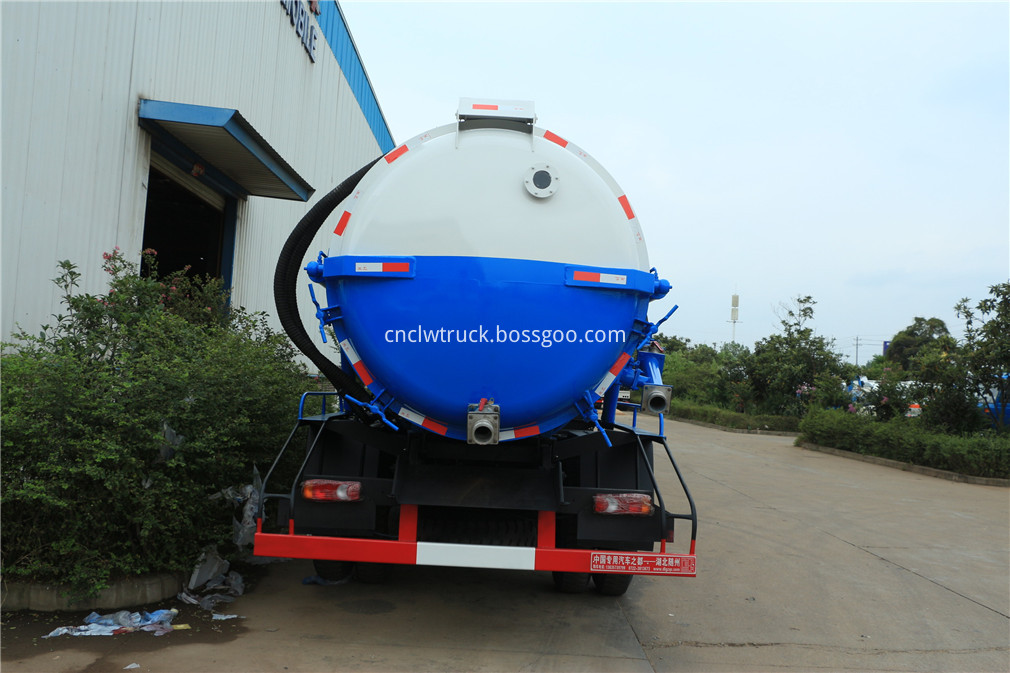

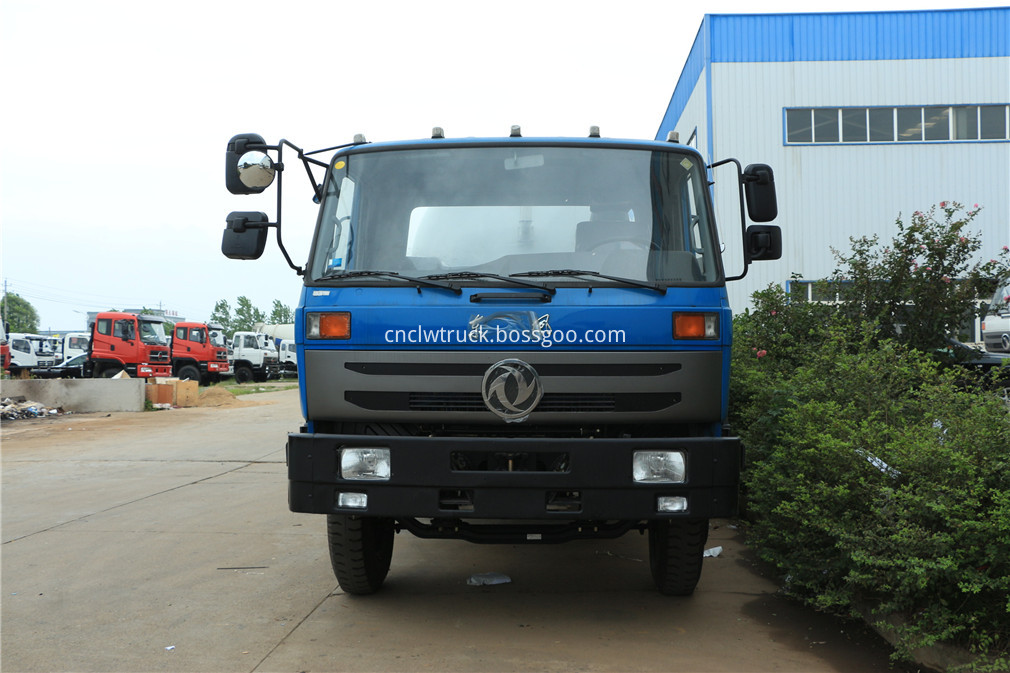

3. Pictures of Sewage Suction Trucks
Need more details of our SEWAGE SUCTION TRUCK welcome to contact us at any time!
